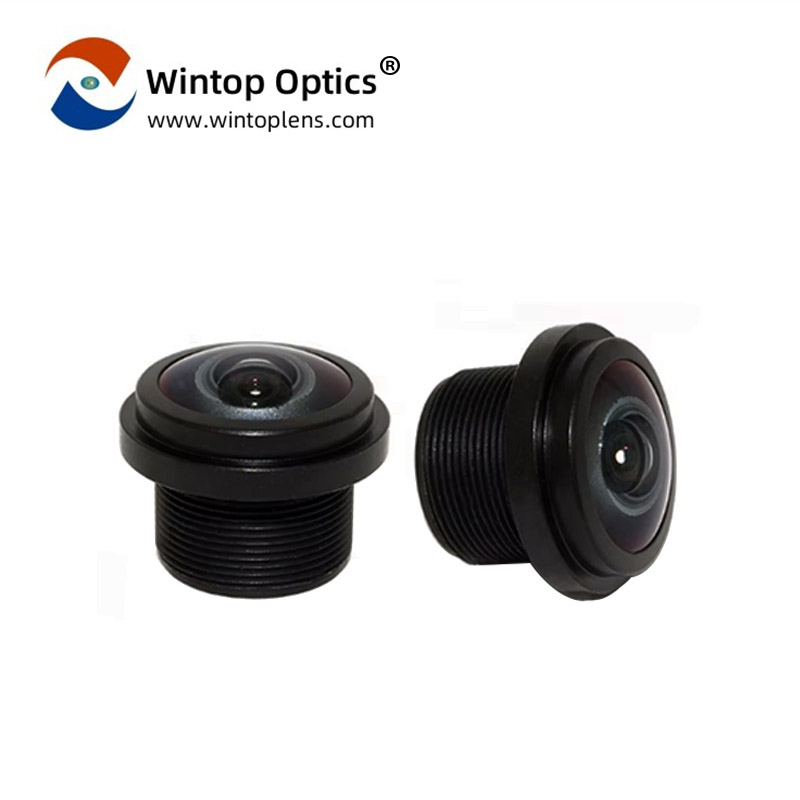

Lens Supplier F2.4 200 Degree High Definition Car Panoramic Lens 1/2.9 "For Fisheye Lens YT-6031-C1

  • 200 angle fisheye lens
  • 1/2.9 "panoramic lens
  • 6G structure composition lens
  • Item No :

    YT-6031-C1
  • Sensor :

    1/2.9''
  • F/NO. :

    2.4
  • EFL :

    1.51
  • Optical TTL :

    15.15
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    200/118/200
  • Structure :

    6G
Learn more about the parameters of the YT-6031-C1 fisheye lens
SENSOR SIZE
1920*1080
WAVELENGTH 400~700
FOCAL LENGTH (EFL) 1.51mm
F/NO (INFINITE)  2.4
BACK FOCAL LENGTH 3.44mm
FLANGE BACK LENGTH 2.24mm
FIELD OF VIEW(D) 200
FIELD OF VIEW(H) 200
FIELD OF VIEW(V)  118
TV DISTORTION -43%
THREAD SIZE M12*P0.5
STRUCTURE
6G
CRA

13°

WAVEIENGTH

 Tavg>=88% @420-600 nm

T=50% @650nm

Tavg<=3% @ 700-1000 nm

T<5% @1050 nm



Good perspective effect:

YT-6031-C1 has a strong perspective effect. Able to make the object being photographed a huge aperture near the center of the lens, while the object away from the center is reduced, thus creating a unique perspective effect. "Fisheye" effect. This special perspective effect can enhance a sense of drama and art to a photo or video.
Interesting distortion effects:

Due to the corrective nature of the fisheye lens, it introduces some distortion effects, such as spherical distortion and line bending. These distortions can add a special creativity and variation to a photo or video, creating an interesting visual effect.

Explore creative possibilities:

YT-6031-C1 provides a different visual experience from traditional lenses, which can break the conventional shooting style and inspire the creative inspiration of photographers or videographers. It can help people try novel compositions, the difference between foreground and background, close-up theme shooting, etc., to expand the creative possibilities of photography and videography.
