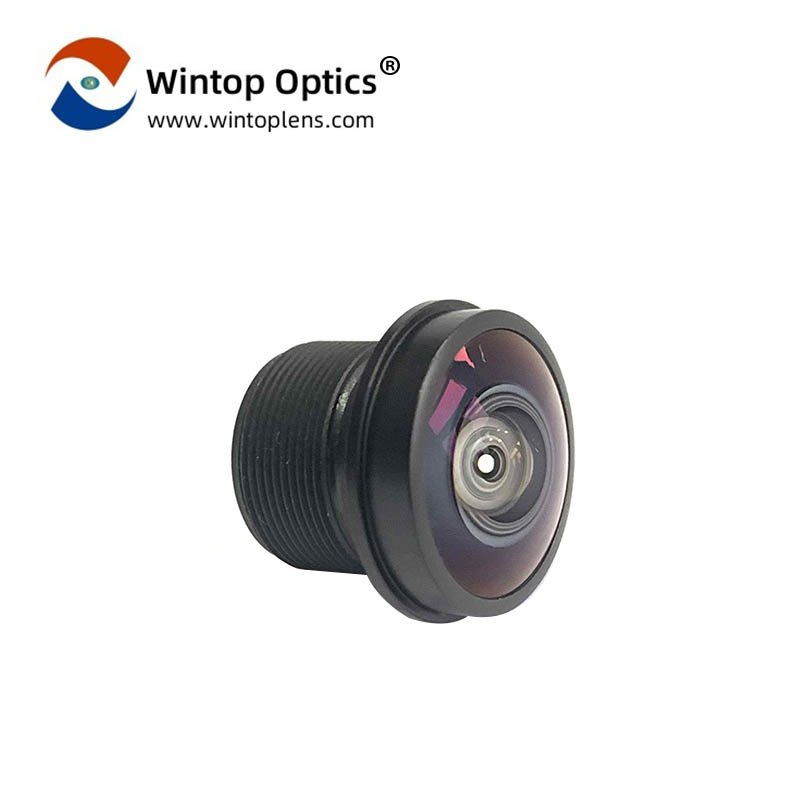

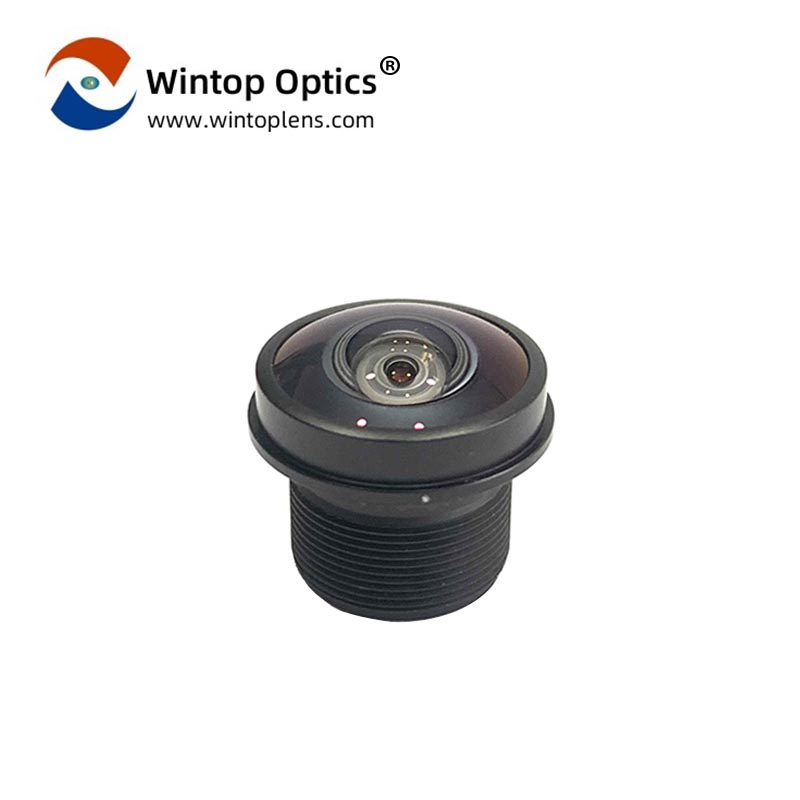

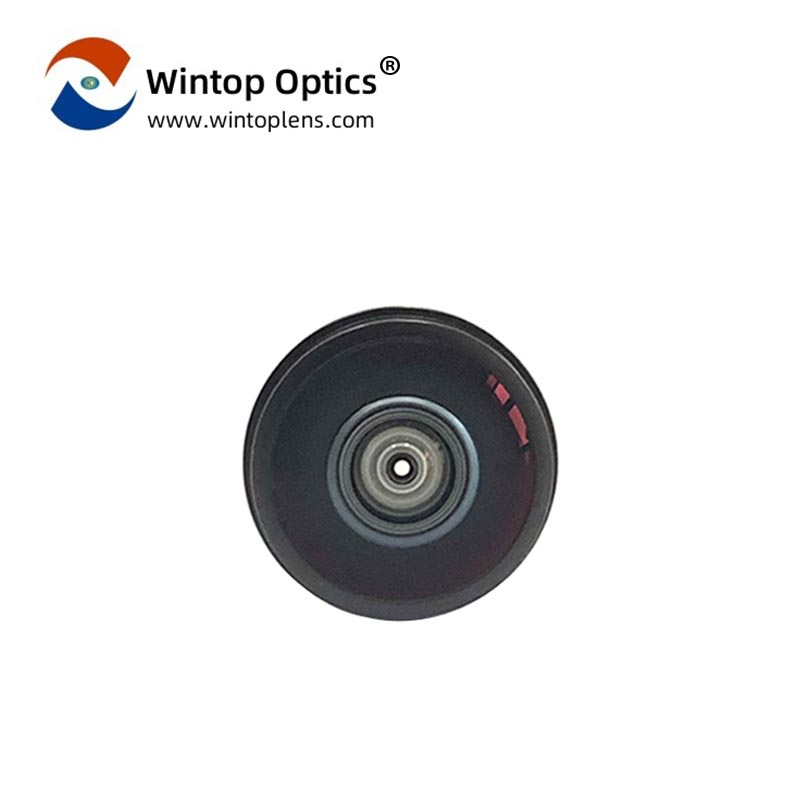

Premium 360-Degree Starlight Fisheye Lens YT-7615-A1

  • F1.8 Extra-Large Aperture Starlight Lens for Low-Light Performance
  • 1.34mm Focal Length for Wide Field of View
  • IP69K Waterproof and Dustproof Rating for Top Durability
  • 360° Fisheye Lens for Smooth Surveillance
  • Item No :

    YT-7615-A1
  • Sensor :

    GC2053
  • F/NO. :

    1.8
  • EFL :

    1.34mm
  • Optical TTL :

    16.78
  • Thread Size :

    m12*P0.5
  • FOV(H/V/D) :

    196°/120°/200°
  • Structure :

    2G4P+IR filter



YT-7615-A1: The Premium 360-Degree Starlight Fisheye Lens



know more about YT-7615-A1 Car Camera Lens parameters
MAX Img-Circlemm ∅5.65
EFLmm 1.34
F/NO. 1.8
Optical TTL 16.78
Mechanical TTL 16.78
BACK FOCAL LEN GTH 3.10
FLANGE BACK LENGTH 2.41
Optical DISTORTION <- 136%
RELATIVE ILLUMINATION > 38%
CRA 11.5°
Pixel Size (μm) 2.8*2.8
Storage At Temperature -40°C/+ 85°C
Recent Camera Distance 0.2
Infrared No
WAVELENGTH @420~600nm Tavg≥90%
@65010nm T=50%
Dust Level IP69K
STRUCTURE 2G4P+ IIR



Elevate your vehicle's perception capabilities with the YT-7615-A1, a premium 360-degree fisheye lens designed to capture the world around your vehicle with unmatched clarity and precision. Here are the standout features that make this lens an essential upgrade for any vehicle's surveillance system:

F1.8 Extra-Large Aperture Starlight Lens for Exceptional Low-Light Performance


The YT-7615-A1 is equipped with an F1.8 extra-large aperture, which is a starlight lens renowned for its ability to perform exceptionally well in low-light conditions. This ensures that your vehicle's camera system captures high-quality images even during nighttime or in poorly lit environments, enhancing safety and situational awareness.

1.34mm Focal Length for Ultra-Wide Field of View


This lens features a 1.34mm focal length, which is optimized for an ultra-wide field of view that covers every angle around your vehicle. This expansive perspective is crucial for 360-degree surveillance, ensuring comprehensive coverage and reducing blind spots for a safer driving experience.

IP69K Waterproof and Dustproof Rating for Ultimate Durability


Built to withstand the harshest conditions, the YT-7615-A1 boasts an IP69K rating, making it both waterproof and dustproof. This robust lens is designed to maintain optimal performance regardless of the environment, ensuring reliable operation in all weather conditions and road scenarios.

Automotive-Grade 360-Degree Fisheye Lens for Seamless Surveillance


Specially crafted as a car-regulation 360-degree fisheye lens, the YT-7615-A1 is engineered to meet the rigorous demands of automotive applications. Its design ensures long-lasting performance and clear imaging, making it perfect for continuous vehicle monitoring and recording.


Optimized Lens Imaging Circle of 5.65mm with Minimal Vignetting


The lens's imaging circle measures 5.65mm, which is optimized to work seamlessly with the matching chip and provide images with minimal vignetting. This ensures that the captured images are uniformly illuminated and free from dark corners, resulting in a clear and consistent view of your surroundings.

Compatibility with GC2053 Sensor for High-Definition Imaging


The YT-7615-A1 is perfectly matched with the high-performance GC2053 sensor, which features a 1/2.9'' format. This combination delivers high-definition images with exceptional clarity and detail, providing a panoramic view that covers over 200° both horizontally and diagonally.



In Summary, The YT-7615-A1 is the epitome of automotive imaging technology, offering a combination of advanced features that make it the ideal choice for vehicles seeking the highest level of surveillance and safety. Its starlight capabilities, ultra-wide field of view, and robust construction ensure that your vehicle is equipped to handle any situation with confidence. With the YT-7615-A1, you can drive assured, knowing that your surroundings are under constant, clear surveillance.
