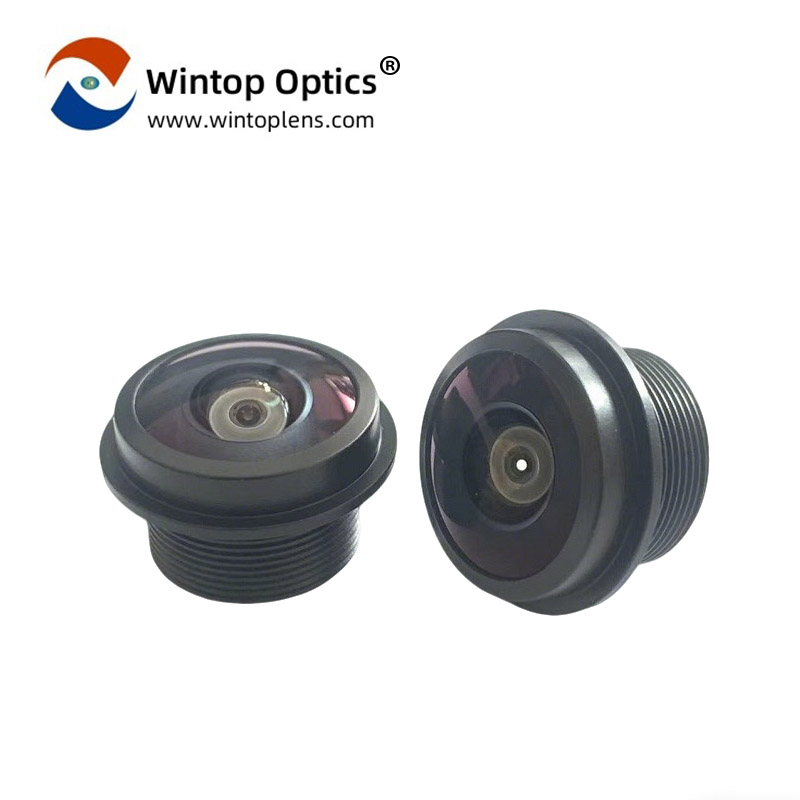

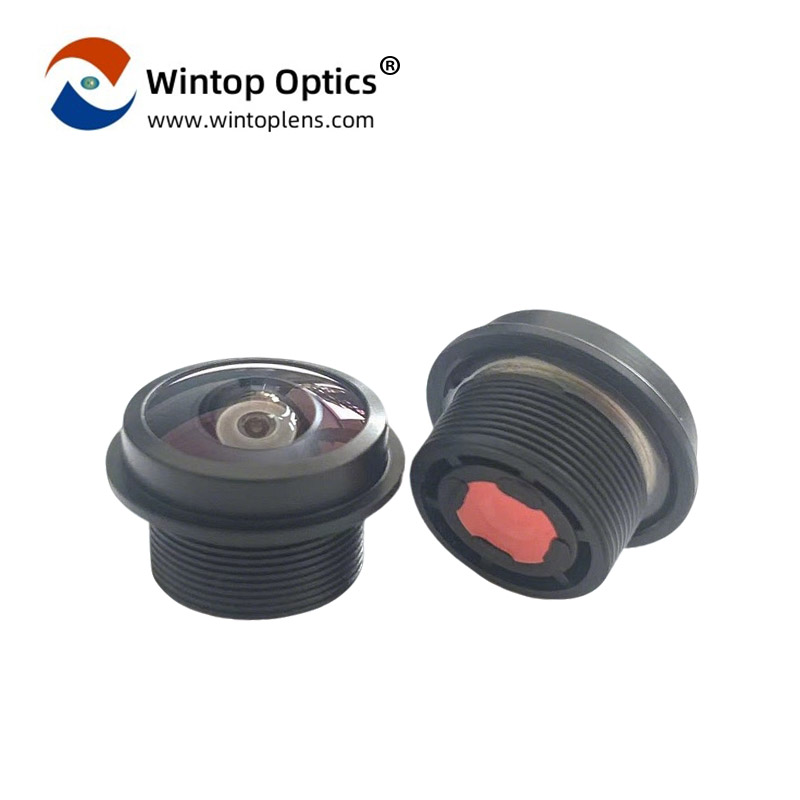

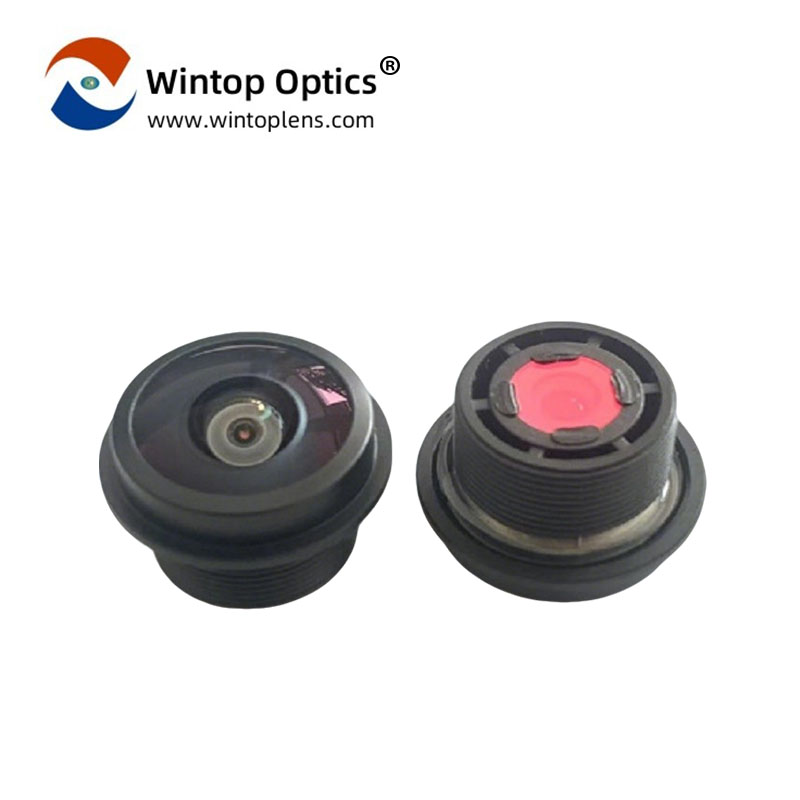

2MP Car Surround View Camera Lens YT-7009P-E1

  • Lenses Factory 1/4" 200 degree F/2.2 ir camera lens
  • 2MP car surround view camera lens
  • FOV V 200 car surround wide lens
  • Item No :

    YT-7009P-E1
  • Sensor :

    OS02H10
  • F/NO. :

    2.2
  • EFL :

    0.955mm
  • Optical TTL :

    12.74
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    200°/164°/200°
  • Structure :

    1G4P+IIR



YT-7009P-E1: The Ultimate Surround Vision for Heavy-Duty Vehicles



know more about YT-7009P-E1 Car Surround View Camera Lens parameters
SENSOR SIZE OS02H10(1920*1080)
OPTICAL TTL 12.74
WAVELENGTH 420-700nm
FOCAL LENGTH (EFL) 0.955mm
F/NO (INFINITE) 2.2
BACK FOCAL LENGTH 2.80
FLANGE BACK LENGTH 1.94
FIELD OF VIEW(D)  >200°(∅6.38)
FIELD OF VIEW(H) >200°(∅5.57)
FIELD OF VIEW(V)  164°(∅3.13)
TV DISTORTION
-45%
CHIEF RAY ANGLE 23°
RELATIVE ILLUMINATION
>61%
Recent Camera Distance M12*P0.5
STRUCTURE

1G4P+IIR

IR FILTER SPEC.(Built-in,Others available)

Tavg>=88% @420-610 nm

T=50% @650±10nm

Tavg<=3% @700-1000 nm

T<5% @1050 nm



Introducing the YT-7009P-E1, a revolutionary truck surround view camera lens engineered to significantly reduce blind spots and enhance safety for heavy-duty vehicles. With an F2.2 aperture, this lens optimizes light intake to ensure clear and detailed imaging, even in low-light conditions, providing drivers with a comprehensive view of their surroundings.


Optimized for OS02H10 CMOS Sensor with Two Million Clear Pixels


Crafted to perfectly match the OS02H10 CMOS sensor, the YT-7009P-E1 delivers two million clear pixels with a 1920*1080 resolution. This high-quality imaging ensures that every detail is captured with precision, allowing for better situational awareness and decision-making on the road.

Ultra-Wide Fisheye Lens for Unmatched Field of View


The YT-7009P-E1's ultra-wide fisheye lens boasts a massive 200° diagonal and horizontal field of view, along with a 164° vertical angle. This expansive coverage ensures that no area around the truck is left unmonitored, providing drivers with the confidence to navigate through tight spaces and challenging environments.

Standard M12*P0.5 Mount with Customizable Options


Equipped with a standard M12*P0.5 mount, the YT-7009P-E1 offers seamless integration with a wide range of vehicle systems. For added flexibility, the lens can also be customized to an AA structure, ensuring compatibility with various vehicle configurations.


Hybrid Glass-Plastic Construction for Durability and Performance


The lens structure of the YT-7009P-E1 is a hybrid of glass and plastic, composed of 1G4P lenses. This innovative design combines the high optical quality of glass with the lightweight and durable properties of plastic, ensuring that the lens is both high-performing and resilient.

Enhanced Safety through Surround Vision


The installation of the YT-7009P-E1 surround view camera lens on trucks significantly improves drivers' safety. By providing a 360-degree view of the vehicle's surroundings, drivers can better assess their environment, avoid potential hazards, and make safer maneuvering decisions.

In conclusion, the YT-7009P-E1 is the epitome of heavy-duty vehicle safety technology. Its combination of an ultra-wide fisheye lens, high-resolution imaging, and durable construction makes it the ideal choice for trucking companies and drivers who demand the highest level of safety and visibility. With the YT-7009P-E1, drivers can confidently navigate the road with the assurance that their vehicle is surrounded by a protective shield of clear, comprehensive vision.
