8mp 4k Resolution Module Camera Lens YT-3560-H1

  • Module lenses manufacturer
  • 2024 new Low zero no distortion f2.0 f2.4 m12 lens
  • 8MP 4k resolution module camera lens
  • TOF camera lens
  • Item No :

    YT-3560-H1
  • Sensor :

    OV10653
  • F/NO. :

    2.4
  • EFL :

    5.3mm
  • Optical TTL :

    29.50
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    74°/41°/80.5°



Experience Unparalleled Clarity with the YT-3560-H1 High-Definition Lens from Wintop Optics

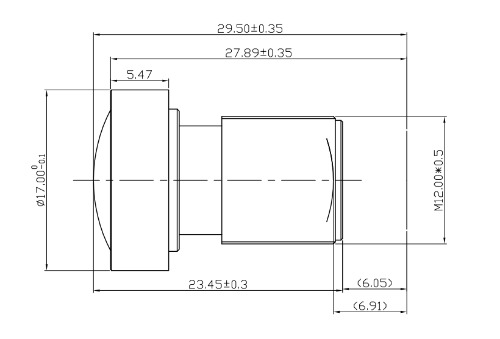

know more about YT-3560-H1 High-Definition Lens parameters
MAX Img-Circle (mm)
Ø9.4
EFL (mm) 5.3
F/NO. 2.4
Optical TTL 29.50
Mechanical TTL 29.50
BACK FOCAL LENGTH 6.91
FLANGE BACK LENGTH 6.05
TV DISTORTION <-2.0%
REL ATIVE ILLUMINATION  >70%
CRA 15.2°
Pixel Size (μm) 4.2*4.2
Storage At Temperature
-20°C~+70°C
Recent Camera Distance 0.2
Infrared

/

WAVEIENGTH

@420~600nm Tavg≥290%

@650土10nm T=50%

Dust Level

IP5X



Enhancing Performance and Elevating User Experience


Wintop Optics is proud to introduce the YT-3560-H1, a high-definition lens meticulously crafted to excel in the realms of video conferencing, facial recognition, and AI-driven robotics. This state-of-the-art lens offers a multitude of advantages that not only boost system performance but also enrich the user experience with its exceptional capabilities.



Rapid Autofocus for Dynamic Applications


The YT-3560-H1 features an optical focal length of 5.3mm and an overall lens length of 23.4mm, designed to work in tandem with Wintop Optics' renowned autofocus technology. This swift and precise focusing is crucial for applications that demand immediate recognition and response, such as facial recognition systems and AI-powered robots.

High-Resolution Imaging for Superior Detail Capture


Pairing with the OV10653 (1820*940) sensor, the YT-3560-H1 achieves an impressive 8-megapixel high-definition resolution. With its high pixel count, this lens captures a wealth of detail, providing a significant advantage in the accuracy of facial recognition systems and enhancing the visual recognition capabilities of AI robots.


Exceptional Color Accuracy for Realistic Visuals


The YT-3560-H1 excels in color reproduction, offering natural and accurate colors that are essential for maintaining a sense of realism in video conferencing and enhancing the visual recognition tasks of AI robots. The lens's color fidelity ensures that every hue is rendered faithfully, contributing to a more engaging and lifelike visual experience.

Seamless Integration with Image Processing Software


Our high-definition lens is compatible with a wide array of image processing software, allowing for seamless integration into various systems, including video conferencing, facial recognition, and AI robotics. This compatibility ensures optimal image processing results, providing users with the best possible visual output.

Durable and Reliable Design for Long-Term Use


The YT-3560-H1 is engineered with a robust M12*P0.5 thread structure, designed to withstand the rigors of long-term operation and diverse environmental conditions. Its durability and reliability are paramount, making it an ideal choice for AI robots and surveillance systems that require continuous operation and steadfast performance.



Choose the YT-3560-H1 for Your High-Definition Needs


Select the YT-3560-H1 from Wintop Optics for a lens that is not only a testament to technological innovation but also a guarantee of enhanced visual clarity and performance. Trust Wintop Optics to deliver the quality and reliability you need for your high-definition applications. Embrace the future of optical technology with the YT-3560-H1.
