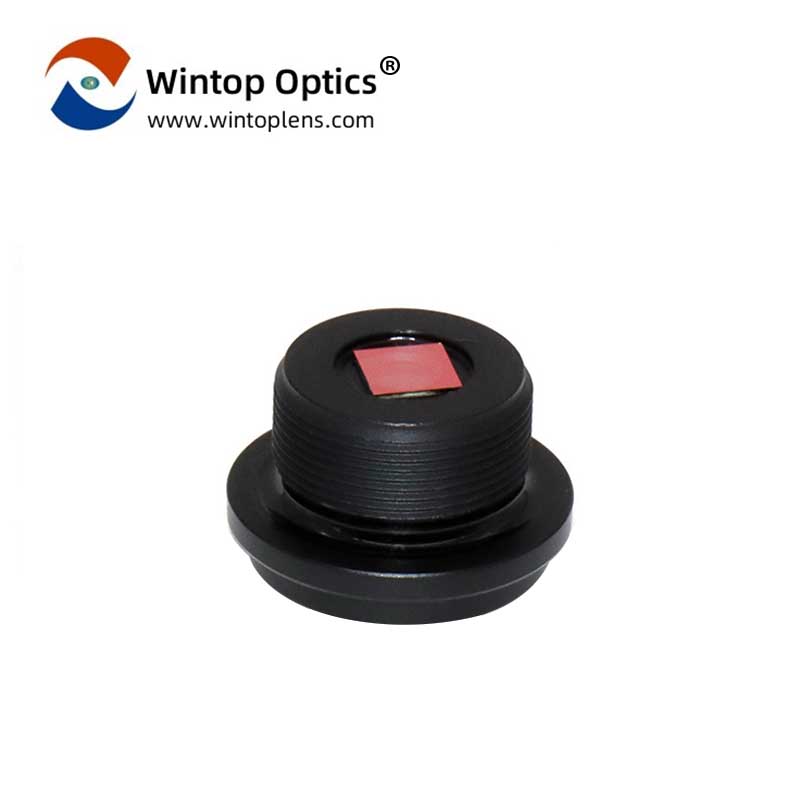

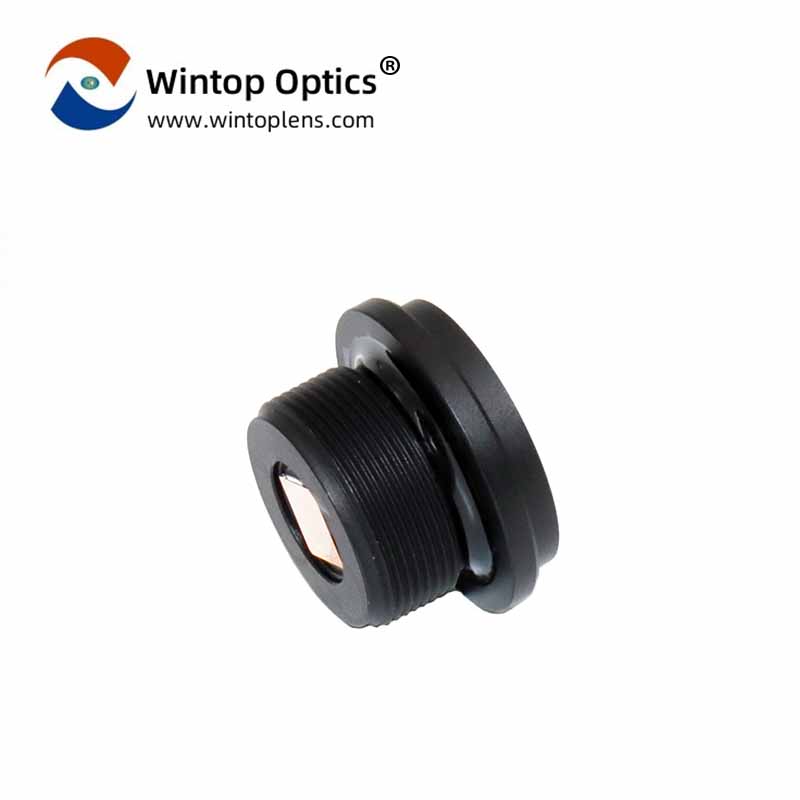

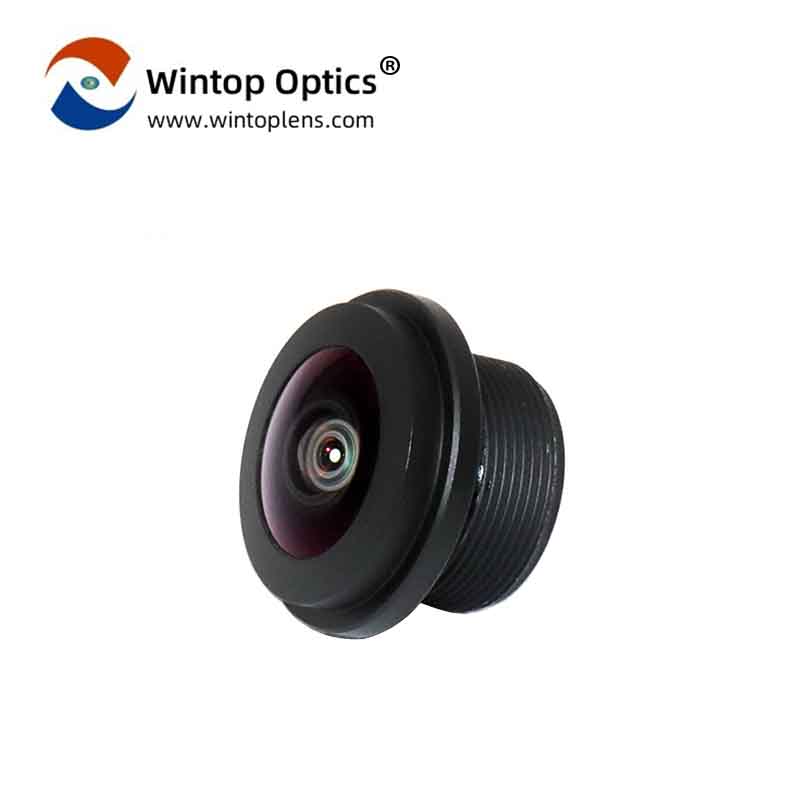

Super Wide-angle High-resolution Surround View Camera Lens YT-7059P-F8-L

  • IP68 1/4 inch dfov 240 degrees lens
  • HD CCTV imx291 sensor lens
  • Super wide angle high resolution camera board lens
  • Good MTF truck panoramic camera lens
  • Item No :

    YT-7059P-F8-L
  • Sensor :

    PV3109K
  • F/NO. :

    2.0
  • EFL :

    1.1mm
  • Optical TTL :

    13.05
  • FOV(H/V/D) :

    200°/106°/200°
  • Structure :

    2G3P+1BlueGlass



 YT-7059P-F8-L: The Ultimate 360-Degree Viewing Experience for Vehicles



know more about YT-7059P-F8-L Car Surround View Camera Lens parameters
MAX Img-Circle(mm) ∅3.69
EFL(mm) 1.1
F/NO. 2.0
Optical TTL 13.05
Mechanical TTL 13.05
Back Focal Length 2.80
Flange Back Length 1.93
Optical Distortion -127%
Relative Illumination ≥63%
CRA 22°
For Pixel Size (μm)
2.8*2.8
Storage Temperature -40℃~+85℃
Operating Temperature
-40℃~+85℃
Recent Camera Distance 0.2
Wavelength

@420~620nm Tavg≥80%

Water Level IP68
Structure
2G3P+1BlueGlass


Unmatched Visual Clarity with F2.0 Aperture


Our YT-7059P-F8-L is designed for vehicle manufacturers seeking the pinnacle of clarity in their 360-degree camera systems. With an F2.0 aperture, this rear-view camera lens captures sharp, well-lit images even in low-light conditions, ensuring safety and reliability on the road.

Precision Engineering for Exceptional Field of View


The YT-7059P-F8-L boasts an optical focal length of 1.1mm and an overall length of 13mm, meticulously crafted to provide an expansive field of view. With a staggering 200° diagonal and horizontal angle, and an impressive 106° vertical angle, this fisheye lens covers every corner, leaving no blind spots.

High-Resolution Imaging with PV3109K CMOS Sensor


Pairing the lens with the high-performance PV3109K CMOS chip, the YT-7059P-F8-L delivers two million clear pixels, offering crisp and detailed images that enhance the driving experience and contribute to advanced driver-assistance systems (ADAS).


Compact and Robust Design


The YT-7059P-F8-L features an AA (All-in-One) structure with a diameter of 11mm and a head size of 13mm, complemented by a flange diameter of 16mm. This compact design ensures seamless integration with a variety of vehicle models without compromising on performance.

Rugged and Waterproof for All-Weather Performance


Built to withstand the rigors of the road, the YT-7059P-F8-L is rated IP68 for water and dust resistance, ensuring reliable operation in all weather conditions. Trust this lens to perform flawlessly, rain or shine.

Innovative Glass-Plastic Hybrid Construction with Blue Glass Filter


The lens is crafted with a glass-plastic hybrid structure, which combines the best of both materials for optimal image quality and durability. The inclusion of a blue glass filter enhances light transmission and reduces glare, resulting in a clearer, more vibrant image.



Commitment to Excellence




As a leading supplier of automotive cameras and lenses, we are dedicated to pushing the boundaries of technology to meet the evolving needs of the automotive industry. The YT-7059P-F8-L is a testament to our commitment to delivering products that enhance safety, convenience, and the overall driving experience.

Conclusion, the YT-7059P-F8-L is not just a lens; it's a statement of quality and innovation. Choose this state-of-the-art 360-degree viewing solution to elevate your vehicle's safety features and provide drivers with an unparalleled field of vision. Experience the difference with YT-7059P-F8-L.
