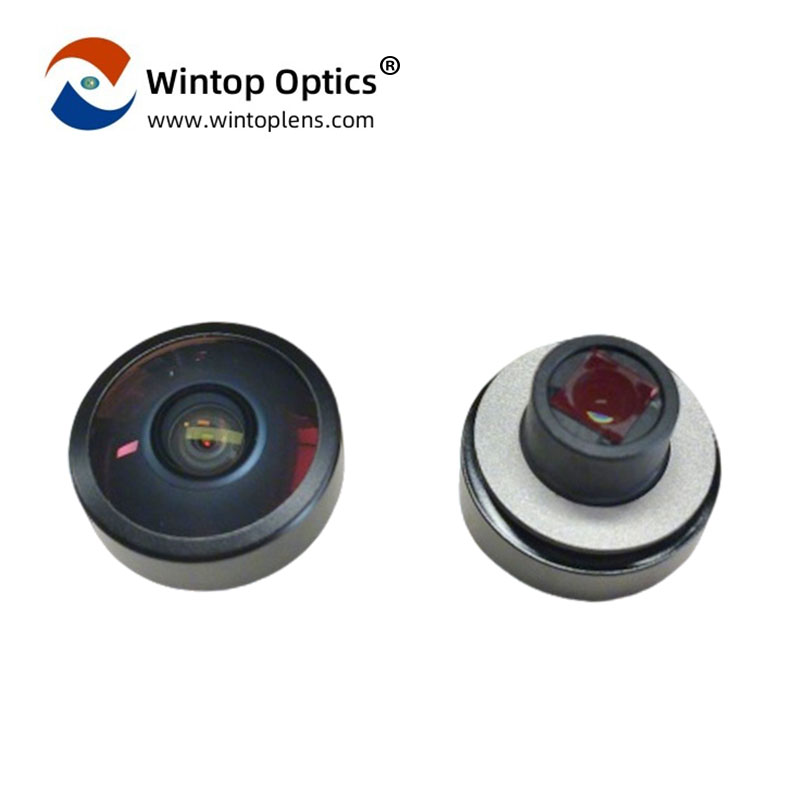

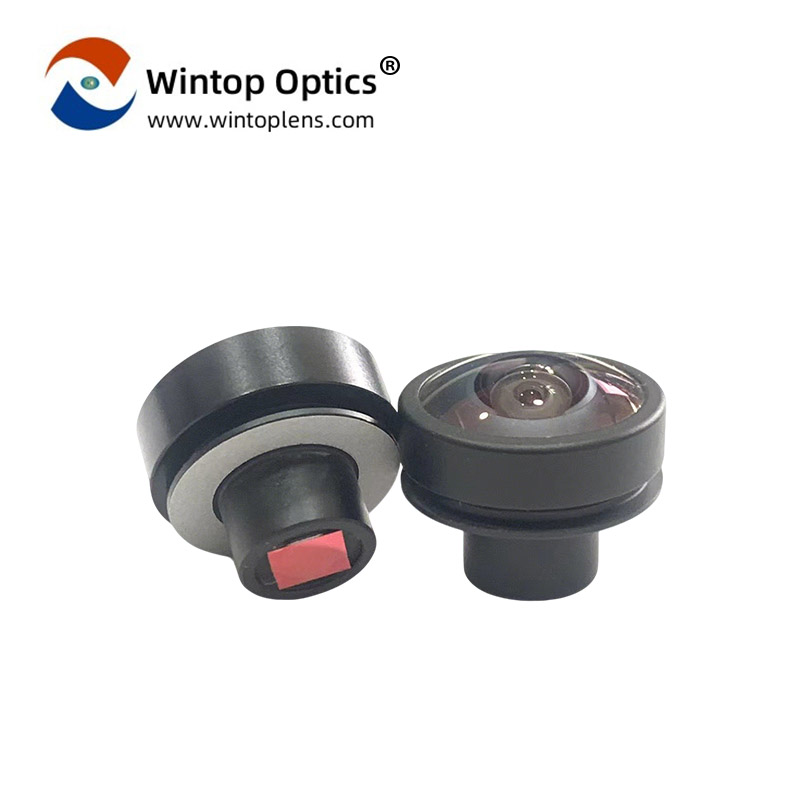

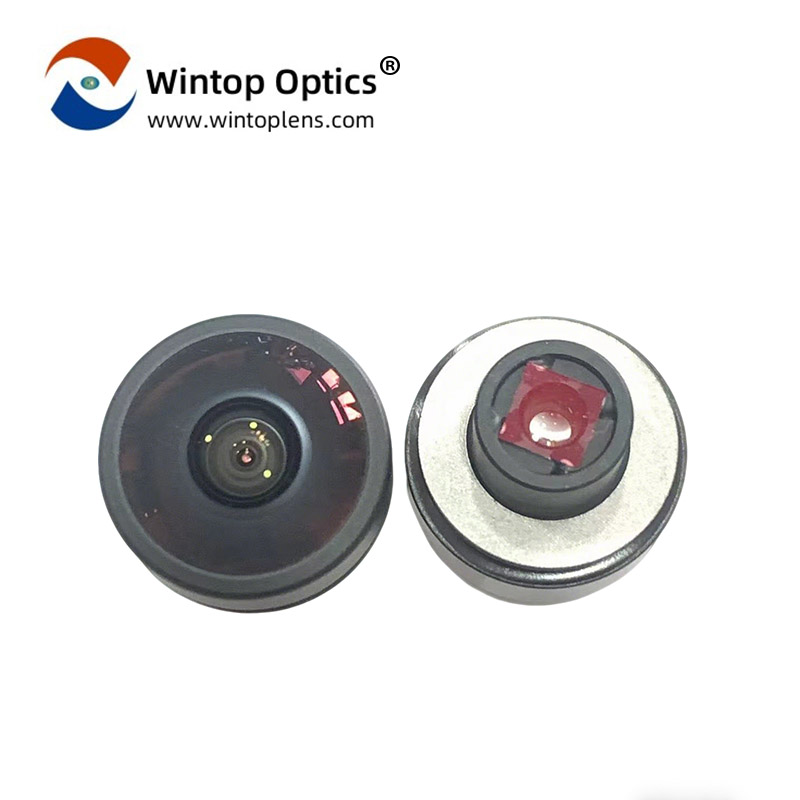

HFOV 200 degree Panoramic Rearview Camera Lens YT-7070-H1-A

  • 360 degree panoramic view car camera F2.0 lens HFOV 200 degree
  • automotive camera lens blind spot monitor lens for car comcorder
  • fisheye wide angle lens for back up reverse parking camera system
  • Item No :

    YT-7070-H1-A
  • Sensor :

    OV7955
  • F/NO. :

    2.0
  • EFL :

    0.98mm
  • Optical TTL :

    16.3
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    196°/151°/200°
  • Structure :

    AA



YT-7070-H1-A: The Ultimate Panoramic Experience



know more about YT-7070-H1-A surround view lens parameters
MAX Img-Circle(mm)
∅4.2
Focal Length(EFL) 0.98mm
F/NO.(Infinite) 2.0
Optical TTL 16.3
Mechanical TTL 16.3
Back Focal Length 2.07
Flange Back Length 1.51
OPT Distortion -137%
Relative Illumination >45%
Storage Temperature -40℃~+85℃
CRA 17.6°
Pixel Size(μm)
6.0*6.0
Recent Camera Distance
0.2
Infrared
NO
Wave Length

420~600nm  T≥90%

650±5nm    T=50%

Dust Level

IP69K



Experience 360-Degree Surveillance with the YT-7070-H1-A Panoramic Rearview Camera Lens

Unparalleled Night Vision with F2.0 Aperture


Introducing the YT-7070-H1-A, the epitome of automotive panoramic surveillance. Engineered with an F2.0 aperture, this rearview camera lens excels in low-light conditions, providing exceptional night vision that ensures your vehicle is always surrounded by a sphere of safety. Say goodbye to blind spots and hello to a clear, comprehensive view of your surroundings.


Optimized Optics for a Seamless View


The YT-7070-H1-A is designed with an optical focal length of 0.98mm and an overall length of 16.3mm, creating a compact yet powerful lens that delivers a seamless panoramic view. With a lens height of 4.2mm, it is meticulously crafted to offer a high-resolution image that is both detailed and expansive, perfect for monitoring the entire perimeter of your vehicle.

High-Resolution Imaging with OV7955 Sensor


Equipped with the OV7955 sensor, the YT-7070-H1-A boasts two million clear pixels with a resolution of 1280*960. This high-resolution imaging capability ensures that every scene is captured with precision, providing drivers with a clear and vibrant image that aids in safe navigation and parking.


Ultra-Wide Viewing Angle for Complete Coverage


The YT-7070-H1-A's ultra-wide viewing angle, with a diagonal and horizontal angle of 200° and a vertical angle of 151°, ensures complete coverage for your vehicle's surroundings. This expansive view significantly reduces blind spots, offering a 360-degree safety cushion that is ideal for both rearview and surround-view monitoring systems.

Robust and Reliable with IP69K Protection


As a car-grade lens, the YT-7070-H1-A is built to withstand the toughest conditions. With an IP69K rating, this lens is not only waterproof and dustproof but also features a high level of gas tightness, ensuring optimal performance even in the most challenging environments. Trust this lens to maintain its integrity and deliver reliable service, no matter where your journey takes you.

Customizable Mounting Options


The YT-7070-H1-A features an AA structure with customizable options, including the conventional M12 mount thread structure. This flexibility allows for seamless integration with a variety of vehicle models and systems, ensuring a secure and stable installation.


In conclusion, The YT-7070-H1-A is not just a rearview camera lens; it's a revolutionary tool for panoramic surveillance that redefines automotive safety. By choosing this state-of-the-art technology, you're equipping your vehicle with a powerful tool that enhances your driving experience and provides an extra layer of safety. Embrace the future of driving with the YT-7070-H1-A – your vehicle's new eyes for a safer, more informed drive.
