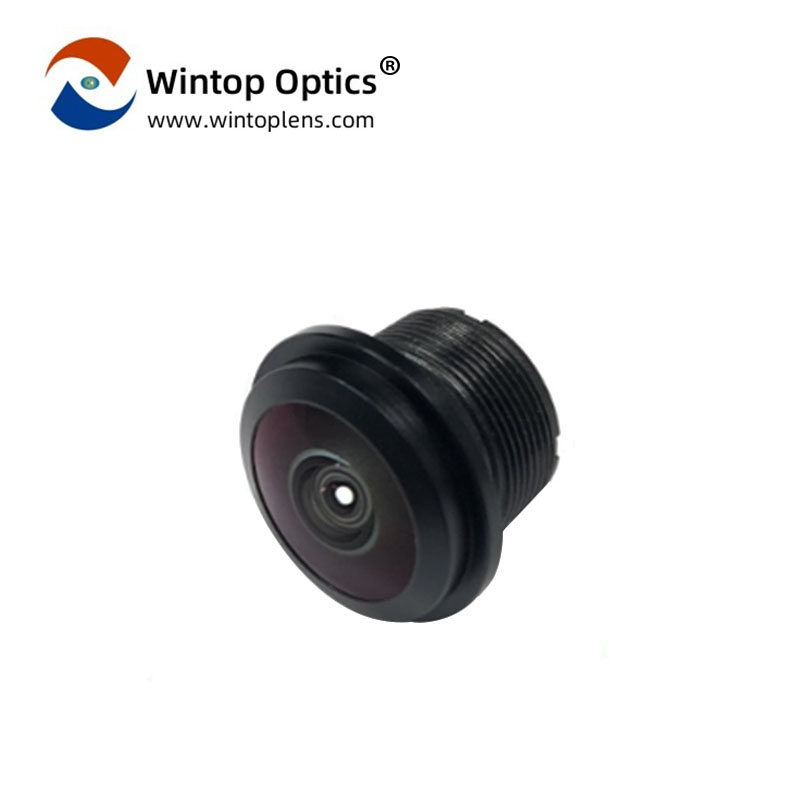

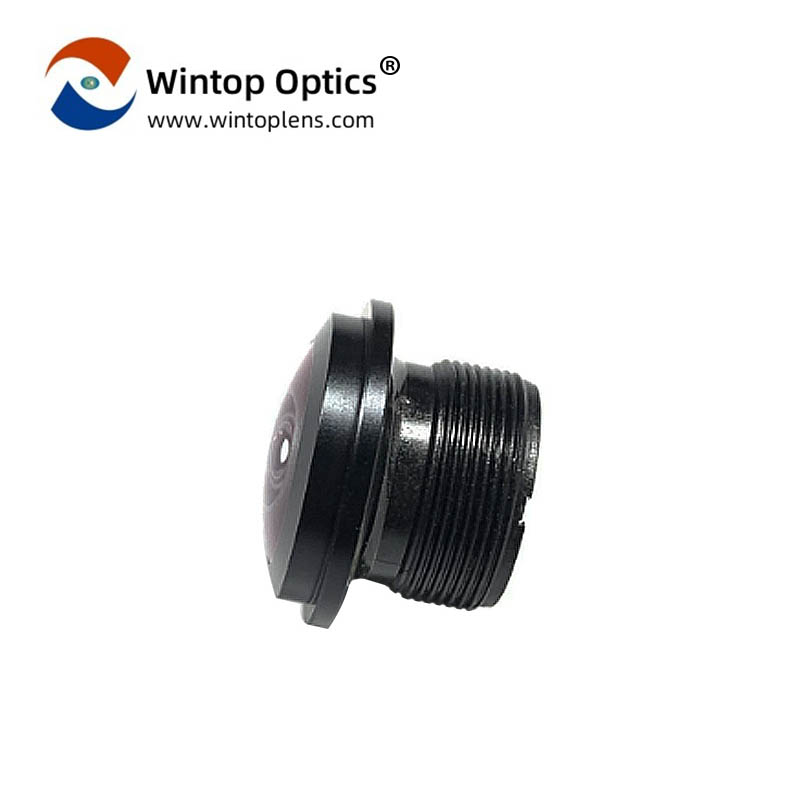

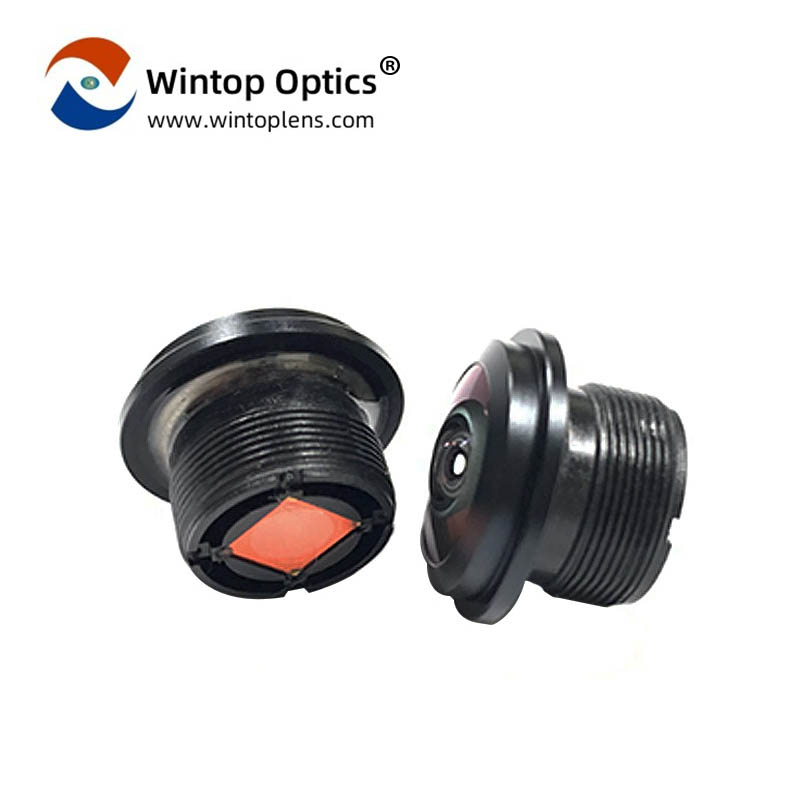

360 Degree Ultra-Wide-Angle Waterproof and Dustproof IP69 Grade Lens VR Car Panoramic Camera Lens YT-7048P-A1

360 Degree Ultra-Wide-Angle Waterproof and Dustproof IP69 Grade Lens VR Car Panoramic Camera Lens YT-7048P-A1

camera lens manufacturer
vr panorama camera lens
M12 camera mount lens
OMS/DMS camera lens

Item No :
YT-7048P-A1
Sensor :
1/3''
F/NO. :
1.6
EFL :
1.32
Optical TTL :
13.41
Thread Size :
M12*P0.5
FOV(H/V/D) :
215/115/215
Structure :
3G3P

Inquiry now

Product Details

YT-7048P-A1:Enjoy the driving pleasure!

know more about YT-7048P-A1 Lens parameters
MAX Img-Circle（mm）	∅4.2
EFL（mm）	1.32
F/NO.	1.6
Optical TTL	13.41
BACK FOCAL LEN GTH	2.35
FLANGE BACK LENGTH	1.30
TV DISTORTION	<- 35%
CRA	10
Storage At Temperature	-40°C~+ 85°C
WAVELENGTH	@420~610nm Tavg≥90
Dust Level	IP69
STRUCTURE	3G3P

Yunding Optical YT-7048P-A1 car panoramic camera lens brings you an excellent driving experience. From the customer's perspective, combined with the powerful advantages of car panoramic camera lenses, we have designed a powerful and high-performance front lens to create a safe and reliable driving environment for you.

With a focal length of 1.32mm and an aperture of 1.6, the YT-7048P-A1 front lens captures a wider field of view, allowing you to learn more about your surroundings during driving. Combined with the M12P0.5 screw mount and the high-quality composition of the 3G3P, the camera lens is stable and reliable, ensuring you get clear image quality.

The total optical length of the YT-7048P-A1 is 13.41 and the resolution reaches 1280 * 960. Whether you are driving at high speed or at low speed, you can enjoy delicate and sharp image performance. You will be able to clearly recognize road signs, traffic signals and other obstacles, and always maintain a keen observation of your surroundings.

In order to adapt to various extreme environments, the YT-7048P-A1 is equipped with IP69 waterproof and dustproof functions to ensure the reliable operation of the lens in bad weather and complex road conditions. Whether it is rainy days or muddy roads, you can use the lens with confidence and capture clear pictures.

The large wide-angle of 215 degrees allows you to learn more at once. The YT-7048P-A1 can expand your field of vision, allowing you to observe the situation around the vehicle without obstacles, completely eliminating dead ends, and providing all-round security.
