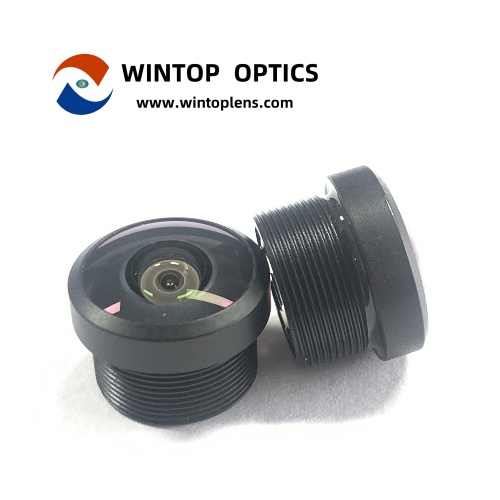

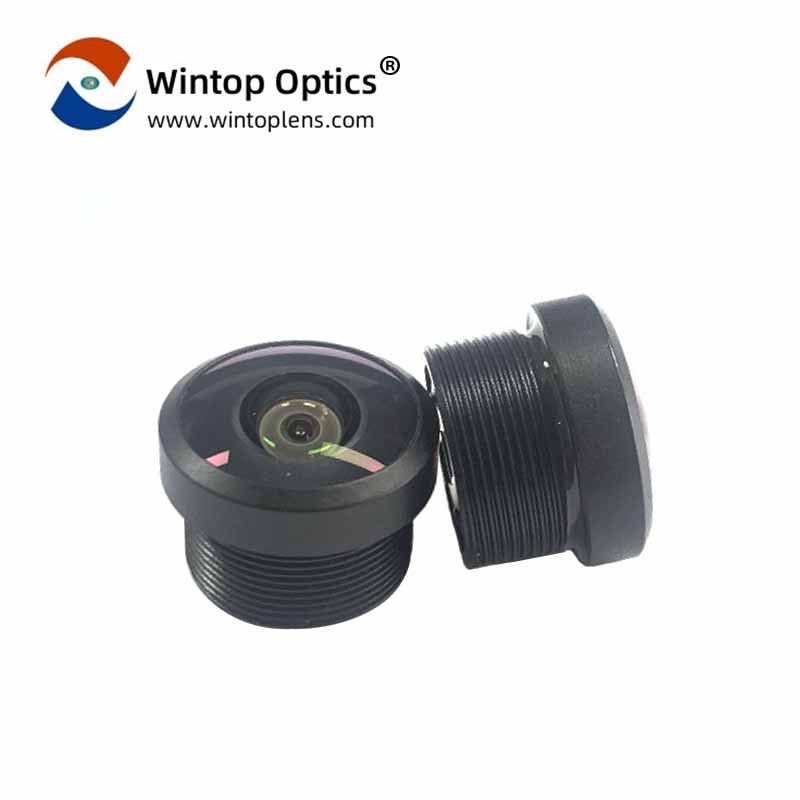

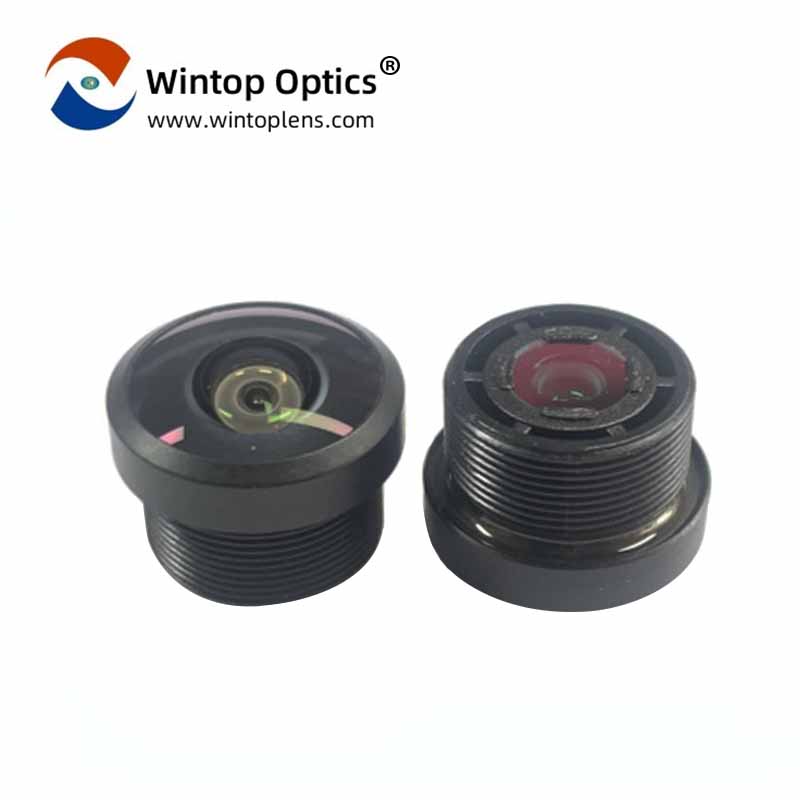

Customized Wavelength 420-700nm Optical Industrial Lens YT-6019P-C1

  • Factory customized wavelength 420-700nm optical industrial lens
  • Focal 1mm 200degree driving recorder lens
  • Wide angle vehicle surround view camera lens 12mm 2mp resolution
  • Item No :

    YT-6019P-C1
  • Sensor :

    ASX340, AR0141, AR0143, ISX016
  • F/NO. :

    2.0
  • EFL :

    0.955mm
  • Optical TTL :

    12.74
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    192°/142°/200°
  • Structure :

    1G4P+IR



YT-6019P-C1: The Ultimate 360-Degree Vehicle Vision System



know more about YT-6019P-C1 Optical Industrial Lens parameters
SENSOR SIZE 1/4"
OPTICAL TTL 12.74±0.2
WAVELENGTH 420-700nm
FOCAL LENGTH (EFL) 0.955mm±5%
F/NO (INFINITE) 2.0±5%
BACK FOCAL LENGTH 2.82
FLANGE BACK LENGTH 1.94±0.2
FIELD OF VIEW(D)  200°±3°(∅4.5)
FIELD OF VIEW(H) 192°±3°(∅3.6)
FIELD OF VIEW(V)  142°±3°(∅2 7)
TV DISTORTION
-19.4%
CHIEF RAY ANGLE 17.2°
RELATIVE ILLUMINATION
73%
Recent Camera Distance M12*P0.5-g6
STRUCTURE

1G4P+IR

IR FILTER SPEC.(Built-in,Others available)

Tavg>=88% @420-600 nm

T=50% @650±10nm

Tavg<=3% @700-1000 nm

T<5% @1050 nm



Introducing the YT-6019P-C1, a state-of-the-art automotive surround view camera lens designed to redefine safety and convenience on the road. With its F2.0 large aperture, this lens ensures superior light intake, providing clear and bright images even in challenging low-light conditions, enhancing visibility and awareness around your vehicle.


Optimized for 1/4'' Sensor with High-Resolution Imaging


Tailored to complement 1/4'' inch sensors, the YT-6019P-C1 delivers two million clear pixels, ensuring high-resolution imaging that captures every detail with precision. Compatible with a range of chips including ASX340, AR0141, AR0143, ISX016, and more, this lens is versatile and ready to integrate with various vehicle systems for a seamless surround view experience.

Ultra-Wide Angle Lens for Comprehensive Coverage


The YT-6019P-C1's ultra-wide angle lens offers a staggering 200° diagonal, 192° horizontal, and 142° vertical field of view. This expansive coverage ensures that every angle around your vehicle is captured, leaving no blind spots and providing a complete panoramic view that is essential for safe maneuvering and parking.

Standard M12*P0.5 Mount for Easy Integration


Equipped with a standard M12*P0.5 mount, the YT-6019P-C1 offers a secure and easy connection to your vehicle's camera system. This universal thread ensures compatibility with a wide range of vehicles, simplifying the installation process and allowing for quick setup.


Hybrid Glass-Plastic Lens Construction for Reliability


The lens structure of the YT-6019P-C1 is a hybrid of glass and plastic, composed of 1G4P lenses. This innovative design combines the high optical quality of glass with the lightweight and durable properties of plastic, ensuring that the lens is both high-performing and resilient.

Rigorous Quality Control for Enhanced Trustworthiness


During the production of the YT-6019P-C1, multiple quality control steps are implemented to guarantee a high level of reliability. From meticulous material selection to precise optical alignment, each lens undergoes thorough inspection to ensure that it meets the stringent standards required for automotive applications.

In conclusion, the YT-6019P-C1 is the pinnacle of automotive surround view technology, offering a combination of high-resolution imaging, ultra-wide angle coverage, and robust construction. Its advanced features make it the ideal choice for vehicle manufacturers and drivers who prioritize safety and convenience. With the YT-6019P-C1, you can confidently navigate through the tightest spaces and the most complex driving situations, knowing that your vehicle is surrounded by a 360-degree shield of visual protection.
