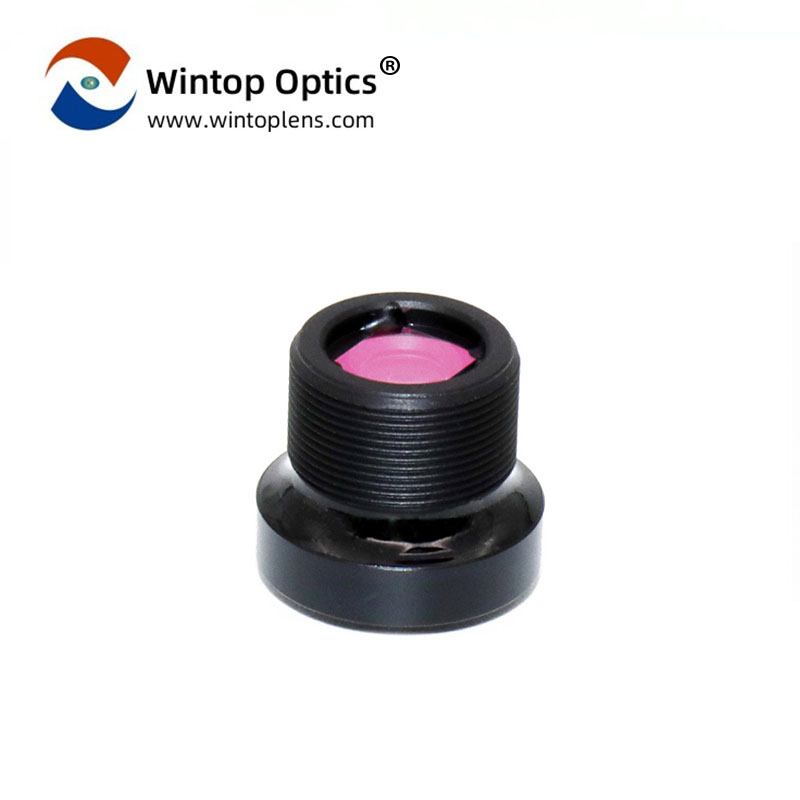

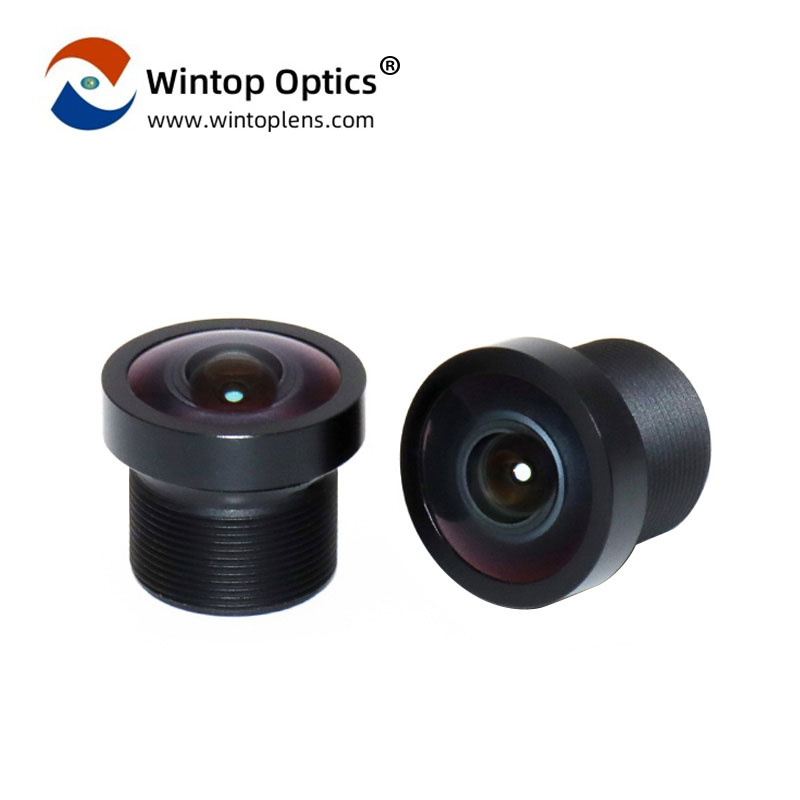

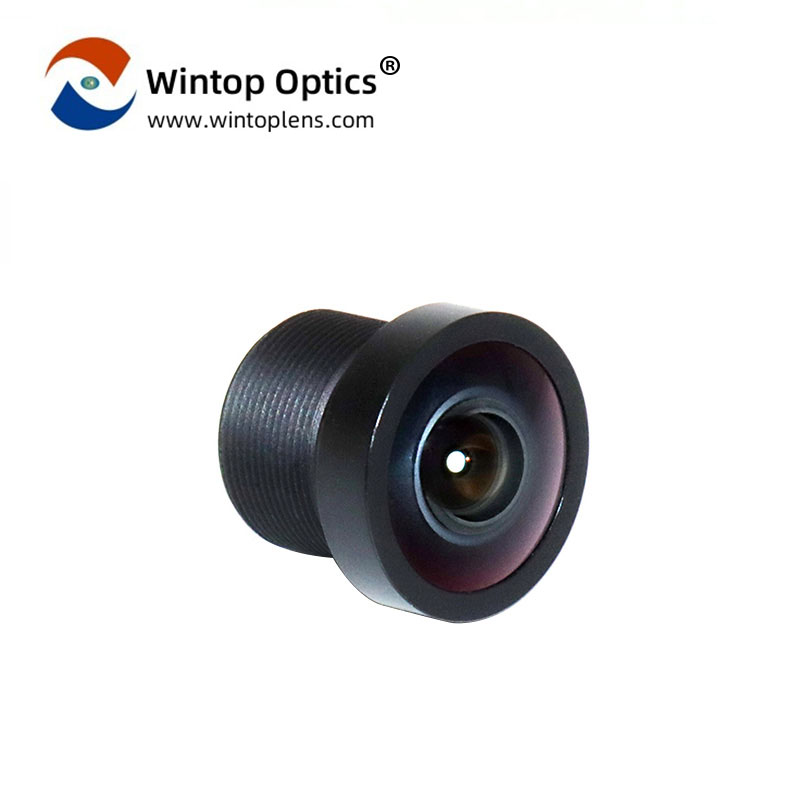

In-Cabin Passenger Monitoring Camera Lens YT-7600-L4

  • Broad field of view with 2.2mm focal length
  • Robust protection with IPX7 waterproof rating and CRA 18
  • Operating Temperature(-40℃ to +85℃)
  • CRA 18 1/2.7'' sensors diagonal angle 170° ensuring the safety and well-being of all occupants
  • Night vision excellence with full-wave optics at 940nm infrared and 15um
  • Item No :

    YT-7600-L4
  • Sensor :

    GC2053
  • F/NO. :

    2.4
  • EFL :

    2.2mm
  • Optical TTL :

    17.08
  • Thread Size :

    m12*P0.5
  • FOV(H/V/D) :

    154°/86°/178°
  • Structure :

    6G+IR



YT-7600-L4: The Ultimate In-Cabin Passenger Monitoring Lens



know more about YT-7600-L4 Passenger Monitoring Camera Lens parameters
MAX Img-Circlemm ∅6.72
EFLmm 2.2
F/NO. 2.4
Optical TTL 17.08
Mechanical TTL 17.08
BACK FOCAL LEN GTH 4.70
FLANGE BACK LENGTH 3.02
TV DISTORTION <- 33%
RELATIVE ILLUMINATION > 80%
CRA 18.2°
Pixel Size (μm) 3.0*3.0
Storage At Temperature -40°C~+ 85°C
Recent Camera Distance 0.2
Infrared 940/15um
WAVELENGTH @425~635nm Tavg≥90%
@94010nm T>80%
Dust Level IPX7
STRUCTURE 6G+ IIR



Elevate the safety and security of your vehicle with the YT-7600-L4, a specialized in-cabin passenger monitoring lens designed to provide comprehensive surveillance and exceptional performance. Here's why this lens stands out as the top choice for advanced vehicle safety systems:

In-Cabin Passenger Monitoring for Enhanced Security


The YT-7600-L4 is tailored for monitoring passengers within the vehicle, ensuring the safety and well-being of all occupants. This lens is a crucial component for advanced driver-assistance systems (ADAS) and security features, keeping an eye on passengers to prevent incidents and provide assistance when needed.

2.2mm Focal Length for a Broad Field of View


This lens features a 2.2mm focal length, which is optimized to capture a broad field of view within the vehicle's cabin. This expansive coverage ensures that every passenger is within the monitoring range, allowing the system to detect and respond to a wide range of situations.

IPX7 Waterproof Rating and CRA 18 for Robust Protection


With an IPX7 waterproof rating and CRA 18, the YT-7600-L4 is built to withstand the toughest conditions. It's designed to operate flawlessly even when exposed to water and various chemicals, ensuring reliable performance in all scenarios.

Full-Wave Optics with Infrared 940nm 15um for Night Vision Excellence


The lens's full-wave optics, combined with an infrared 940nm 15um filter, deliver exceptional night vision capabilities. This advanced technology allows the lens to capture clear images even in complete darkness, providing round-the-clock surveillance for enhanced passenger safety.


Wide Operating Temperature Range (-40℃ to +85℃) for All-Season Reliability


Designed to function seamlessly in extreme temperatures, the YT-7600-L4 maintains its high performance from the coldest to the hottest climates. This wide temperature range ensures that the lens remains operational and effective, regardless of the season or weather conditions.

1/2.7'' Sensor Compatibility with Ultra-Wide Viewing Angles


Optimized for 1/2.7'' sensors, the YT-7600-L4 offers an ultra-wide horizontal viewing angle of 154° and a diagonal angle of up to 170°, providing nearly 180° of coverage. This extensive field of view ensures that no passenger is out of sight, enabling comprehensive in-cabin monitoring.



In conclusion, the YT-7600-L4 is the pinnacle of in-cabin passenger monitoring technology, offering a perfect blend of wide-angle surveillance, robust construction, and advanced imaging capabilities. Its features make it the ideal choice for vehicles seeking to enhance passenger safety and security through continuous monitoring and advanced ADAS integration. With the YT-7600-L4, you can drive with confidence, knowing that your passengers are always protected.
