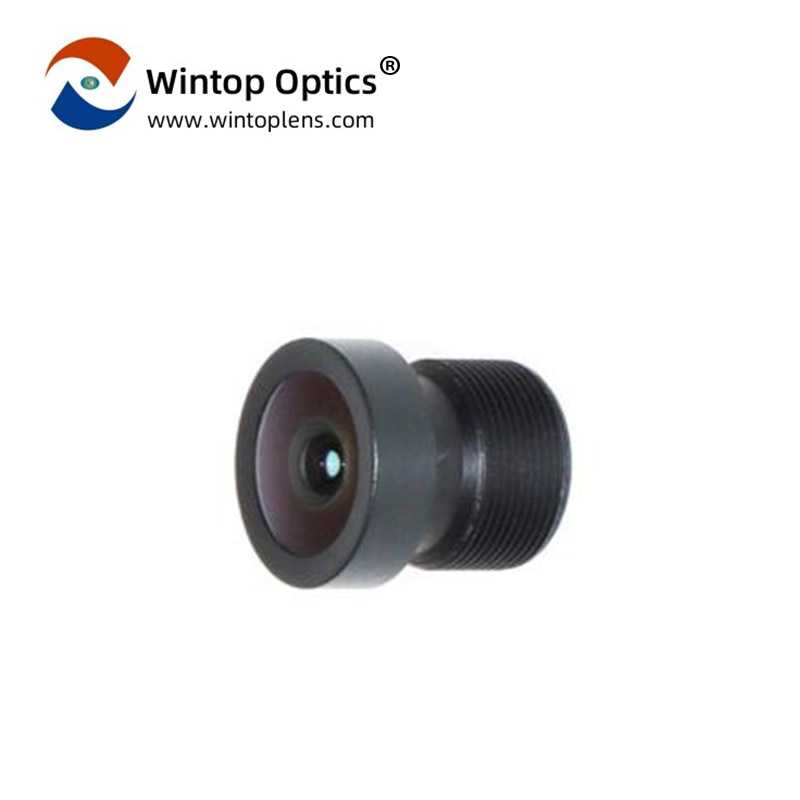

5MP large aperture driving recorder lens YT-1734P-C8

  • Drive safe optical lens 1/2.8 1/2.9 fixed focal lens
  • 2.8mm large aperture 5mp camera lens for video camcorder
  • Surveillance Camera M12 Board Lens 5MP large aperture driving recorder lens
  • Item No :

    YT-1734P-C8
  • Sensor :

    IMX415
  • F/NO. :

    2.0
  • EFL :

    2.8mm
  • Optical TTL :

    17.5
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    125°/65°/153°
  • Structure :

    6G



YT-1734P-C8: The Wintop Optics Dashcam Lens to Elevate Your Drive



know more about YT-1734P-C8 driving recorder lens parameters
Img Circle(mm)
∅6.8
Focal Length(EFL) 2.8mm
F/NO.(Infinite) 2.0
Optical TTL 17.5
Mechanical TTL 17.5
Back Focal Length 5.37
Flange Back Length 4.53
TV Distortion <-25%
Relative Illumination >68%
Storage Temperature -40℃~+85℃
CRA 13.6°
Pixel Size (μm)
1.45*1.45
Recent Camera Distance
0.2
Infrared
/
Dust Level

IP5X



Illuminate the Road Ahead


Introducing the YT-1734P-C8, a revolutionary dashcam lens that redefines night driving. With an F2.0 aperture, our advanced optical technology ensures that your recordings are sharp and well-balanced, even in low-light conditions. By minimizing stray light and ghosting effects, the YT-1734P-C8 guarantees enhanced visibility and safety throughout your nocturnal journeys.



Instant Clarity with Auto Focus


The YT-1734P-C8 is precision-engineered with a 2.8mm optical focal length and a compact 17.5mm total length. Our high-end dashcam lenses incorporate state-of-the-art auto-focus technology, allowing for rapid and accurate focusing to maintain crystal-clear footage at all times.

Ultra-High Definition Resolution


Harnessing the power of the IMX415 (3840*2160) 1/2.8" sensor, the YT-1734P-C8 delivers ultra-high-definition video with four million effective pixels. Coupled with HDR technology, our DVR lenses optimize light contrast, ensuring that your dashcam captures clear, well-exposed images, regardless of glare or backlight conditions.


Panoramic Field of View


The YT-1734P-C8 offers an unparalleled field of view, with a diagonal angle exceeding 150°. This ultra-wide-angle lens covers a vast area in front of your vehicle, providing comprehensive car camera recorder and ensuring that nothing escapes your dashcam's watchful eye.

Stabilization in Motion


Wintop Optics' YT-1734P-C8 lens is designed to effectively reduce image blur caused by vibrations, ensuring that your recordings remain stable and distortion-free. Enjoy smooth, high-quality footage that accurately captures every detail of your drive.

Standardized and Customizable


Featuring a standard M12*P0.5 thread structure, the YT-1734P-C8 is compatible with a wide range of dashcam setups. The hybrid glass-plastic construction with a blue glass filter ensures superior light transmission and image quality, while also allowing for easy customization to meet your specific needs.


Choose the YT-1734P-C8 dashcam lens for an unparalleled driving experience. With Wintop Optics, you're not just recording your journey; you're capturing every moment with precision, clarity, and confidence. Drive smarter, with Wintop Optics.
