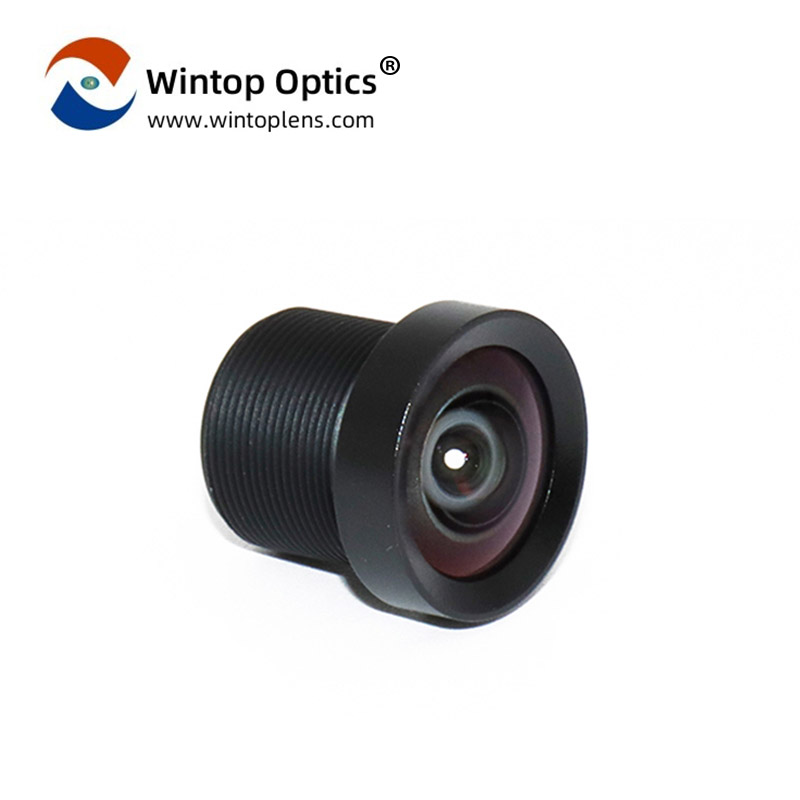

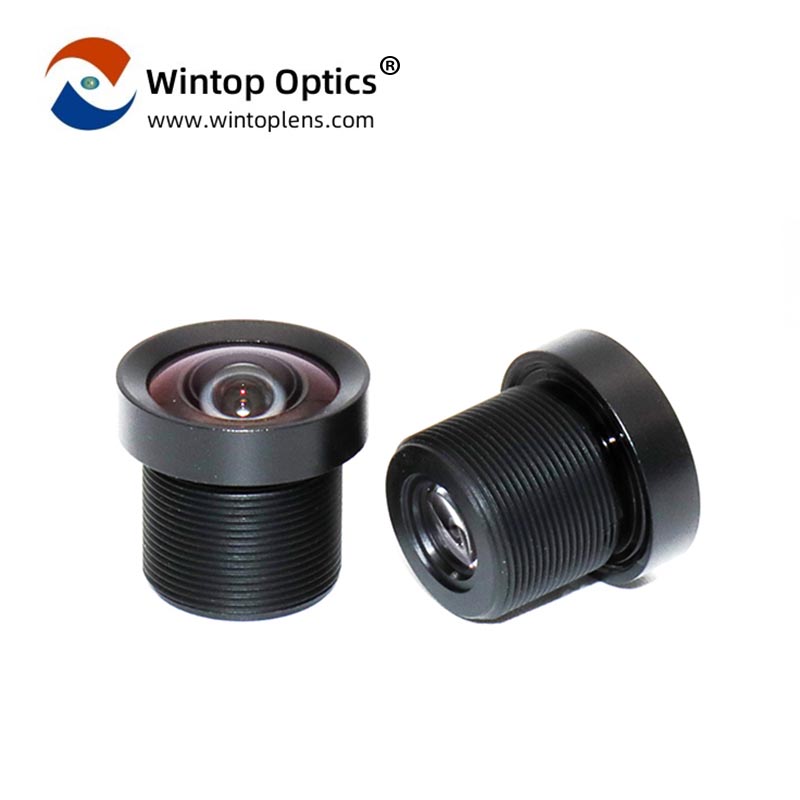

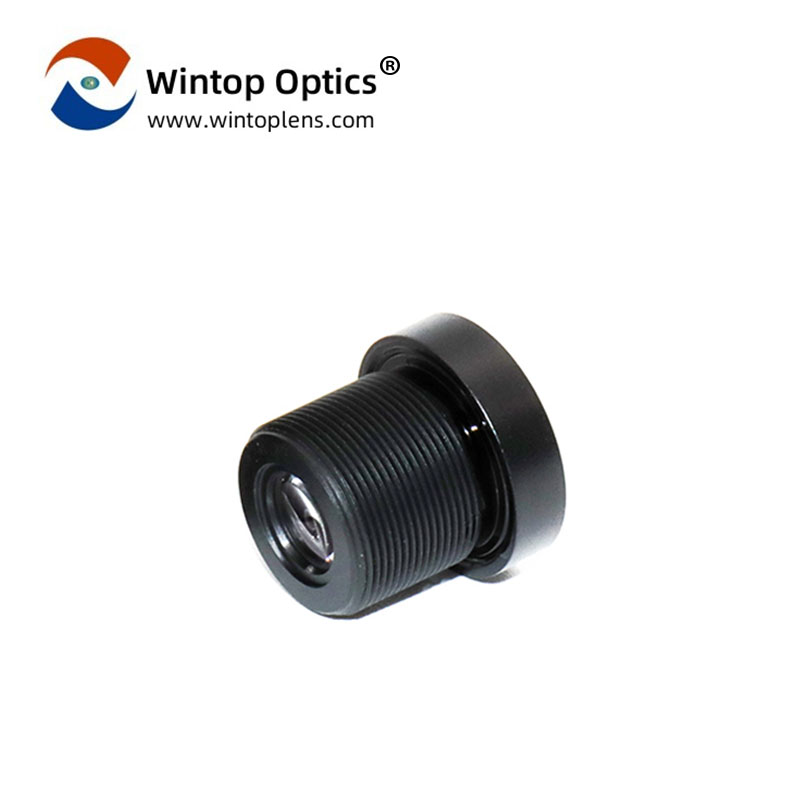

4MP 1/2.9" dashcam sensors camera lens YT-1712-F2

  • OV4689 Effective focal length 1.9 2.0mm fixed focus cctv lens
  • M12 4MP sport dv camera lens for dashcam 1/2.8" 1/2.9" sensors
  • law enforcement cameras lens for car recorder camera event data recorder lens
  • Item No :

    YT-1712-F2
  • Sensor :

    OV4689
  • F/NO. :

    2.4
  • EFL :

    1.95mm
  • Optical TTL :

    17.3
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    114°/92°/131°
  • Structure :

    4G2P+IR



YT-1712-F2: The Wintop Optics Dashcam Lens for Experience Unparalleled Clarity



know more about YT-1712-F2 Dashcam Lens parameters
Img Circle(mm)
∅7.0
Focal Length(EFL) 1.95mm
F/NO.(Infinite) 2.4
Optical TTL 17.3
Mechanical TTL 17.3
Back Focal Length 3.49
Flange Back Length 3.0
TV Distortion -10%
Relative Illumination ≥75%
Storage Temperature -40℃~+85℃
CRA
Recent Camera Distance
0.2
Infrared
/
Wave Length

420~600nm  T≥90%

Dust Level

IP5X



Stabilized Precision


Introducing the YT-1712-F2, a dashcam lens that redefines clarity on the go. With a robust F2.4 aperture, this lens is designed to withstand the vibrations inherent in driving, ensuring that your recordings remain sharp and distortion-free. Wintop Optics harnesses advanced optical technology and a durable metal casing to deliver a premium lens that minimizes blur and maintains stability in every driving condition.



Auto Focus Mastery


The YT-1712-F2 is equipped with an optical focal length of 1.95mm and an overall length of 17.3mm, integrating the latest auto-focus technology. This ensures that your dashcam captures images that are consistently crisp and clear, no matter the speed or road conditions.

High-Definition Detail


Powered by the JX-H65 chip (1280*960), the YT-1712-F2 offers a high-definition experience with four million pixels of clarity. Our DVR lenses provide high-resolution images that capture every detail with precision, ensuring that your recorded videos are not only clear but also rich in detail, with a lens height of 7mm for optimal image quality.


Ultra-Wide Field of View


With a generous 130° diagonal field of view, the YT-1712-F2 covers a vast area in front of your vehicle, offering comprehensive car driving recorder. This super-wide angle is perfect for capturing the full context of any incident, providing ample evidence against fraudulent claims, and ensuring you have the full story in every recording.

Vibration Resistant Design


Wintop Optics understands the challenges of in-vehicle recording. That's why the YT-1712-F2 is engineered with a vibration-resistant design that significantly reduces image blur caused by road vibrations. Enjoy stable, smooth footage that stands up to the test of time and scrutiny.

Simplified Installation


The YT-1712-F2 features a standard M12*P0.5 thread structure and a hybrid glass-plastic construction, eliminating the need for a filter. This design not only simplifies installation but also allows for easy customization according to your specific needs, ensuring that your dashcam setup is as unique as your driving experience.


Choose the YT-1712-F2 dashcam lens for a driving experience that is both reliable and clear. With Wintop Optics, you're choosing a partner committed to delivering the highest quality in automotive imaging technology. Drive with confidence, knowing that every moment is captured with precision and clarity.
