5.76mm Focal Length Driver Security Cameras Lens YT-7612-A7

  • In-vehicle driver monitoring systems lens
  • Detect signs of fatigue or distraction camera lens
  • Glass Lens with 940nm Narrow Band
  • Low distortion rate of only 5.6%
  • Optimized for OV2311 Sensor with 1/2.9'' Diagonal Viewing Angle of 65°
  • Item No :

    YT-7612-A7
  • Sensor :

    OV2311
  • F/NO. :

    2.4
  • EFL :

    5.76mm
  • Optical TTL :

    11.40
  • FOV(H/V/D) :

    48.8°/39°/65.4°
  • Structure :

    5G+IR



YT-7612-A7: The Advanced Driver Monitoring Solution



know more about YT-7612-A7 Security Cameras lens parameters

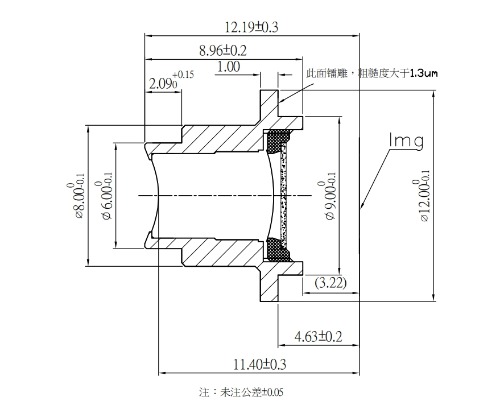

MAX Img-Circlemm ∅6.8
EFLmm 5.76
F/NO. 2.4
Optical TTL 11.40
Mechanical TTL 12.19
BACK FOCAL LENGTH 4.87
FLANGE BACK LENGTH 3.22
TV DISTORTION <- 5.6%
RELATIVE ILLUMINATION 65%
CRA 20°
Pixel Size (μm) 3*3
Storage At Temperature -40°C ~ 85°C
Recent Camera Distance 0.2M
Infrared /
WAVELENGTH @94010nm T>85%
Dust Level IPXX
STRUCTURE 5G+ IR



Enhance vehicle safety and driver awareness with the YT-7612-A7, a specialized driver monitoring camera lens designed to provide exceptional performance and precision. Here are the key selling points that make this lens a vital component for any modern vehicle's safety system:


Driver Monitoring Technology for Enhanced Safety


The YT-7612-A7 is engineered specifically for in-vehicle driver monitoring systems, offering a new level of safety and convenience. It's not just a camera lens; it's a guardian that helps prevent accidents by keeping an eye on the driver's attentiveness and readiness.

5.76mm Focal Length for Precise Imaging


This lens features a 5.76mm focal length that is optimized for capturing detailed and accurate images of the driver's face and expressions. This precise focus ensures that the monitoring system can effectively detect signs of fatigue or distraction, leading to timely alerts and interventions.

Five-Element Glass Lens with 940nm Narrow Band for Superior Clarity


The YT-7612-A7 boasts a high-quality lens construction with five glass elements and a 940nm narrow band filter. This combination ensures that the lens delivers sharp, clear images with minimal distortion and excellent color reproduction, which is crucial for accurate facial recognition and expression analysis.

Low Distortion Rate of Just 5.6% for Accurate Image Representation


With an incredibly low distortion rate of only 5.6%, the YT-7612-A7 ensures that the images captured are true to life, with minimal warping or bending. This level of accuracy is essential for reliable driver monitoring, where the slightest deviation in image quality can impact the system's effectiveness.


Compact Optical Length of 11.40mm for Space-Efficient Design


The lens's compact optical length of 11.40mm makes it an ideal choice for vehicle installations where space is at a premium. Its sleek design allows for unobtrusive integration into the vehicle's cabin, without compromising on imaging performance.

Optimized for OV2311 Sensor with 1/2.9'' Diagonal Viewing Angle of 65°


The YT-7612-A7 is perfectly matched with the OV2311 sensor, which features a 1/2.9'' format. This pairing ensures optimal image quality and clarity. The lens's 65° diagonal viewing angle provides a focused yet wide enough field of view to capture the driver's full face and critical aspects of their immediate environment.



In summary, the YT-7612-A7 is a cutting-edge driver monitoring lens that combines advanced optical technology with a compact design to deliver a reliable and accurate driver monitoring solution. It's an essential component for vehicles looking to enhance safety through driver attentiveness monitoring, offering a clear view of the driver and a safer driving experience.
