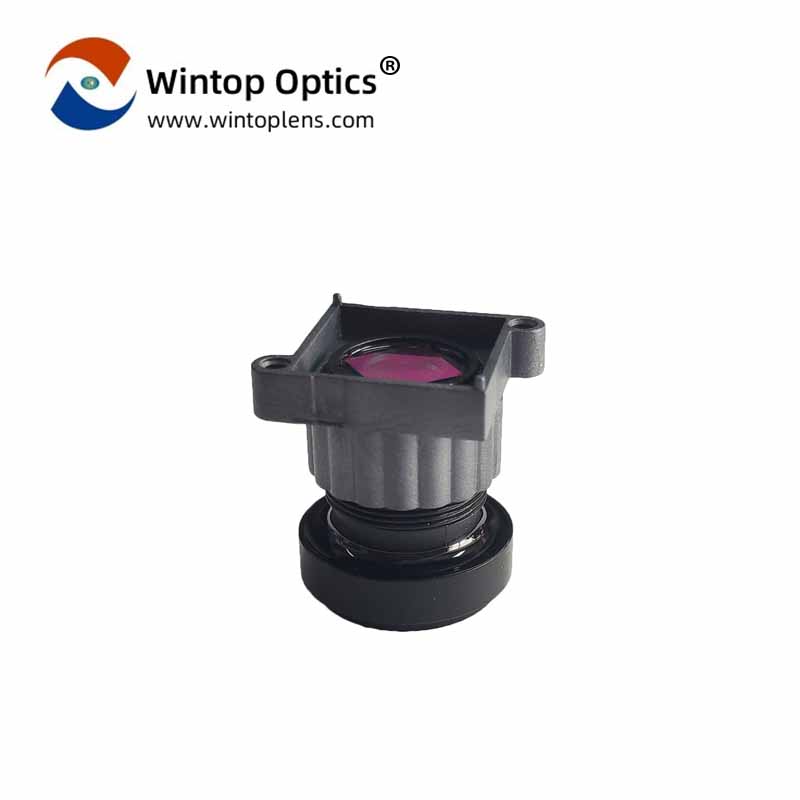

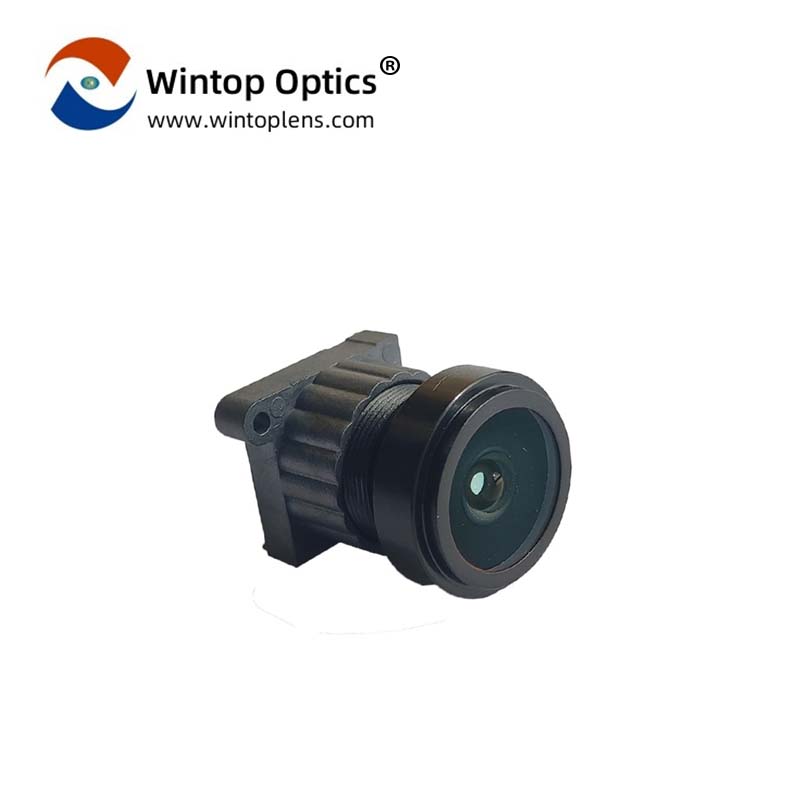

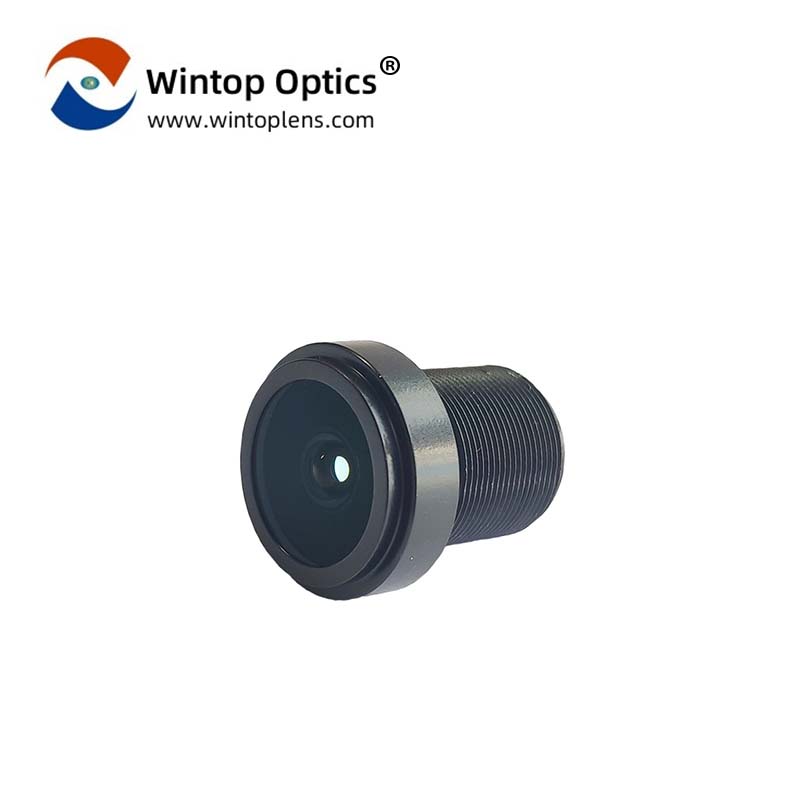

TS16949 approved IP67 4k driving recorder lens YT-7711P-A8

  • Car surveillance around view camera lens F1.8 maximum aperture
  • 3.18mm Focal Length for Ultra-Wide Field of View
  • IP67 Waterproof Rating for All-Weather Reliability
  • Blue Glass Filter for Enhanced Image Quality
  • Item No :

    YT-7711P-A8
  • Sensor :

    IMX307
  • F/NO. :

    1.8
  • EFL :

    3.18mm
  • Optical TTL :

    20.93
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    112°/58°/138°
  • Structure :

    2G2P



YT-7711P-A8: The Ultimate Automotive Imaging Solution



know more about YT-7711P-A8 recorder lens parameters
Img-Circle(mm) ∅7.0
Focal Length(EFL) 3.18mm
F/NO.(Infinite) 1.8
Optical TTL 20.93
Mechanical TTL 20.98
Back Focal Length 4.61
Flange Back Length 3.17
TV Distortion <-20%
Relative Illumination ≥50%
CRA 17.6°
Pixel Size (μm) 2.9μm*2.9μm
Storage Temperature -30℃~+80℃
Recent Camera Distance 0.2M
Infrared Non-infrared
Wave Length @420~600nm Tavg≥90%
@650±10nm T=50%
Dust Level IP67
Resolution 1080P



Experience unparalleled clarity and detail with the YT-7711P-A8, a cutting-edge automotive-grade camera lens designed to meet the rigorous demands of in-vehicle imaging systems. Here's why this lens stands out:

F1.8 Aperture for Exceptional Low-Light Performance


The YT-7711P-A8 boasts an impressive F1.8 maximum aperture, ensuring that it captures light effectively even in challenging low-light conditions. This feature is crucial for night-time driving, providing drivers with a clear and well-lit view of their surroundings.

3.18mm Focal Length for Ultra-Wide Field of View


With a 3.18mm focal length, this lens offers an expansive field of view, covering more of the scene in front of the vehicle. This ultra-wide angle is perfect for monitoring large areas without missing any critical details, enhancing safety and awareness on the road.

IP67 Waterproof Rating for All-Weather Reliability


Built to withstand the elements, the YT-7711P-A8 carries an IP67 rating, making it dust-tight and waterproof. Whether it's a heavy downpour or dusty conditions, this lens continues to deliver high-quality footage, ensuring that your vehicle's imaging system remains operational in all weather conditions.

Automotive Grade Durability


Designed specifically for automotive use, this lens is built to endure the harsh conditions that vehicles often face. It's built to last, withstanding temperature fluctuations, vibrations, and other environmental factors that could compromise lesser lenses.

Blue Glass Filter for Enhanced Image Quality


The inclusion of a blue glass filter works to reduce glare and enhance contrast, resulting in sharper images with more accurate color reproduction. This filter also protects the lens from scratches and other potential damage, ensuring that the clarity of the captured images remains pristine.

1080P High-Resolution Imaging


Capture every detail with the YT-7711P-A8's 1080P resolution. High-definition video ensures that every frame is crisp and clear, providing excellent video quality for recording or live monitoring purposes.

IMX307 Sensor Compatibility for Superior Performance


Pair this lens with the high-performance IMX307 sensor, and you have a match made in imaging heaven. This combination delivers outstanding image quality, with a wide 112° horizontal and 138° diagonal field of view. It's the perfect setup for capturing the full scene ahead, ensuring that nothing escapes the camera's watchful eye.


In summary, the YT-7711P-A8 is not just a lens; it's a statement of quality and reliability, designed to enhance the safety and technology of your vehicle. With its robust features and superior performance, it's the ideal choice for those who demand the best from their automotive imaging solutions.
