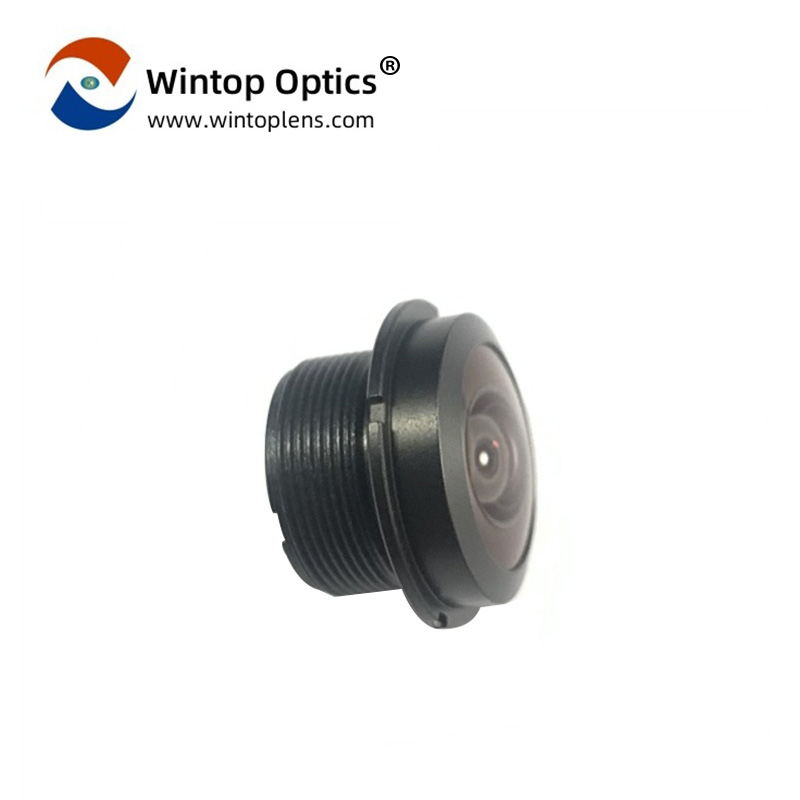

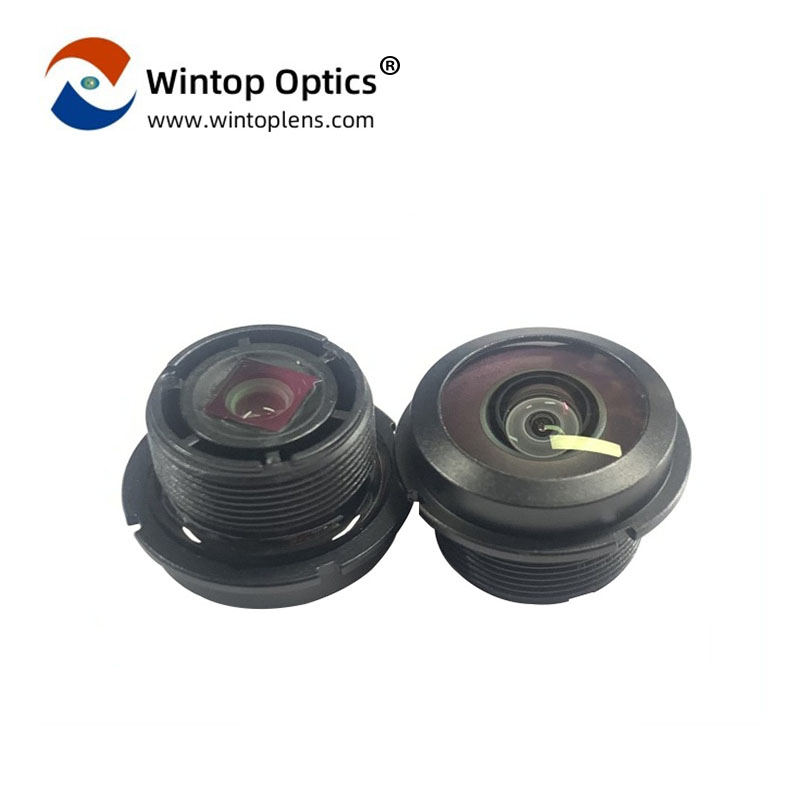

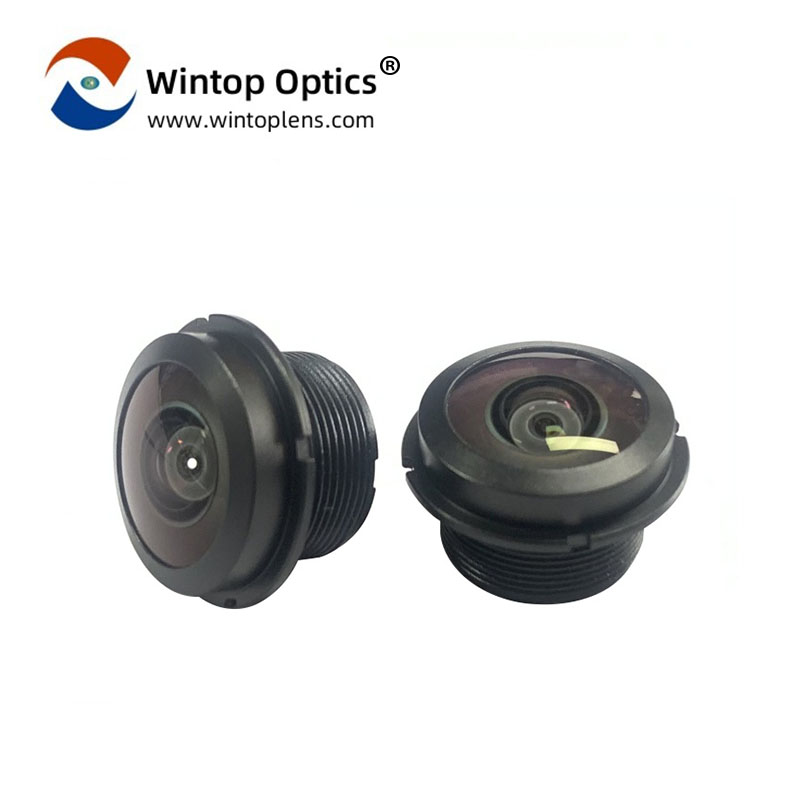

Vehicle Rearview Camera lens with 1G4P Structure YT-7716P-E1

  • Advanced Vehicle Rearview Cameras lens
  • road and surrounding areas view lens
  • 1G4P Lens Structure with 650nm Filter for Optimal Image Quality
  • M12 thread mount GC0308 sensor rearview monitoring lens
  • Item No :

    YT-7716P-E1
  • Sensor :

    GC0308
  • F/NO. :

    2.2
  • EFL :

    0.95mm
  • Optical TTL :

    12.74
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    117°/90°/144°
  • Structure :

    1G4P



YT-7716P-E1: The Benchmark for Advanced Vehicle Rearview Cameras



know more about YT-7716P-E1 Rearview Camera lens parameters
Img-Circle(mm) ∅16
Focal Length(EFL) 0.955mm
F/NO.(Infinite) 2.2
Optical TTL 12.74
Mechanical TTL 10.84
Back Focal Length 2.82
Flange Back Length 1.95
TV Distortion <-25%
Relative Illumination >75%
CRA 17°
Recent Camera Distance 0.2M
Wave Length @420~630nm Tavg≥90%
@685±10nm T=50%



Upgrade your vehicle's safety and technology with the YT-7716P-E1, a state-of-the-art rearview camera lens that redefines what's possible in automotive imaging. Here are the standout features that make this lens an indispensable addition to any vehicle:

F2.2 Aperture for Enhanced Visibility


The YT-7716P-E1 is equipped with a bright F2.2 aperture, which allows for exceptional light gathering capabilities. This ensures that the camera provides clear and bright images, even in low-light conditions, improving visibility and safety during nighttime or overcast driving.

0.95mm Focal Length for an Ultra-Wide Field of View


With an incredibly short 0.95mm focal length, this lens offers an ultra-wide field of view, capturing a vast expanse of the road and surrounding areas. This extensive coverage is crucial for rearview monitoring, providing drivers with a comprehensive view to assist in safe maneuvering and parking.

1G4P Lens Structure with 650nm Filter for Optimal Image Quality


The 1G4P (one glass and four plastic elements) lens structure is paired with a 650nm filter to deliver high-resolution images with exceptional clarity and color fidelity. This combination ensures that the lens is not only lightweight and durable but also capable of capturing sharp details with minimal distortion.

Vehicle-Grade Rearview Camera Design


Specifically engineered as a car-regulation rearview camera lens, the YT-7716P-E1 meets the stringent requirements for automotive applications. It's designed to endure the harsh conditions inside a vehicle, providing reliable performance and longevity.

M12 mount for Easy Integration


Featuring an M12 thread, this lens is designed for seamless integration with a wide range of vehicle systems. The M12 thread ensures a secure and stable connection, making installation quick and hassle-free.

Relative Illumination Greater Than 75%


The YT-7716P-E1 ensures that images are captured with a relative illumination of over 75%, maintaining consistent brightness across the frame. This feature is essential for clear and even imaging, which is particularly important for video recording and monitoring systems.

GC0308 Sensor Compatibility for High-Definition Imaging


Pair the YT-7716P-E1 with the GC0308 sensor, and you get a powerful combination that delivers high-definition video at 1280*720 resolution. This setup ensures that every detail is captured with precision, providing a clear and lifelike image for an enhanced driving experience.



117° Horizontal and 144° Diagonal Field of View


The lens's wide 117° horizontal and 144° diagonal field of view ensures that you have an expansive view of your surroundings. This broad coverage is perfect for rearview monitoring, allowing drivers to see more and enhancing safety during reversing and parking.


In summary, the YT-7716P-E1 is the pinnacle of automotive rearview camera technology, offering unparalleled visibility, durability, and image quality. Its advanced features make it the ideal choice for drivers who value safety, technology, and reliability in their vehicles.
