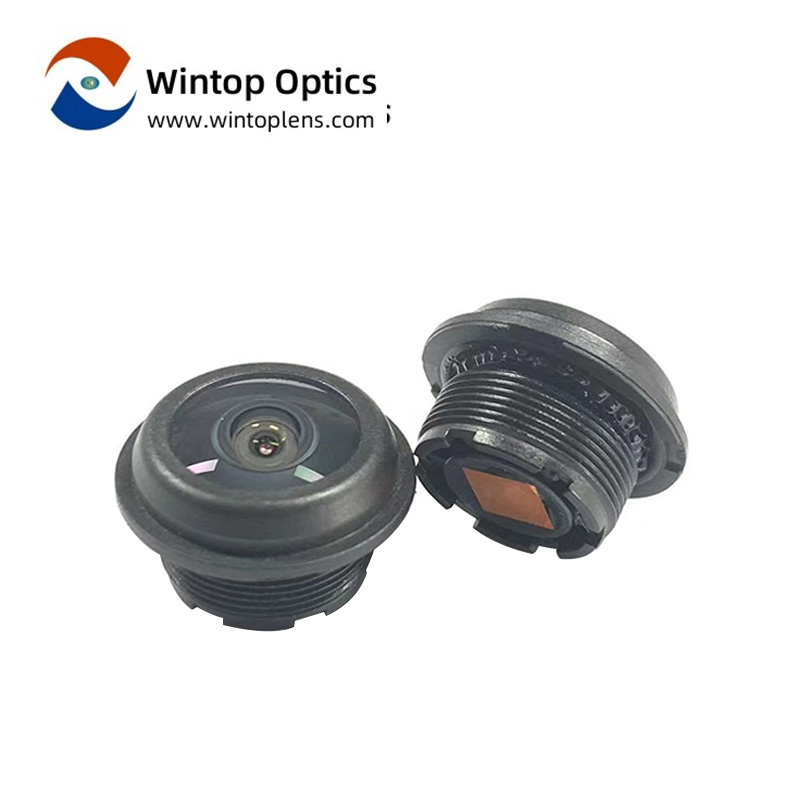

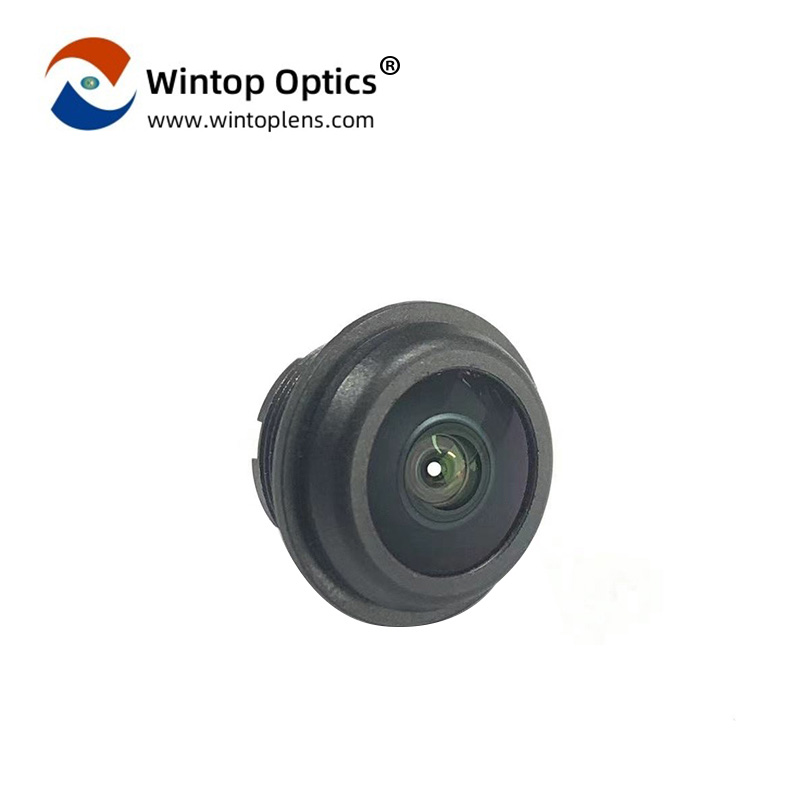

Waterproof GC2053 sensor 1/2.9" 200 Degree TTL13mm Vehicle Panoramic View Camera Lenses YT-6075P-E1

The All-Seeing 360° Panoramic Lens for Auto Ultimate Surveillance

High-Definition Imaging Power:

Pair the YT-6075P-E1 with the GC2053 sensor for a 1/2.9" inch sensor that captures 2 million clear pixels. With a lens height of 4.5mm, this lens delivers high-definition imaging that covers every angle without missing a beat.

Compact Design, Panoramic Vision:

This 360-degree wide-angle lens features an extremely short optical focal length (EFL) of 1.24mm and an optical total length (TTL) of 12.96±0.3mm. The Back Focal Length of 3.5mm and Flange Back Length of 2.66mm allow for a compact design that doesn't compromise on the expansive view it provides.

Exceptional Night Vision:

The F2.0 aperture lens ensures excellent night vision capabilities, making the YT-6075P-E1 perfect for round-the-clock surveillance. It captures clear images even in low-light conditions, providing reliable performance day and night.

Unparalleled Field of View:

With a diagonal and horizontal field of view exceeding 200 degrees, the YT-6075PP-E1 covers every angle. Ideal for applications like facial recognition in smart doorbells, video conferencing, in-vehicle surveillance, network monitoring, smart home security, and robotic surveillance, this lens ensures nothing goes unnoticed.

Robust and Reliable:

Designed to withstand a wide range of temperatures from -20℃ to +70℃, the YT-6075P-E1 is built for durability. With an IP67 rating for waterproof and dustproof capabilities, a Chief Ray Angle of 24 degrees, and a relative illuminance of over 62%, it maintains optimal performance in any environment.

Advanced Lens Construction:

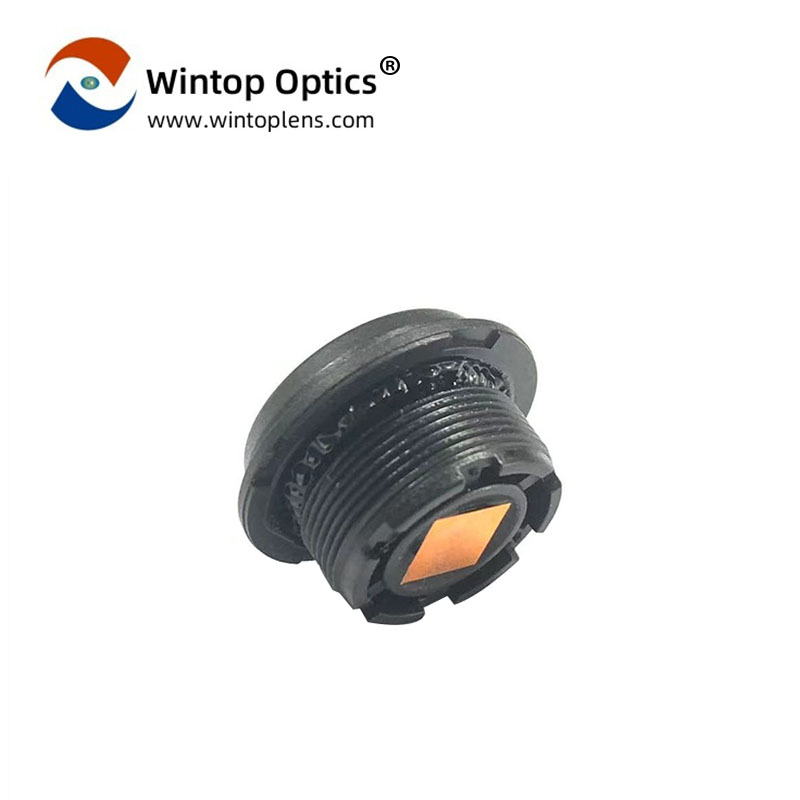

Featuring a conventional M12*P0.5 mount, the lens is crafted with a combination of one glass and four plastic lenses, along with a 1G4P+IR filter and a 650nm IR filter. This advanced construction ensures superior light transmission and image clarity, especially within the critical 420-610nm spectral band.

The YT-6075P-E1 is the epitome of versatility and performance, offering a complete 360-degree view with high-definition clarity. It's the ultimate choice for applications that demand comprehensive surveillance and unwavering reliability. Experience the power of total visibility with the YT-6075P-E1.
