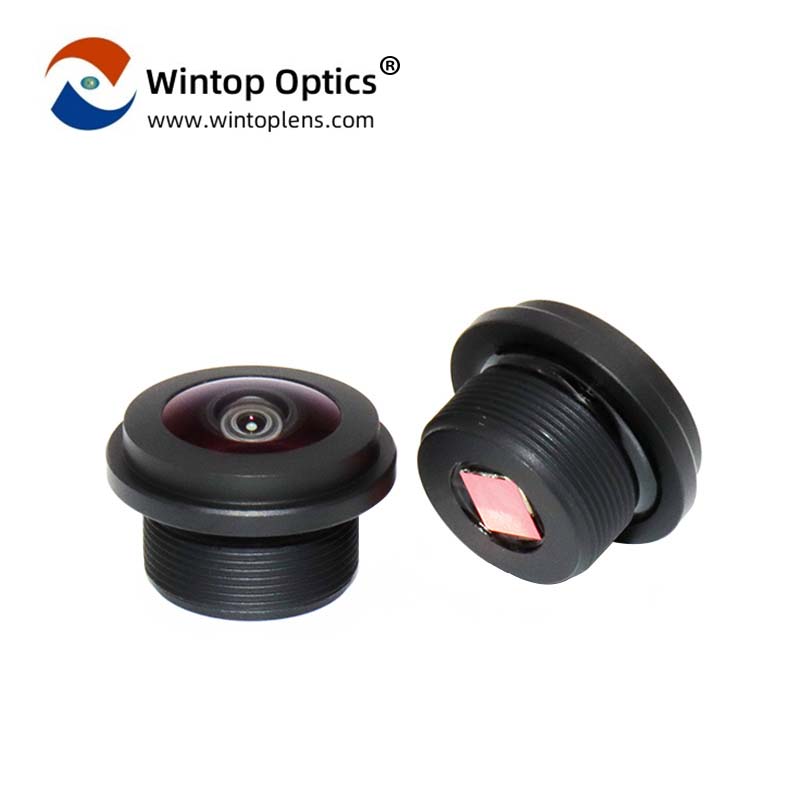

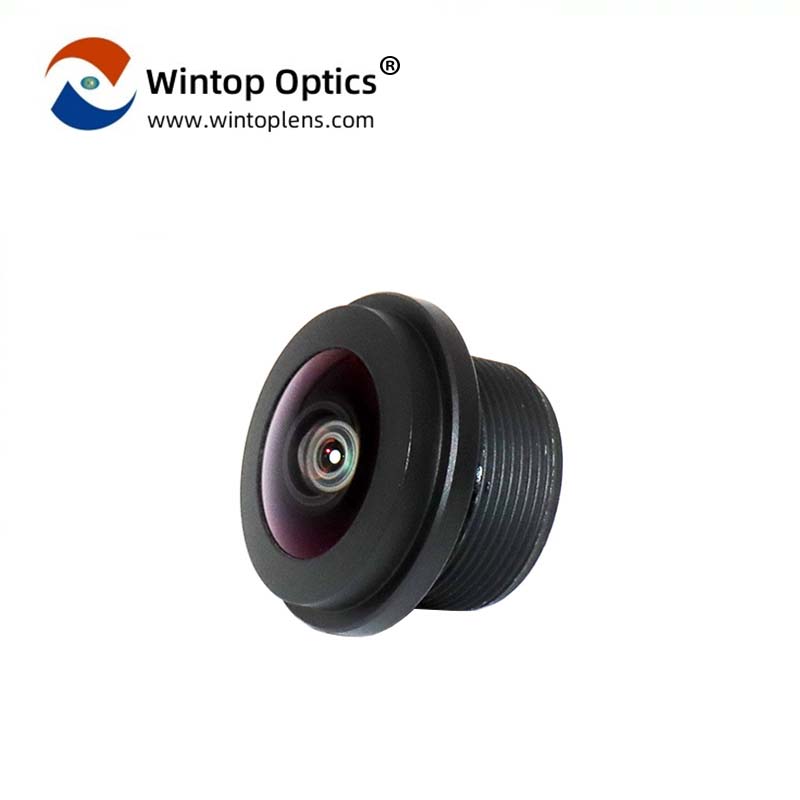

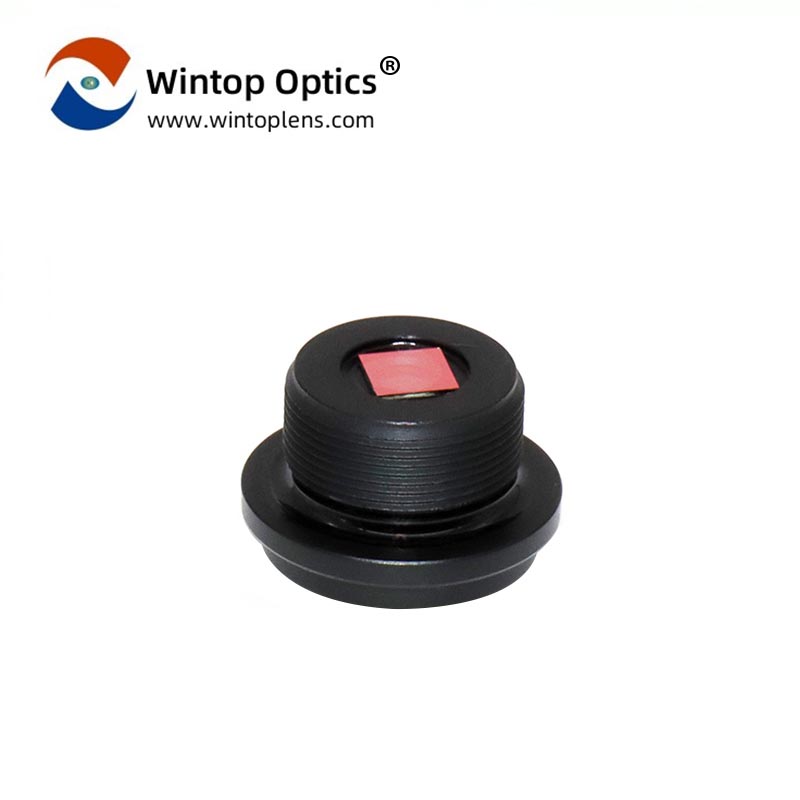

Ultimate 360-Degree Panoramic Monitoring Lens YT-7059P-F8-L

  • Adas Lens  F/NO 2.0 aperture fisheye camera lens
  • High MTF (Modulation Transfer Function) at 30lp and 60lp lens
  • high-resolution images with a wide viewing angle of over 200° both horizontally and diagonally



  • Item No :

    YT-7059P-F8-L
  • Sensor :

    PV3109K
  • F/NO. :

    2.0
  • EFL :

    1.1
  • Optical TTL :

    13.05
  • FOV(H/V/D) :

    200°/106°/200°
  • Structure :

    2G3P+IBlueGlass

YT-7059P-F8-L: The Ultimate 360-Degree Panoramic Monitoring Lens



know more about YT-7059P-F8-L monitoring lens parameters
Img-Circle(mm) ∅3.69
Focal Length(EFL) 1.1
F/NO.(Infinite) 2.0
Optical TTL 13.05
Mechanical TTL 13.05
Back Focal Length 2.8
Flange Back Length 1.93
TV Distortion -127%
Relative Illumination ≥63%
CRA 22°
Pixel Size (μm) 2.8*2.8
Storage Temperature -40℃~+85℃
Recent Camera Distance 0.2M
Work Temperature
-40℃~85
Wave Length @420~610nm T≥90%
Waterproof Level IP68
STRUCTURE 2G3P+IBlueGlass



Transform your vehicle's surveillance capabilities with the YT-7059P-F8-L, a cutting-edge 360-degree panoramic monitoring lens designed to provide a seamless view of your surroundings. Here are the key features that make this lens an indispensable part of any advanced driver-assistance system (ADAS):



F/NO 2.0 Aperture for Enhanced Low-Light Performance


The YT-7059P-F8-L is equipped with an F/NO 2.0 aperture, ensuring superior light transmission and excellent imaging performance even in low-light conditions. This high-quality aperture allows the lens to capture clear and detailed images, ensuring that your vehicle's monitoring system operates effectively at all times.



1.1mm Focal Length for an Ultra-Wide Field of View


This lens boasts a 1.1mm focal length, which is optimized to deliver an ultra-wide field of view. This expansive perspective is essential for 360-degree panoramic monitoring, ensuring that every angle around your vehicle is covered and no blind spots are left unmonitored.



IP68 Waterproof and Dustproof Rating for All-Weather Reliability


The YT-7059P-F8-L is built to withstand the elements with an IP68 rating, making it dust-tight and waterproof. This robust protection ensures that the lens continues to provide reliable performance in all weather conditions, maintaining a clear and consistent view of your surroundings.



High MTF (Modulation Transfer Function) at 30lp and 60lp


The lens's high MTF at 30lp and 60lp ensures sharp and detailed image reproduction across the entire frame. This high-resolution performance is crucial for capturing fine details and maintaining image integrity, which is essential for accurate monitoring and analysis by the vehicle's ADAS.



Compact Mechanical Total Length of 13.05mm for Easy Integration


The YT-7059P-F8-L's compact mechanical total length of 13.05mm allows for easy and unobtrusive integration into your vehicle. Its sleek design ensures that the lens can be installed without taking up valuable space or affecting the vehicle's aesthetics.



Compatibility with PV3109K Sensor for a 200°+ Viewing Angle


The lens is perfectly matched with the PV3109K sensor, which is designed to capture high-resolution images with a wide viewing angle of over 200° both horizontally and diagonally. This extensive coverage ensures that your vehicle's monitoring system has a panoramic view, providing a comprehensive overview of the surroundings.

In summary, the YT-7059P-F8-L is the epitome of automotive monitoring lens technology, offering a combination of advanced features that make it the ideal choice for vehicles seeking the highest level of surveillance and safety. Its ultra-wide field of view, robust construction, and high-resolution performance ensure that your vehicle is equipped to monitor its surroundings with precision and clarity. With the YT-7059P-F8-L, you can drive with confidence, knowing that your vehicle's panoramic monitoring system is always vigilant and ready to assist.
