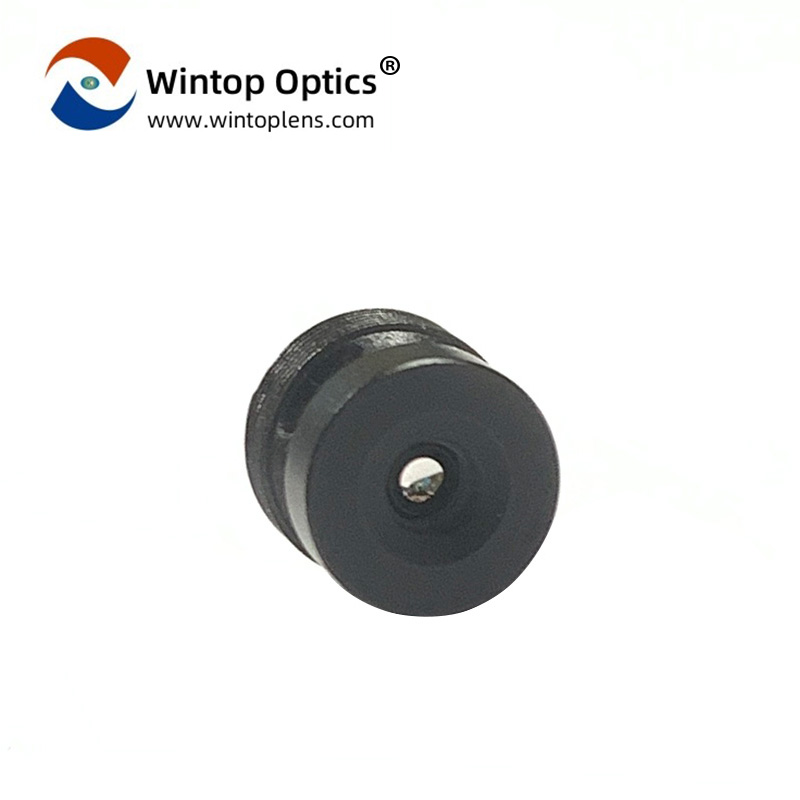

Advanced Driver Fatigue Monitoring Lens YT-7602P-R7-B

  • Driver Fatigue Monitoring Lens for Proactive Safety
  • EFL 3.59mm low distortion rate 8%
  • Optical Total Length (TTL) of 11.25mm for Space-Saving Design
  • Matched with AR0144 Sensor for High-Definition Imaging 80° Diagonal Viewing Angle



  • Item No :

    YT-7602P-R7-B
  • Sensor :

    AR0144
  • F/NO. :

    2.5
  • EFL :

    3.59
  • Optical TTL :

    11.25
  • Thread Size :

    M8.00*P0.35
  • FOV(H/V/D) :

    67°/35°/81°
  • Structure :

    4G+1R

YT-7602P-R7-B: The Advanced Driver Fatigue Monitoring Lens

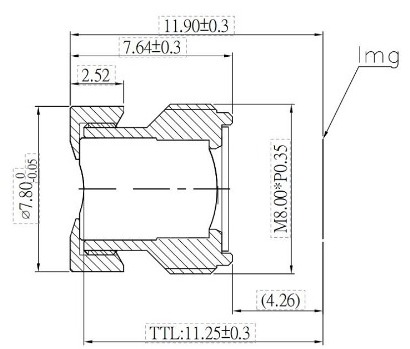

know more about  YT-7602P-R7-B monitoring lens parameters
Img-Circle(mm) ∅4.7
Focal Length(EFL) 3.59
F/NO.(Infinite) 2.5
Optical TTL 11.25
Mechanical TTL 11.9
Back Focal Length 4.98
Flange Back Length 4.26
TV Distortion <-8%
Relative Illumination 75%
CRA 15°
Pixel Size (μm) 3*3
Recent Camera Distance 0.3M
Storage At Temperature
-40℃~85
Infrared /
Wave Length @940+10nm T>85%
Dust Level IPXX
STRUCTURE 4G+IR



Enhance driver safety and reduce the risk of fatigue-related accidents with the YT-7602P-R7-B, a state-of-the-art camera lens specifically designed for driver fatigue monitoring systems. Here's why this lens is a game-changer for any vehicle's safety features:



Driver Fatigue Monitoring Lens for Proactive Safety


The YT-7602P-R7-B is engineered to be the eyes of your vehicle's fatigue monitoring system, providing real-time analysis of the driver's alertness. By detecting signs of drowsiness or inattention, this lens helps to prevent accidents by alerting the driver or taking corrective actions, ensuring a safer journey for all.



3.59mm Focal Length for Precise Driver Capture


With a 3.59mm focal length, this lens is optimized to capture detailed and clear images of the driver's face and eyes. This precise focus is essential for accurate fatigue detection, allowing the monitoring system to effectively analyze the driver's state and provide timely warnings.



Low Distortion Rate of 8% for Accurate Image Representation


Featuring a low distortion rate of just 8%, the YT-7602P-R7-B ensures that the images captured are highly accurate and true to life. This level of precision is critical for fatigue monitoring, where the system relies on clear and undistorted images to make reliable assessments.



Compact Optical Total Length (TTL) of 11.25mm for Space-Saving Design


The lens's compact optical total length of 11.25mm allows for easy and discreet integration into the vehicle's interior. Its space-saving design ensures that the lens can be installed without compromising the vehicle's aesthetics or the driver's comfort.



Matched with AR0144 Sensor for High-Definition Imaging


The YT-7602P-R7-B is perfectly paired with the AR0144 sensor, which delivers high-definition 1280*720 resolution. This combination ensures that the lens captures sharp, detailed images that are essential for effective fatigue monitoring and driver assistance features.



80° Diagonal Viewing Angle for Comprehensive Driver Coverage


The lens's 80° diagonal viewing angle provides a wide field of view that covers the driver's face and critical areas within the cabin. This comprehensive coverage ensures that the monitoring system has all the visual information it needs to accurately assess the driver's condition.

In summary, the YT-7602P-R7-B is a cutting-edge driver fatigue monitoring lens that combines advanced optical technology with a compact design to deliver a reliable and accurate safety solution. Its features make it the ideal choice for vehicles seeking to enhance driver safety through continuous monitoring and advanced driver-assistance systems. With the YT-7602P-R7-B, you can drive with confidence, knowing that your vehicle is equipped to monitor driver fatigue and help prevent accidents.
