Item No :
YT-5760-C1Sensor :
1/2.7” 1/2.8“ 1/2.9” 1/3“F/NO. :
2.0EFL :
1.79Optical TTL :
15.00FOV(H/V/D) :
1/2.7"(144°/92°/160°) 1/2.8"(141°/89°/156°) 1/2.9"(137°/86°/152°) 1/3"(133°/84°/148°)Structure :
2G4P+1IRMount :

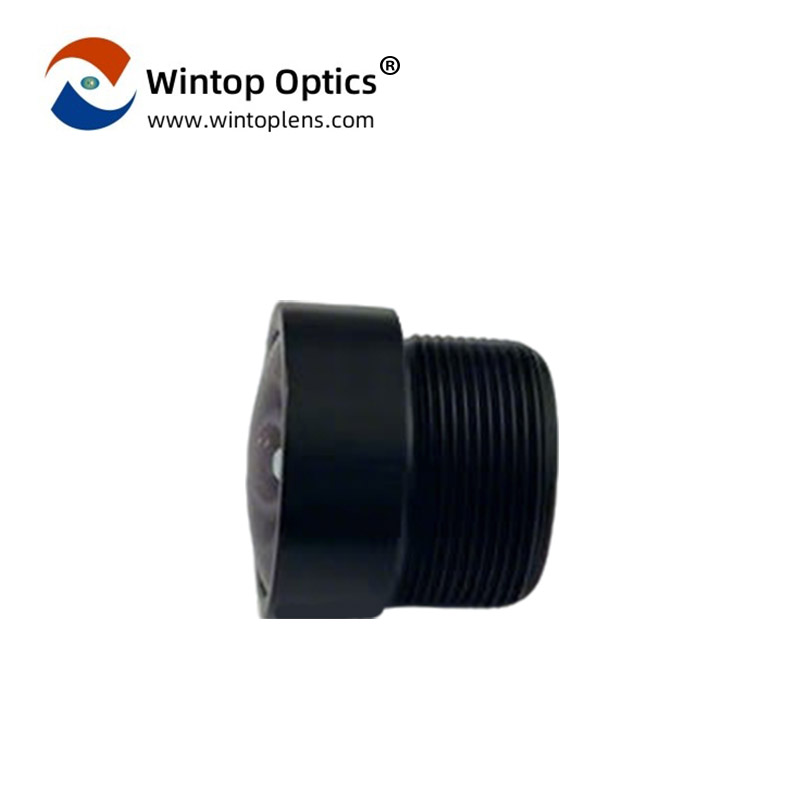

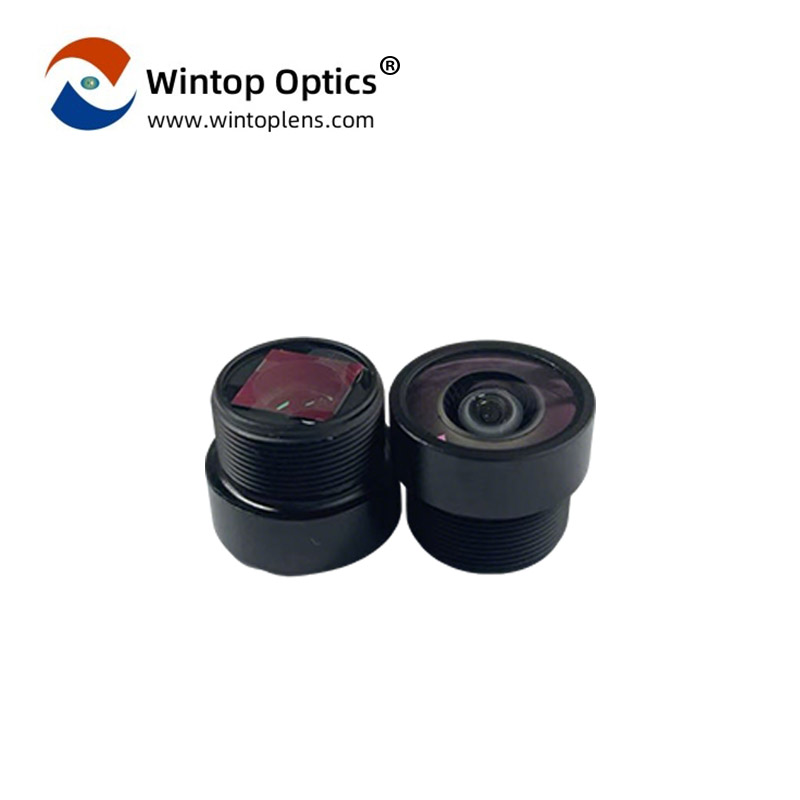

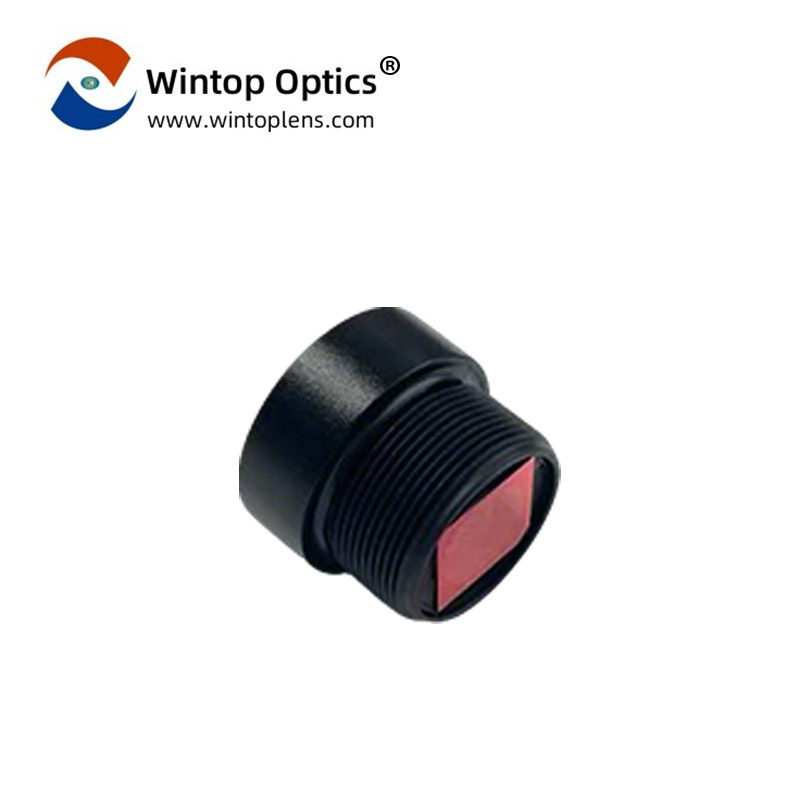

M12*P0.5YT-5760-C1:The 5MP Ultra Wide Angle Vision Lens for Smart Robotics, Automotive & Intelligent Security Systems
| Know More About YT-5760-C1 Robot Vision, Smart Doorbell & Automotive Camera Lens Parameters |
|||||||||||
| Max Img-Circle(mm) | ∅6.6 |
||||||||||
| EFL(mm) | 1.79 |
||||||||||
| F/NO. | 2.0 |
||||||||||
| Optical TTL(mm) | 15.00 |
||||||||||

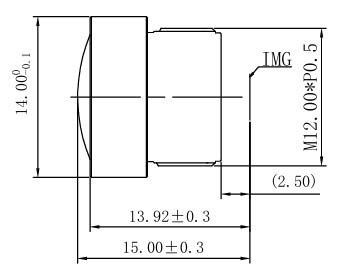

| Mechanical TTL(mm) | 13.92 |
||||||||||
| Back Focal Length(mm) | 3.40 |
||||||||||
| Flange Back Length (mm) | 2.50 | ||||||||||
| Optical Distortion | 1/2.7" | <-67% | 1/2.8" | <-67% | 1/2.9" | <-67% | 1/3" | <-67% | |||
| TV Distortion | 1/2.7" | <-67% | 1/2.8" | <-67% | 1/2.9" | <-67% | 1/3" | <-67% | |||
| Relative Illumination | 1/2.7" | >40% | 1/2.8" | >40% | 1/2.9" | >40% | 1/3" | >40% | |||
| CRA | 1/2.7" | 15.9° | 1/2.8" | 15.9° | 1/2.9" | 15.9° | 1/3" | 15.9° | |||
| FOV(H/V/D) | 1/2.7" | 144°/92°/160° | 1/2.8" | 141°/89°/156° | 1/2.9" | 137°/86°/152° | 1/3" | 133°/84°/148° | |||
| Storage at Temperature | -20℃/+70℃ |
||||||||||
| Recent Camera Distance | 0.2M |
||||||||||
| Infrared | No |
||||||||||
| Wavelength | @420~600nm Tavg＞90% @650nm±10nm T=50% |
||||||||||
| Dust Level | IP67 |
||||||||||
| Structure | 2G4P+1IR |
||||||||||
The YT-5760-C1 is a professional 5MP ultra wide angle lens developed for modern intelligent imaging applications. Designed with high-definition optical performance and a compact M12 mount structure, this lens is ideal for robot cameras, smart doorbell cameras, automotive vision systems, AI monitoring devices, and embedded smart camera modules.
With a 1.79mm focal length and ultra wide viewing angle, the YT-5760-C1 captures a broader monitoring range while maintaining clear image details. The lens supports multiple sensor formats including 1/2.7”, 1/2.8”, 1/2.9”, and 1/3”, making it highly compatible with a wide range of camera modules and AI vision devices.
Its compact size, stable imaging performance, and low distortion optical design make it an excellent solution for intelligent systems requiring wide-area monitoring and precise visual recognition.
As a 5MP high resolution camera lens, the YT-5760-C1 delivers sharp image quality and enhanced detail capture for intelligent vision systems. The optimized optical structure helps improve image clarity, edge sharpness, and overall visual performance in both indoor and outdoor environments.
This 5MP M12 lens is suitable for applications such as:
The high-definition optical performance allows AI systems to process image data more accurately for object detection, facial recognition, navigation, and environmental analysis.
The YT-5760-C1 is designed as an ultra wide angle lens capable of achieving up to 160° diagonal field of view. The wide coverage helps reduce blind spots and provides more environmental information for smart imaging systems.
Compared with standard camera lenses, this wide angle optical lens improves situational awareness for intelligent devices and enhances monitoring efficiency in dynamic environments.
Typical applications include:
The ultra wide angle design enables a single camera module to monitor larger areas, reducing the need for multiple camera installations.
Equipped with an F2.0 large aperture, the YT-5760-C1 provides strong light transmission capability, allowing the camera to capture brighter and clearer images under low-light conditions.
This feature is especially important for:
The large aperture design helps reduce image noise and improve overall image brightness, ensuring stable video performance in challenging lighting environments.
The YT-5760-C1 adopts a low distortion optical design to improve image accuracy for AI processing and machine vision analysis. Compared with traditional fisheye lenses, this low distortion camera lens reduces image deformation while maintaining a large field of view.
This makes it highly suitable for:
Accurate imaging performance helps AI algorithms achieve more reliable object recognition, path planning, and environmental analysis.
The YT-5760-C1 features a standard M12 mount design with compact optical dimensions, allowing easy integration into miniaturized camera systems and embedded imaging devices.
Its lightweight structure makes it ideal for compact products including:
The lens adopts a stable 2G4P+IR optical structure, ensuring reliable imaging consistency and long-term durability for mass production projects.
Built for demanding environments, the YT-5760-C1 supports stable operation under temperatures ranging from -20°C to +70°C. Its IP67 dustproof protection enhances reliability for automotive, industrial, and outdoor smart vision applications.
This durable wide angle camera lens is suitable for:
The robust lens structure ensures long-term performance stability even in complex operating environments.
Wintop Optics specializes in automotive lenses, robot vision lenses, AI camera lenses, and intelligent imaging solutions. With advanced manufacturing capability, strict quality control, and professional optical engineering support, we provide reliable lens products and customized optical solutions for global smart vision projects.
