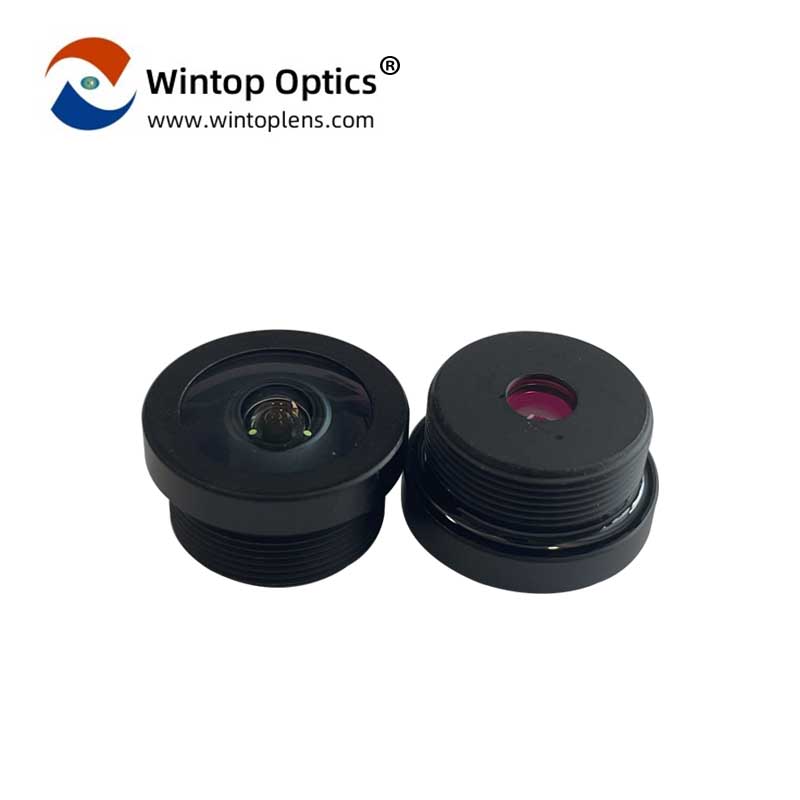

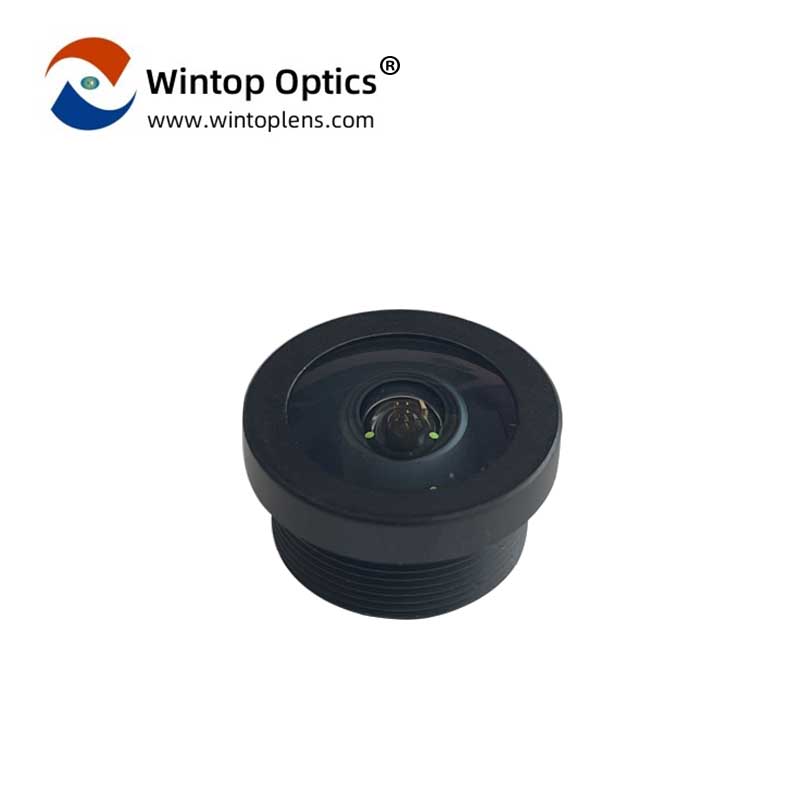

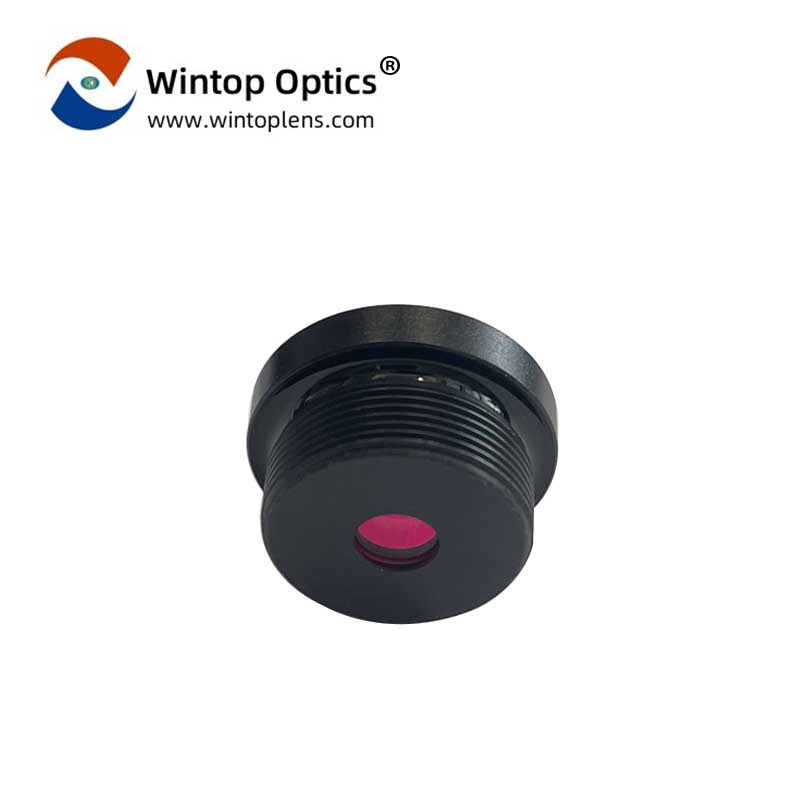

2G2P Glass-Plastic Structure 30W Pixel 176 Degree Lens is Suitable for Camera Lenses of all Models YT-5102-C1-B

  • Drive all models
  • 176 degree field of view
  • A good helper for reversing assistance
  • Item No :

    YT-5102-C1-B
  • Sensor :

    ASX340
  • F/NO. :

    2.0
  • EFL :

    1.08
  • Optical TTL :

    10.24
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    139/112/176
  • Structure :

    2G2P

YT-5102-C1-BProtect a safe journey

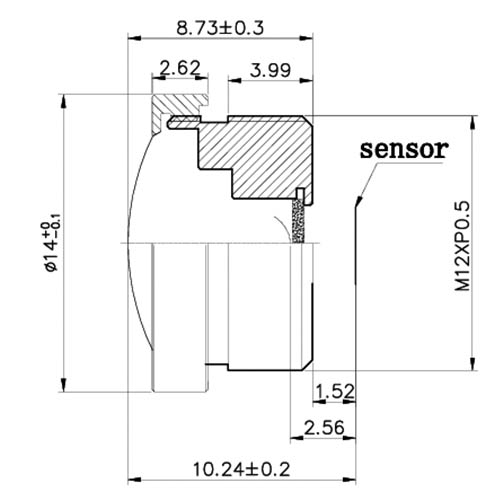

know more about YT-5102-C1-B Lens parameters
EFL (mm) 1.08
F/NO. 2.0
Optical TTL 10.24
BACK FOCAL LENGTH 5.72
FLANGE BACK LENGTH 4.81
TV DISTORTION -18%
CRA 17°
Infrared

/

WAVEIENGTH

400~700nm

Structure

2G2P




Yunding Optical YT-5102-C1-B can work normally in various bad weather conditions, such as harsh sunlight, strong rain and snow, etc. As a rearview mirror, it can provide real-time images of the driver's surroundings to help the driver get a more accurate perception. For example, the driver can observe whether other vehicles are approaching or overtaking the vehicle at the rear of the vehicle through the rearview mirror, helping to make more informed driving decisions.



The YT-5102-C1-B vehicle rearview camera lens has a total optical length of 10.24mm and a resolution of 640 * 480, giving you a wide field of view. It helps drivers observe the situation behind the vehicle, including other vehicles, pedestrians, obstacles, etc. It provides an additional perspective of the driver's blind spot and helps drivers better understand the surrounding traffic conditions.



The YT-5102-C1-B vehicle rearview camera lens is equipped with a 1.08mm focal length and 2.0 aperture, giving you a delicate and bright picture performance. It helps the driver to more easily observe the situation behind when backing up. This is very useful for driving large vehicles in tight spaces to reverse or avoid rolling over obstacles.
