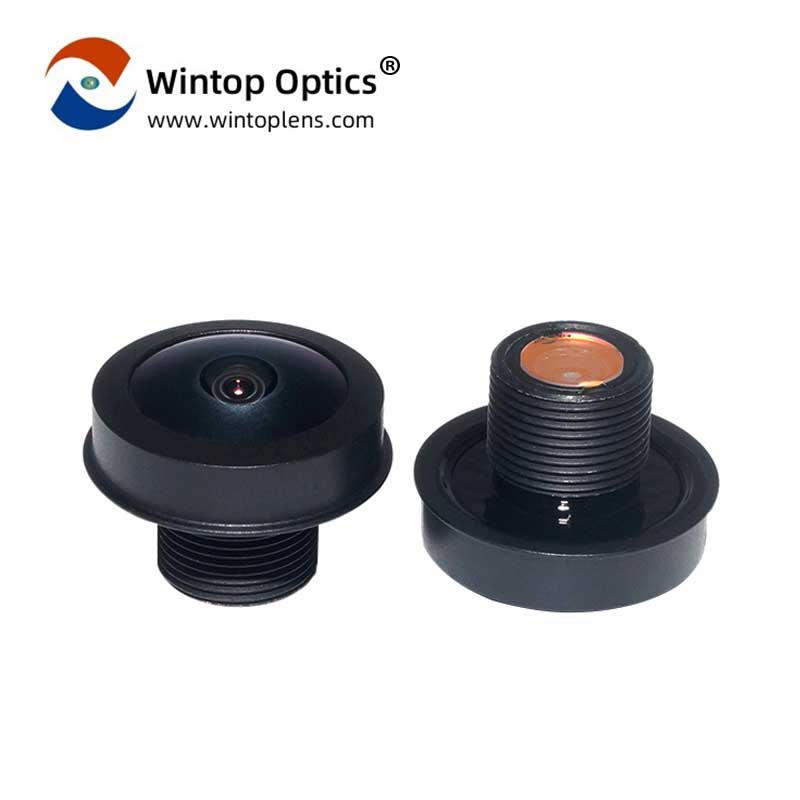

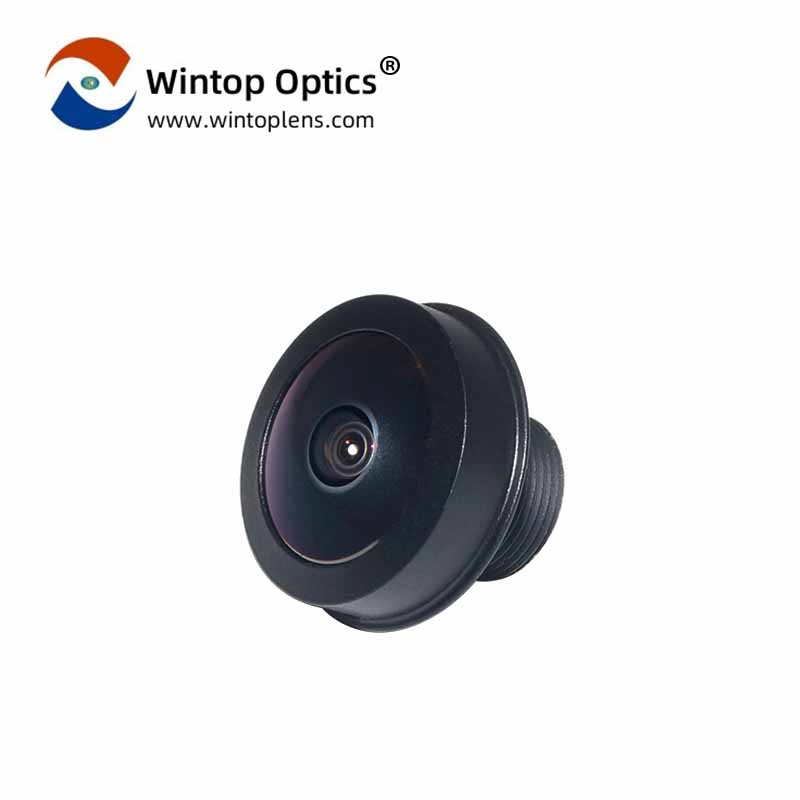

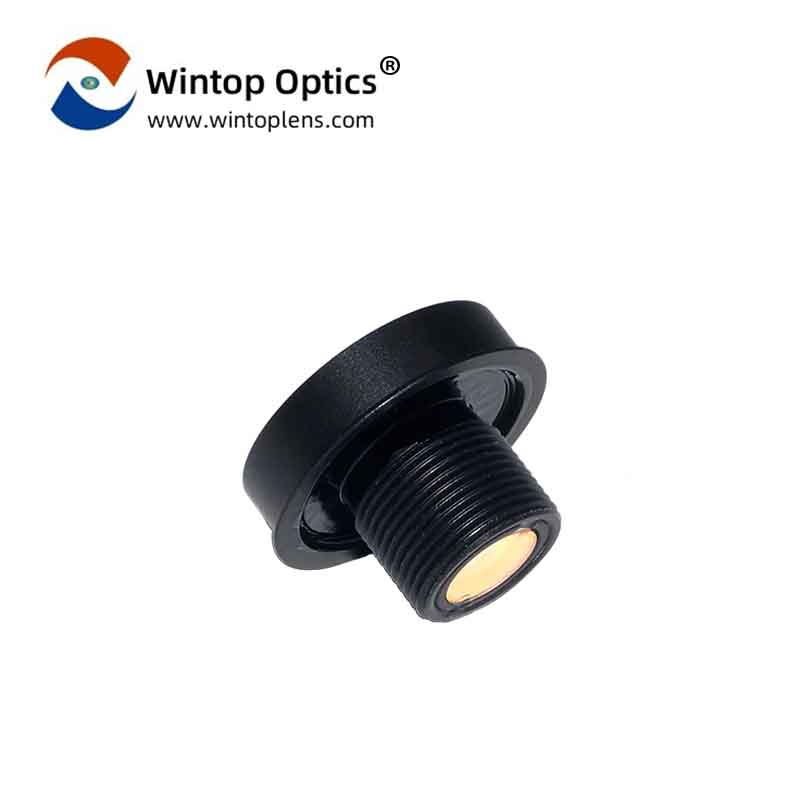

210 Degree Fisheye Lens 2k M8 Mount Board Lens YT-6023-A1

1/3'' inch sensor wide angle 5% low distortion industrial lens 170 dgeree fisheye lens 4mp m8*P0.5 mount board lens for miniature reverse camera

  • Item No :

    YT-6023-A1
  • Sensor :

    PCC030K
  • F/NO. :

    2.2
  • EFL :

    0.91mm
  • Optical TTL :

    12.91±0.3
  • Thread Size :

    M8*P0.5-6g
  • FOV(H/V/D) :

    136°/102°/174°
  • Structure :

    4G2P+IR



YT-6023-A1: The Ultimate Wide-Angle Low Distortion Lens



know more about YT-3560-H1 High-Definition Lens parameters
MAX Img-Circle (mm)
Ø3.20
EFL (mm) 0.91
F/NO. 2.2
Optical TTL 12.91
Mechanical TTL 12.91
BACK FOCAL LENGTH 2.15
FLANGE BACK LENGTH 1.4
F-Tht DISTORTION -5.7%
REL ATIVE ILLUMINATION  75%
CRA
Infrared

/

WAVEIENGTH

@420~600nm Tavg≥90%

@627土4nm T=50%

@700~1000nm Tavg≤3%

@1050nm T<5%

Structure

4G2P+IR



Experience Unparalleled Vision with the YT-6023-A1: The Ultimate Wide-Angle Low Distortion Lens



Exceptional Clarity and Color Fidelity:


The YT-6023-A1 features an F/NO2.2 aperture, ensuring that every image captured is sharp and vibrant. With true-to-life color reproduction, this lens provides an enhanced visual experience that sets a new standard for visual clarity.

Ultra-Wide Field of View and Autofocus Precision:


Boasting an optical focal length of 0.9mm and a total optical length of 12.9mm, the YT-6023-A1 offers a wide-angle perspective with autofocus capabilities. This configuration not only delivers crystal-clear images but also enhances the accuracy and efficiency of target tracking algorithms. Coupled with AI-powered analytics, this low distortion lens elevates the sophistication of intelligent surveillance systems.


Panoramic Coverage with Minimal EqHigh-Resolution Imaging:uipment:


Designed to complement the 1/3'' inch PCC030K chip (344*484), the YT-6023-A1 achieves an impressive 4 million pixels of high-definition resolution. This low distortion lens supports the transmission of high-definition video streams, ensuring a smooth and seamless monitoring experience. The integration of AI algorithms further enhances the capabilities of intelligent surveillance, providing insights beyond the realm of traditional monitoring.

Panoramic Coverage with Minimal Equipment:


With a stunning 174-degree focus angle, both horizontally and vertically, the YT-6023-A1 optimizes the layout of surveillance equipment. Its expansive field of view reduces the need for multiple devices, leading to a more streamlined and cost-effective surveillance setup. By minimizing distortion, this lens ensures that every corner is covered, leaving no area unmonitored.

Versatile Application Across Industries:


The YT-6023-A1 is not limited to a single application; its adaptability makes it suitable for a wide range of scenarios including vehicular, security, and drone applications. Its broad market adaptability ensures that no matter which industry you are in, YT-6023-A1 can provide excellent visual solutions



Durable and Low-Maintenance Design:


Equipped with an M8*P0.5 thread, this lens is engineered for durability and ease of integration. High-quality lens components reduce the frequency of maintenance and replacement, lowering long-term operational costs. The clarity of the image it provides makes remote monitoring not only possible but a breeze, enhancing the flexibility of surveillance operations.

The YT-6023-A1 is more than just a lens; it's a cutting-edge tool that redefines the boundaries of visual intelligence. Choose the YT-6023-A1 for a panoramic view that leaves no detail unnoticed and no moment unaccounted for. Embrace the future of surveillance with the YT-6023-A1, where every angle counts and every pixel matters.
