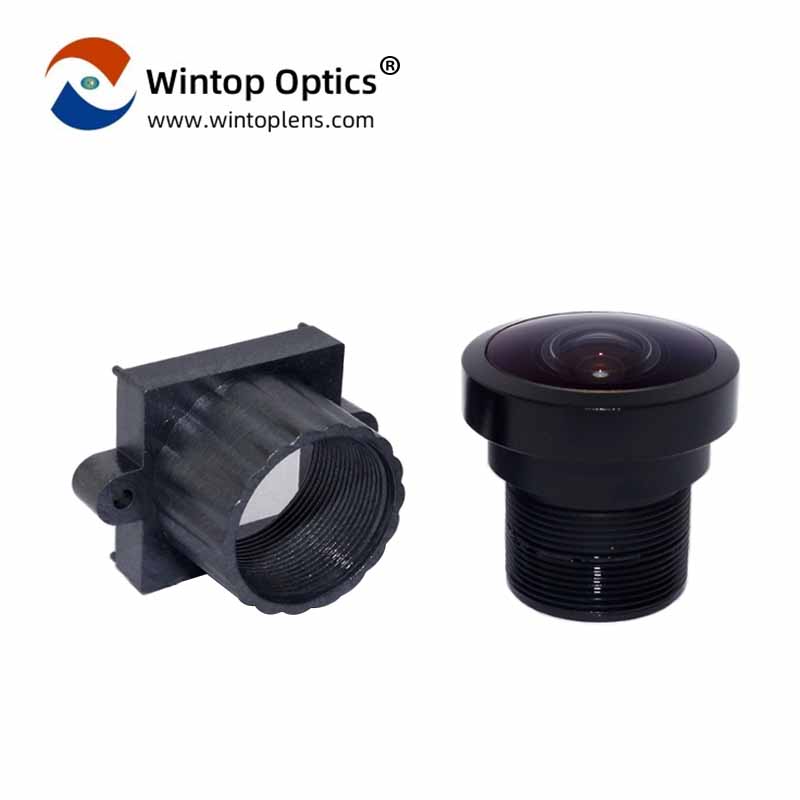

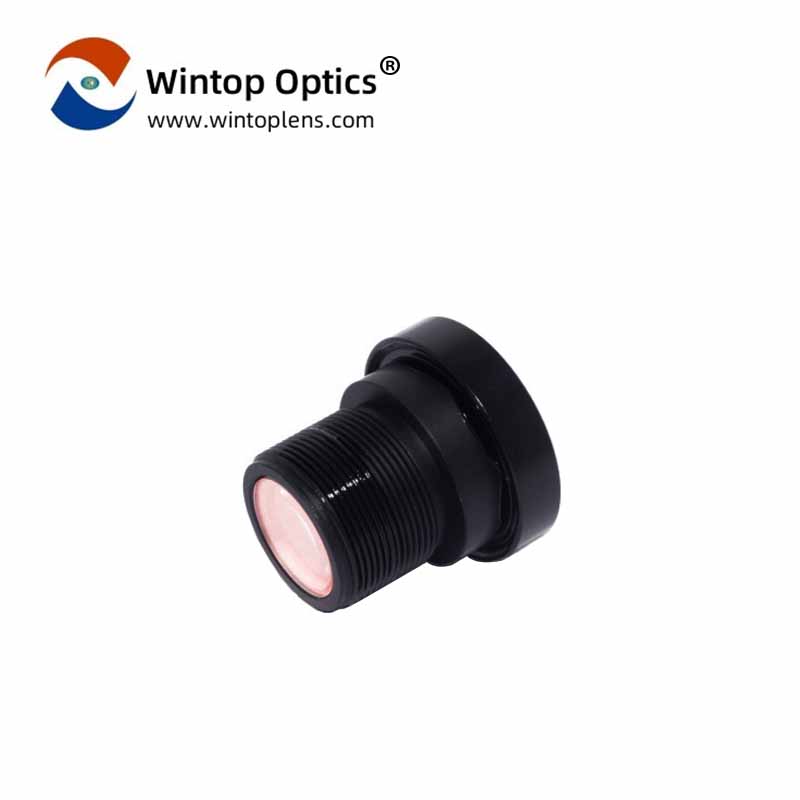

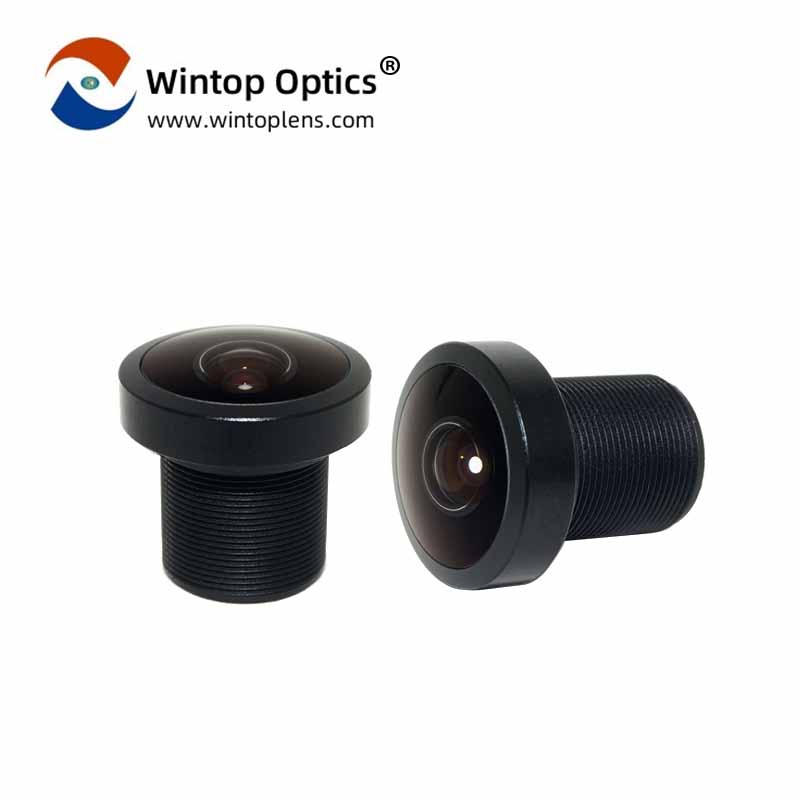

m12 140 Degree Intelligence Robot Monitoring Lens YT-1700-H1

  • 2024 New 12 megapixel 4k F2.8 m12 mount uav fisheye lens for agriculture
  • Drone camera m12 140 degree intelligence robot monitoring lens
  • Item No :

    YT-1700-H1
  • Sensor :

    OV10640
  • F/NO. :

    2.8
  • EFL :

    3.16mm
  • Optical TTL :

    23.4
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    104°/87°/142°
  • Structure :

    6G+1IR



YT-1700-H1: A High-Definition Lens Revolutionizing Visual Clarity



know more about YT-1700-H1 Robot Monitoring Lens parameters
SENSOR SIZE
OV10640(1280*1080)
WAVELENGTH 400~1100
FOCAL LENGTH (EFL) 3.16mm
F/NO (INFINITE)  2.8
BACK FOCAL LENGTH 6.22mm
FLANGE BACK LENGTH 5.18mm
FIELD OF VIEW(D) 142°(∅7.03)
FIELD OF VIEW(H) 104°(∅5.37)
FIELD OF VIEW(V)  87°(∅4.53)
TV DISTORTION <-20%
THREAD SIZE M12*P0.5
STRUCTURE
6G+1IR
RELATIVE ILLUMINATION
>95%
CRA

WAVEIENGTH

 Tavg>=90% @420~620nm

T=50% @650±10nm

Tavg<=3%  @700~1000nm

Tavg<5%    @1050nm



Unmatched Visual Performance for Diverse Applications


Wintop Optics proudly presents the YT-1700-H1, a high-definition lens meticulously engineered for excellence across various fields including video conferencing, facial recognition, and intelligent robotics. Leveraging cutting-edge optical technology, the YT-1700-H1 pairs seamlessly with the OX10640 (1280*1080) sensor to deliver stunningly clear images with a resolution of up to 12 megapixels. This ensures that every facial expression and detail are crisply captured during video conferences, significantly enhancing communication efficiency and quality.



Optimized for Swift and Precise Focus


The YT-1700-H1 boasts an optical focal length of 3.16mm and an overall lens length of 23.4mm, complemented by a standard M12*P0.5 thread structure. Our high-definition lens is equipped with fast and accurate autofocus capabilities, essential for applications in facial recognition and intelligent robotics that demand quick identification and response.

Exceptional Wide Dynamic Range (WDR)


With its advanced WDR technology, the YT-1700-H1 preserves image details even in scenes with extreme contrast. This feature is crucial for the navigation and recognition tasks of intelligent robots operating in complex environments, ensuring that every detail is captured with precision.


Ultra-Wide Angle for Comprehensive Coverage


The YT-1700-H1's ultra-wide-angle lens offers a field of view exceeding 100 degrees, covering a vast area and providing a comprehensive monitoring perspective. Whether it's for surveillance or environmental perception, this lens ensures that nothing escapes the watchful eye of your system. The wide angle view provided by high-definition lenses enables video conferencing systems to capture a wider range of scenes, and in the field of intelligent robots, wide angle lenses help provide more comprehensive environmental perception.

Outstanding Color Reproduction


The lens's relative illumination of over 95% ensures exceptional color reproduction, rendering natural and accurate colors. The YT-1700-H1 is designed to capture the true essence of every scene, making it the perfect choice for applications where color fidelity is paramount.

Constructed for Optimal Performance


Composed of six glass elements and a 650nm IR filter, the YT-1700-H1 is engineered for performance across the spectrum, with a wavelength range of 400-1000. This construction ensures clarity and consistency, providing users with high-quality imagery that stands the test of time.


The YT-1700-H1 from Wintop Optics is not just a lens; it's a statement of precision, reliability, and technological prowess. Choose the YT-1700-H1 for your high-definition needs and experience the difference that superior optics can make.
