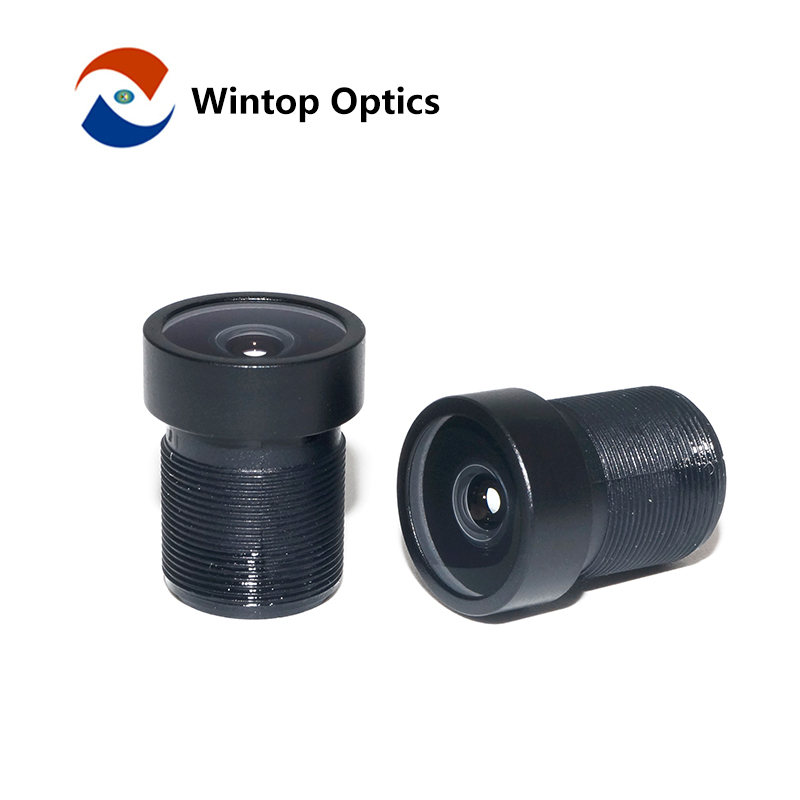

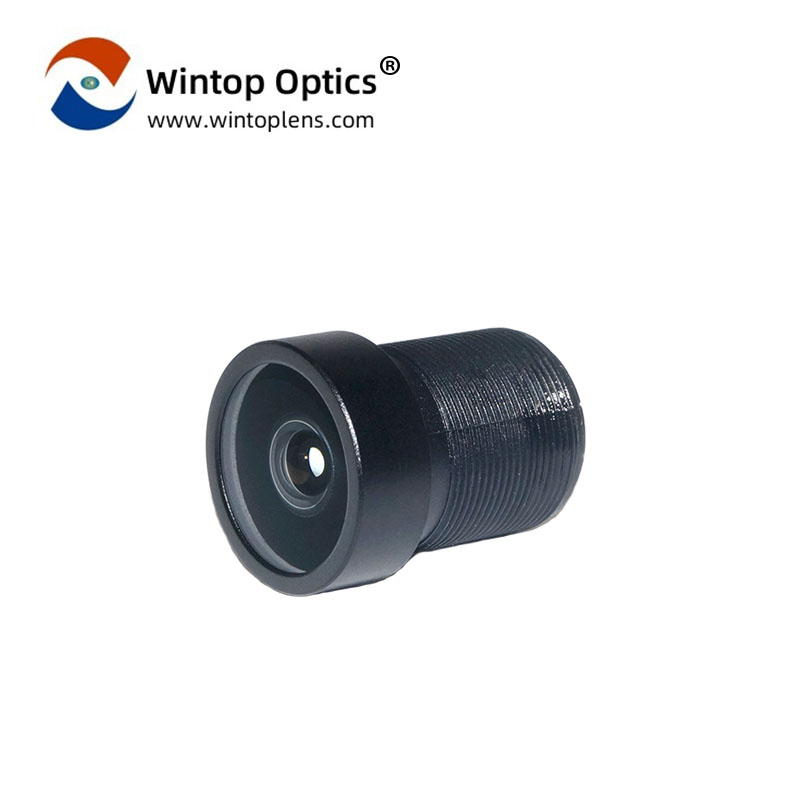

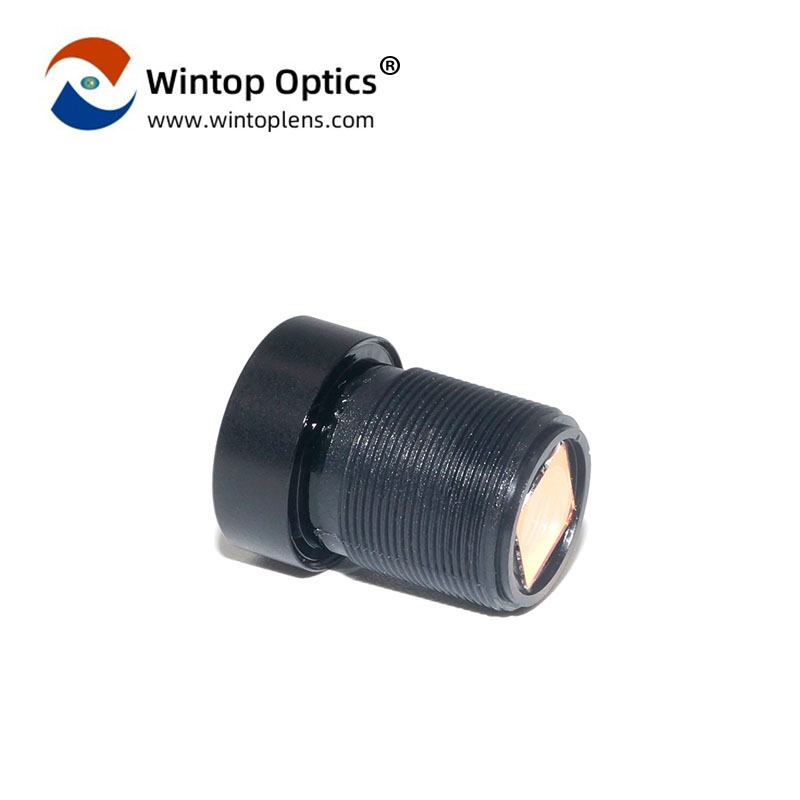

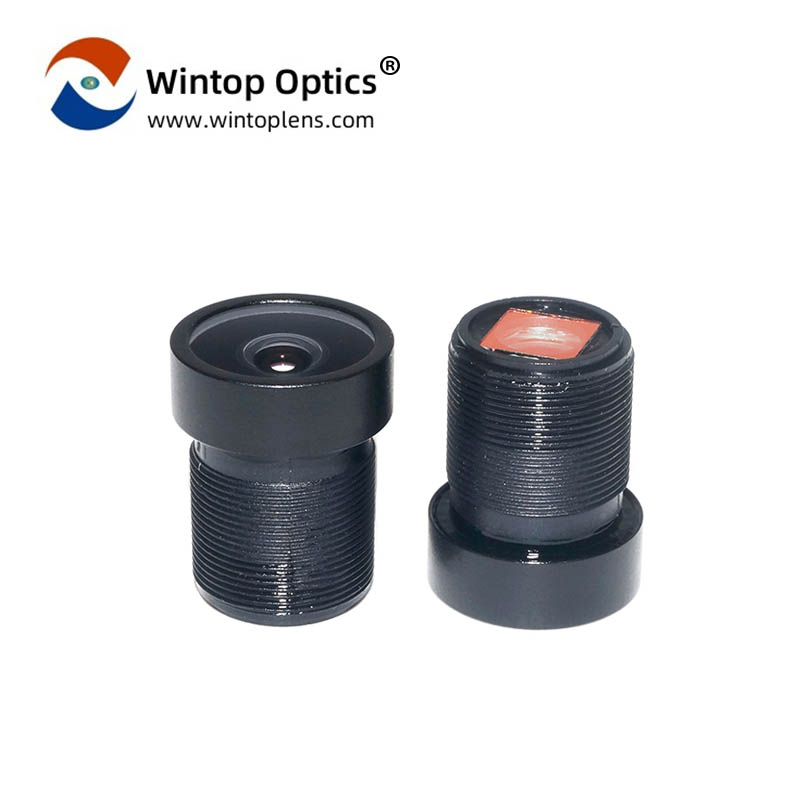

1/2.7''inch format OV4689 OV2710 car dvr lens YT-1711P-C1

Automotive lens manufacturers supply 1/2.7''inch format OV4689 OV2710 car dvr lens with 650mm IR cut filter for auto photograph

  • Item No :

    YT-1711P-C1
  • Sensor :

    GC2053
  • F/NO. :

    1.8
  • EFL :

    3.18mm
  • Optical TTL :

    20.93
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    108°/57°/130°
  • Structure :

    5E



YT-1711P-C1: The Ultimate Dashcam Lens for Unmatched Clarity and Safety



know more about YT-1711P-C1 car dvr lens parameters
Sensor Size(mm)
1/2.7"
Focal Length(EFL) 3.18mm
F/NO.(Infinite) 1.8
Optical TTL 20.93
Mechanical TTL 20.93
Back Focal Length 4.62
Flange Back Length 3.24
TV Distortion <-19%
Relative Illumination =50%
Storage Temperature -30℃~+85℃
CRA 17°
Wave Length

420~600nm  T≥90%

650±10nm    T=50%

700~1000nm   T≤3%

1050nm     T<5%



Capture the Night with Confidence


Our YT-1711P-C1 dashcam lens is engineered with cutting-edge optical technology that thrives in low-light conditions. Boasting an impressive F1.8 aperture, this lens ensures that every detail is captured with clarity and balanced brightness, even during nighttime drives. Say goodbye to grainy footage and hello to a new level of nighttime Driving safety.



Precision Auto-Focus


Crafted with a 3.18mm optical focal length and an overall length of 20.93mm, the YT-1711P-C1 utilizes advanced auto-focus technology to adjust focal lengths swiftly, ensuring that every frame is crisp and sharp. With this high-end dashcam lens, your drive is always in focus.

High-Definition Clarity


Powered by the GC2053 chip (1920*1080), the YT-1711P-C1 delivers four million pixels of pristine clarity. Experience high-resolution imaging with support for 1080p, 4K, and beyond. The lens height of 7mm ensures that every detail is captured with striking detail, making your recorded videos vivid and lifelike.


Ultra-Wide Field of View


The YT-1711P-C1 offers an expansive 130° diagonal field of view, providing a panoramic coverage of the road ahead. With Wintop Optics' dashcam lenses, you can expect a super-wide angle that exceeds 100 degrees, minimizing blind spots and ensuring comprehensive car recorder.

Sealed for All Conditions


Designed to withstand the rigors of the road, the YT-1711P-C1 dashcam lens is built with exceptional sealing capabilities. Whether you're driving through rain, dust, or any other element, this lens is crafted to keep your dashcam protected, ensuring reliable performance every time.

Effortless Integration


Featuring a standard M12*P0.5 thread structure, the YT-1711P-C1 is simplicity itself when it comes to installation. Our dashcam lenses are designed for quick and easy setup, allowing you to start recording with minimal fuss. Customization is also available to meet your specific needs.


Choose the YT-1711P-C1 for a dashcam experience that is second to none. With Wintop Optics, you're not just getting a lens; you're getting a commitment to quality, clarity, and driving safety.
