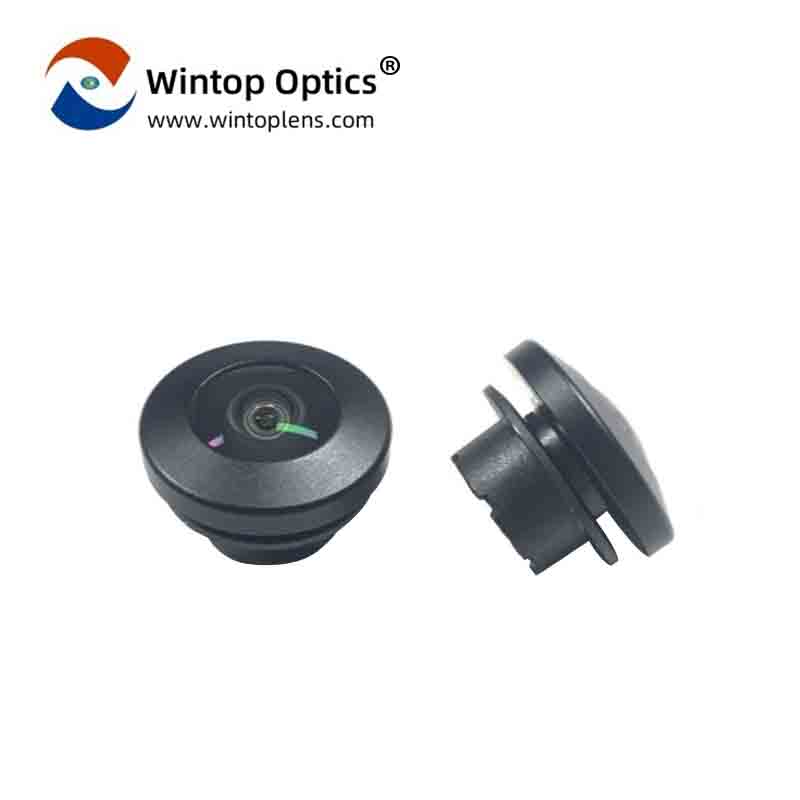

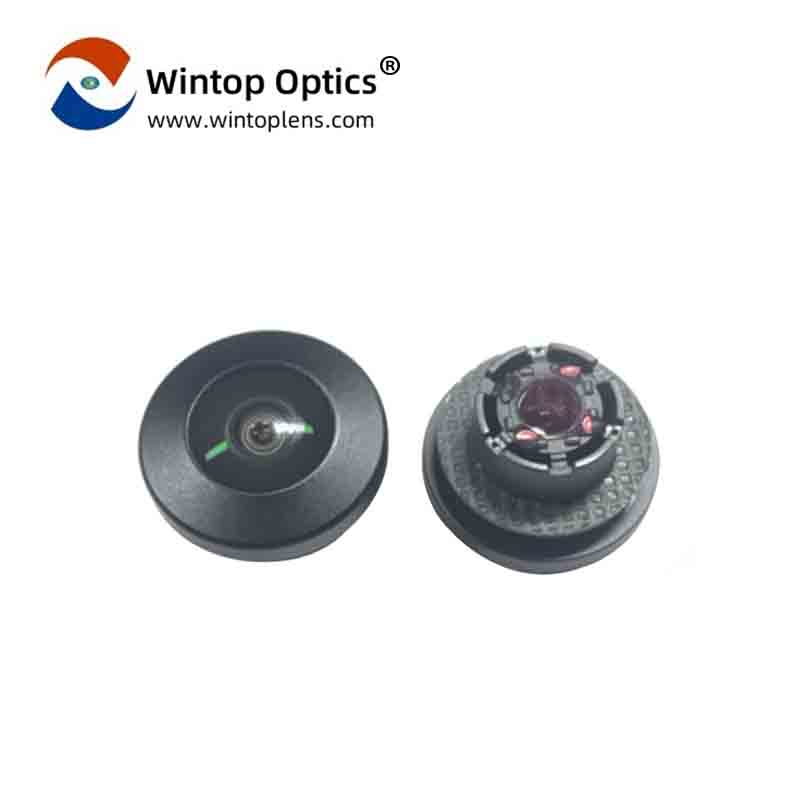

1/3'' f/1.6 Big Aperture m12 Wide Angle Smt Lens YT-7060P-H1-A

  • 2024 New design 1/3'' f/1.6 big aperture m12 wide angle smt lens for surround view camera system
  • CCTV camera lens fisheye barcode reader lens
  • Item No :

    YT-7060P-H1-A
  • Sensor :

    IMX225
  • F/NO. :

    1.6
  • EFL :

    1.32mm
  • Optical TTL :

    13.34
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    200°/144°/200°
  • Structure :

    3G3P+IR



YT-7060P-H1-A: The Vanguard of Large Aperture Lenses by Wintop Optics



know more about YT-7060P-H1-A Large Aperture Lenses parameters
MAX Img-Circle (mm)
Ø4.8
EFL (mm) 1.32
F/NO. 1.6
Optical TTL 13.34
Mechanical TTL 13.34
BACK FOCAL LENGTH 2.38
FLANGE BACK LENGTH 1.35
TV DISTORTION -43%
REL ATIVE ILLUMINATION  ≥65%
CRA 10°
Pixel Size (μm) 3.75*3.75
Storage At Temperature
-40°C~+85°C
Recent Camera Distance 0.2M
Infrared

No

WAVEIENGTH

@420~610nm Tavg≥90%

T=50% @650土10nm

Waterproof Level

IP69K



Unmatched Resilience in Harsh Environments


Wintop Optics' YT-7060P-H1-A is engineered to thrive where conditions are at their toughest. With an F1.6 aperture, this large aperture lens is not only a marvel of optical design but also a testament to our commitment to durability. Rated at an IP69K level, this lens is fortified with exceptional sealing and weather resistance, ensuring unwavering performance through rain, snow, extreme heat, and biting cold. It's the steadfast sentinel for your automotive cameras and security monitoring equipment, no matter the climate.



Night Vision Excellence


Crafted with a 1.32mm optical focal length and a compact 13.3mm optical total length, the YT-7060P-H1-A lens is a paragon of high-light sensitivity. It excels in low-light conditions, delivering superior night vision capabilities that are crucial for round-the-clock security surveillance and nighttime driving. With Wintop Optics, the darkness is no longer an obstacle to clarity and safety.

High-Definition Clarity with IMX225 Compatibility


Pairing seamlessly with the IMX225 sensor (1280*960), the YT-7060P-H1-A lens elevates your imaging to 2 million HD pixels. Wintop's commitment to quality ensures that our large aperture lenses enhance the overall performance of your automotive and security systems. Enjoy sharp image clarity, swift response times, and unmatched reliability – the hallmarks of Wintop Optics' technology.


Color Accuracy and Depth of Field Mastery


Our lenses are renowned for their color fidelity, bringing forth images that are as close to reality as the human eye can perceive. The YT-7060P-H1-A's large aperture design allows for exquisite control over depth of field, rendering subjects in sharp relief against softly blurred backgrounds. This distinction not only enhances image recognition but also bolsters the security of your surveillance solutions.

Extended Field of View for Comprehensive Surveillance


The YT-7060P-H1-A is equipped with a wide-angle function that extends the field of view to over 200 degrees, both diagonally and horizontally. This expansive coverage is invaluable for panoramic automotive surveillance and security monitoring, significantly reducing blind spots and improving the efficiency of your surveillance operations.

Versatile and Intelligent Design


Featuring an adaptable AA structure thread and the option for an M12 thread, the YT-7060P-H1-A lens is designed with flexibility in mind. Its robust construction is tailored for longevity and dependable service in continuous operation and diverse environmental conditions. Moreover, this modern lens integrates advanced intelligent features such as facial recognition and behavior analysis, elevating the sophistication of your security measures.



In Summary, The YT-7060P-H1-A from Wintop Optics is more than just a lens – it's a beacon of innovation, a guardian of clarity, and a partner in security. With its unparalleled resilience, high-definition clarity, and intelligent features, it stands as the pinnacle of large aperture lens technology. Trust Wintop Optics to illuminate your path with precision and reliability.
