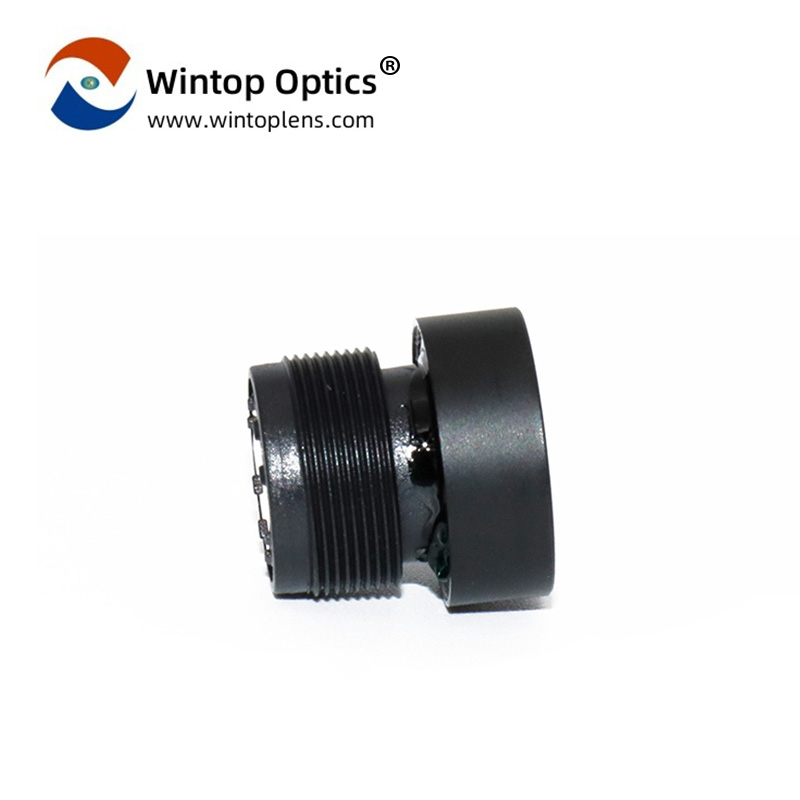

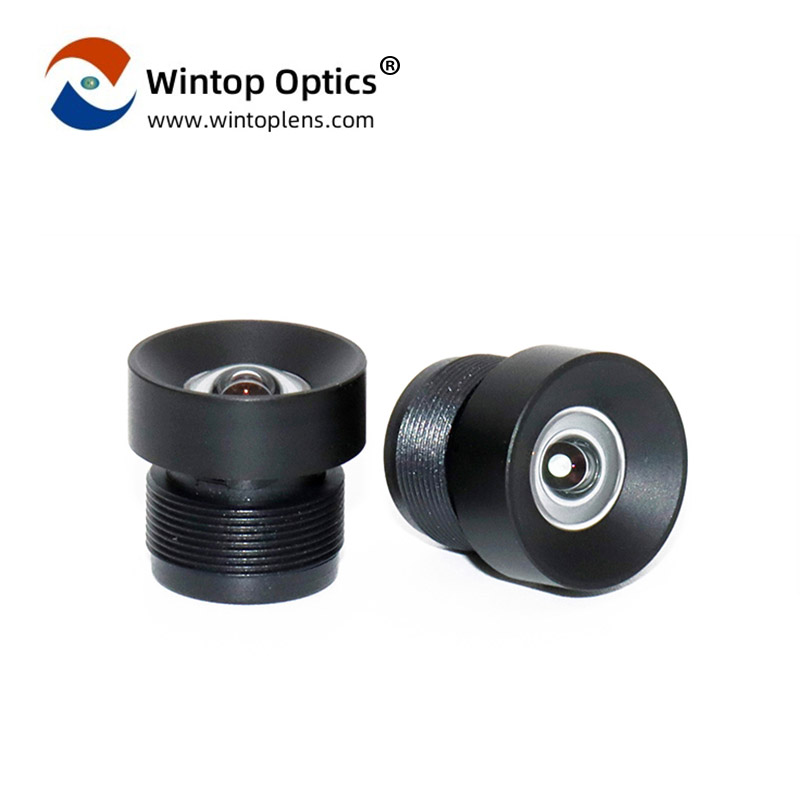

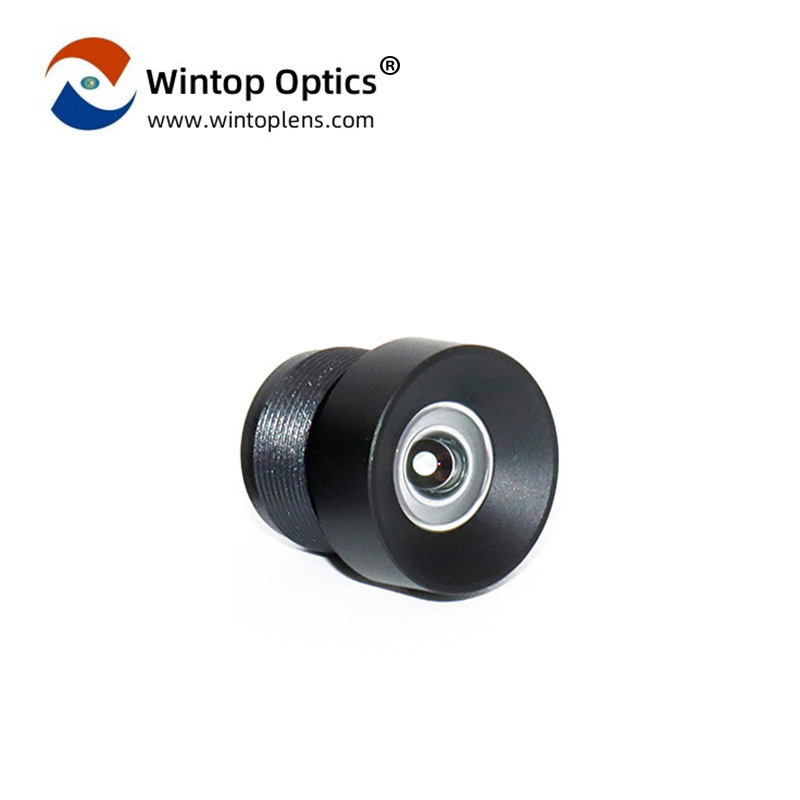

2mp m12 Mount Macro Board Lens YT-3551P-C1

  • Manufacturer 1/2.5 inch lens
  • 2mp M12 mount macro board lens
  • Low distortion 2.9mm cctv lens for cctv security ip cameras
  • Item No :

    YT-3551P-C1
  • Sensor :

    JX-F37
  • F/NO. :

    2.4
  • EFL :

    2.96mm
  • Optical TTL :

    14.59
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    84°/52°/93°
  • Structure :

    2G2P+1IR



YT-3551P-C1: A Low Distortion Lens for Enhanced Visual Clarity



know more about YT-3551P-C1 Low Distortion Lens parameters
MAX Img-Circle (mm)
Ø7.8
EFL (mm) 2.96
F/NO. 2.4
Optical TTL 14.59
Mechanical TTL 15.63
BACK FOCAL LENGTH 3.21
FLANGE BACK LENGTH 1.67
TV DISTORTION <-1.5%
REL ATIVE ILLUMINATION  ≥80%
CRA 19°
Pixel Size (μm)
2.7um*2.7um
Storage At Temperature
-30℃~+80℃
Recent Camera Distance
0.2M
Infrared

Non-infrared

WAVEIENGTH

@650±10nm Tavg≥90%

Dust Level

IP6X

Structure

2G2P+1IR



Exceptional Imaging Circle


The YT-3551P-C1 boasts an impressive imaging circle of 7.8mm, ensuring that every detail is captured within the frame for a comprehensive visual experience.

Optimal Optical Design


With an optical focal length of 2.96mm and a compact total length of 14.6mm, this low distortion lens is engineered for precision and efficiency. Its compact size does not compromise on performance, making it ideal for a variety of applications.


High-Definition Clarity


Matched with the JX-F37 chip (1920*1080), the YT-3551P-C1 delivers 2 million pixels of high-definition clarity. The low distortion lens provides crisp, clear images that enhance surveillance quality and recognition accuracy, particularly in low light or nighttime conditions.

Broad Field of View


Achieving a diagonal field of view of 93 degrees, horizontal 84 degrees, and vertical 52 degrees, this lens significantly reduces distortion, offering a wider perspective that covers more surveillance areas without missing any critical details.

Versatile Applications


The YT-3551P-C1 is designed for applications that demand high precision, such as facial recognition, smart doorbell locks, and action camera photography. Its low distortion ensures that image edges remain as clear as the center, making it suitable for scenarios that require detailed monitoring under various lighting and weather conditions.



Robust Construction


Featuring an M12 screw thread and excellent dust protection, the lens is built to last. Its structure comprises 2 glass lenses, 2 plastic lenses, and a 650nm filter, ensuring durability and consistent performance.



Enhanced Image Stability


With a relative illumination of over 80%, the YT-3551P-C1 reduces the need for extensive post-processing, lowering costs and time. The lens design contributes to improved image stability, minimizing blur caused by vibrations or movement.

The YT-3551P-C1 is not just a lens; it's a testament to Wintop Optics' commitment to innovation and quality. It's a choice that elevates your surveillance and imaging capabilities, ensuring that every moment is captured with the clarity and precision it deserves. Choose the YT-3551P-C1 for a smarter, safer view of your world.
