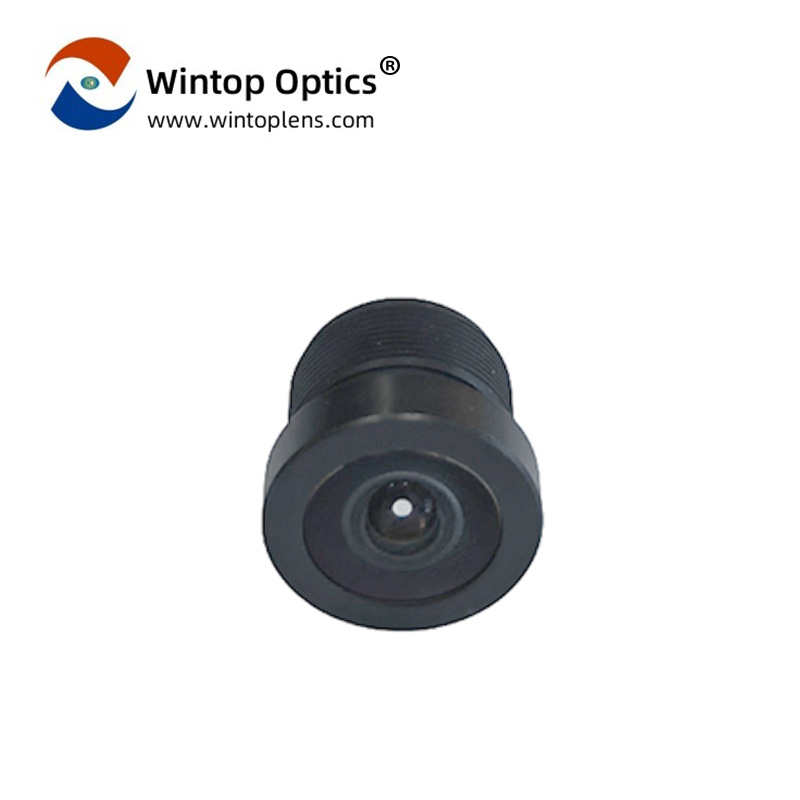

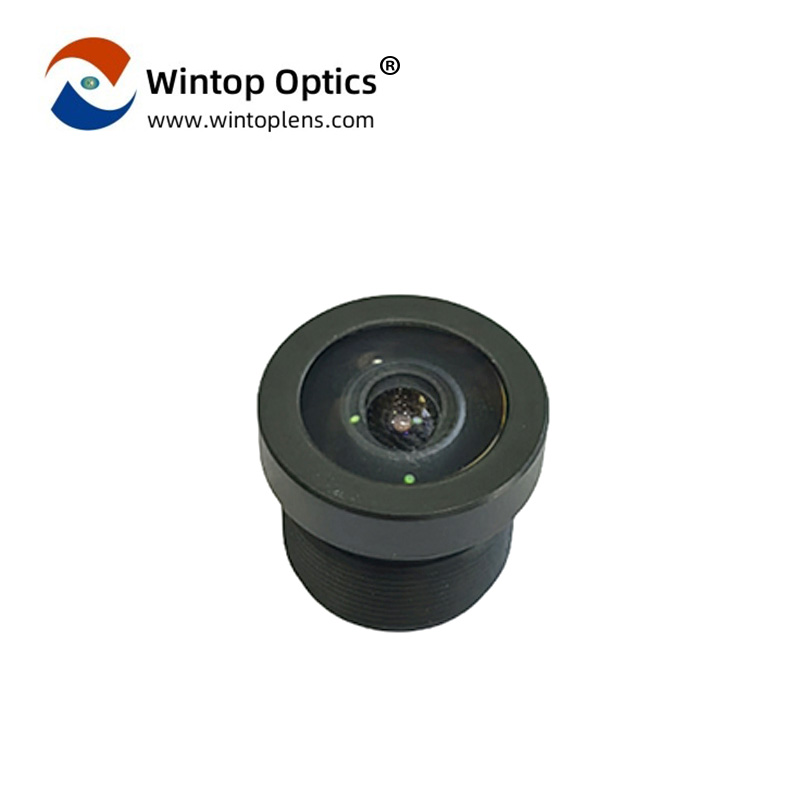

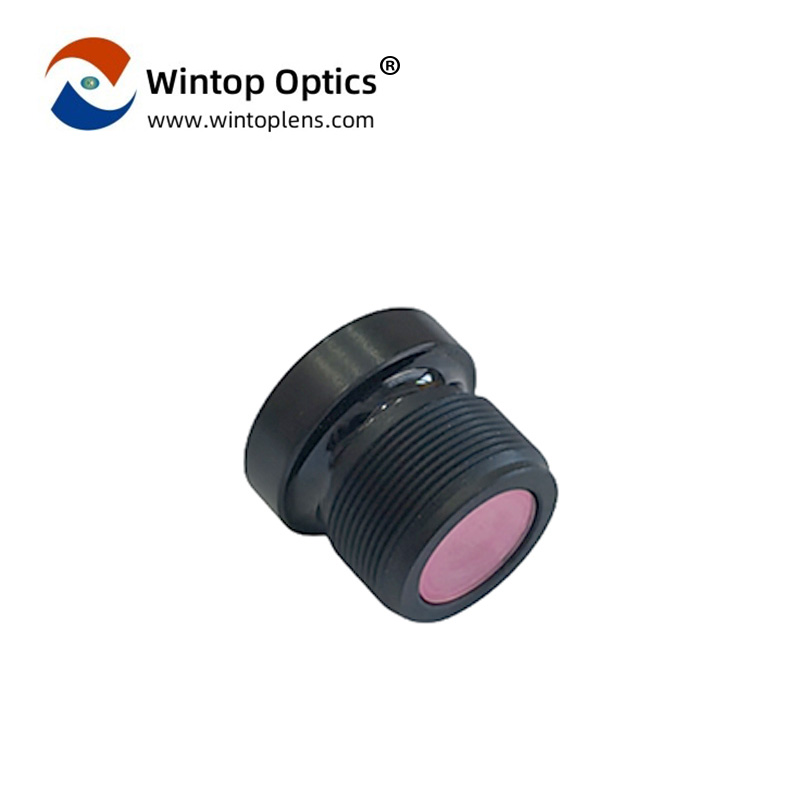

M12 Lens Manufacturer 6G+IR Intelligent Electronic Device Monitoring Lens Facial Recognition Lens YT-7559-C1

  • 360 degree panoramic high definition night vision camera lens
  • Smart home gimbal indoor mobile phone remote monitoring camera lens
  • Smart home network video recorder camera lens
  • Item No :

    YT-7559-C1
  • Sensor :

    PXA210K(1960*1120)
  • F/NO. :

    2.2
  • EFL :

    2.25
  • Optical TTL :

    16.85
  • Thread Size :

    M12X P0.5
  • FOV(H/V/D) :

    145/81/170
  • Structure :

    6G +IR
know more about YT-7559-C1 Smart Home lens parameters
Img Circle(mm) ∅6.37
Focal Length(EFL) 2.25
F/NO.(Infinite) 2.2
Optical TTL 16.85
Mechanical TTL 16.85
Back Focal Length 4.74
Flange Back Length 3.75
TV Distortion <-25%
Storage Temperature -40℃~+85℃
CRA 15.8°
Recent Camera Distance 0.2
Infrared /
Dust Level

IP67



IP67 Waterproof Camera Lenses:

Surveillance systems usually need to be installed in outdoor environments. IP67 rated security camera lenses can effectively deal with the challenges of outdoor environments such as rain, atmospheric humidity, dust and particulate matter, etc. They can operate properly in extreme temperature conditions and can withstand a certain degree of physical shock.

6G Construction Composition Durability:

Monitoring camera lenses typically have durable enclosures and sealed designs that protect internal components from dust, dirt, and humidity. This allows camera lenses to operate in harsh environments for long periods of time without fear of damage or performance degradation.

Optical Image Stabilization (OIS):

The YT-7559-C1 has good image stabilization. It uses optical components to compensate for shake and shake when holding the camera, and stabilizes the image by fine-tuning the position of the camera lens or optical components. Optical image stabilization can reduce the effects of blurring and shake.

Multi-angle monitoring:

The panoramic surround camera lens can provide image information from multiple perspectives and can capture target behavior from different angles. This is very useful for scenes such as security monitoring, traffic monitoring or crowd management, and can provide more comprehensive information.

Provides security protection:

The YT-7559-C1 has good night vision. In night or dark environments, the night vision function of the smart home surveillance lens can help detect and record potential intruders or other security threats. Night vision function allows the monitoring system to see details and capture unusual or suspicious activities that may occur.

lts products are mainlyused in high-end imaging fields such as automotive monitoring camera lens, Car DVR lens, vehicleADAS/CMS /OMS lens, security surveillance cctv lenses, intelligence home devices lens,lowdistortion sport camera lens, face recognition lens and wide angle fisheye lenses etc.
