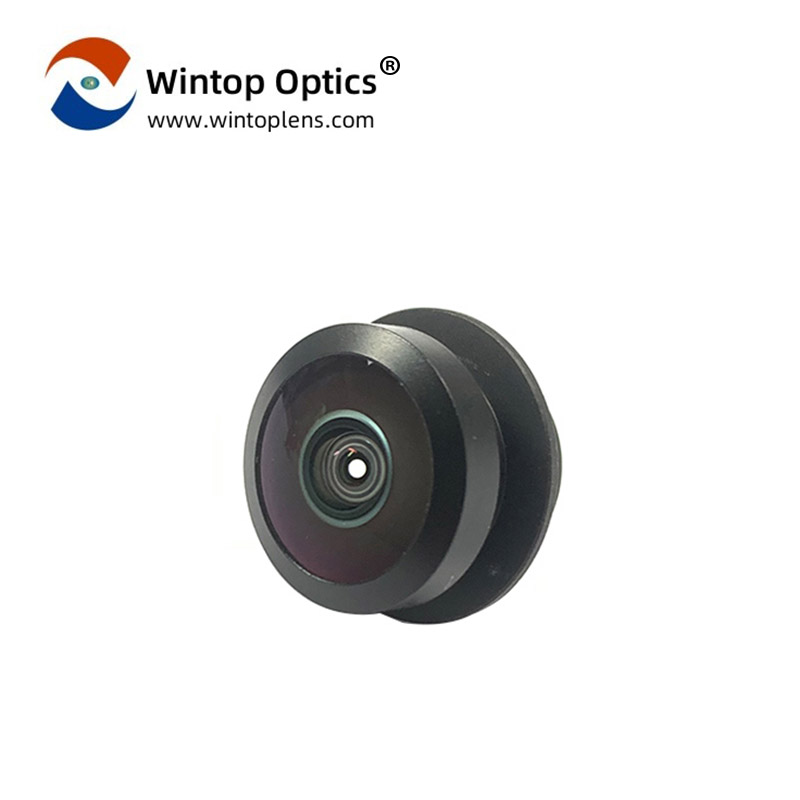

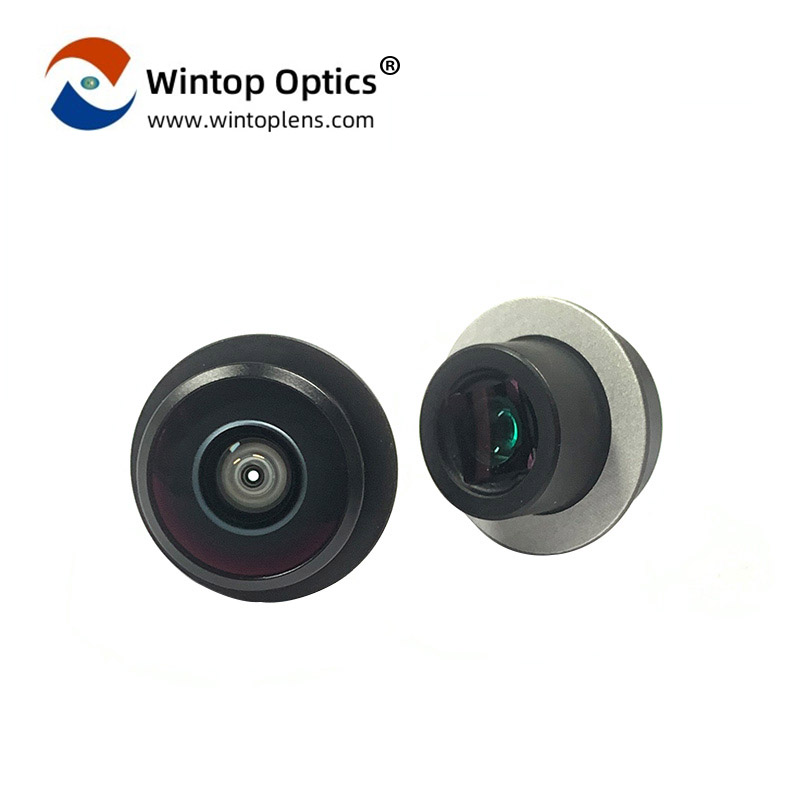

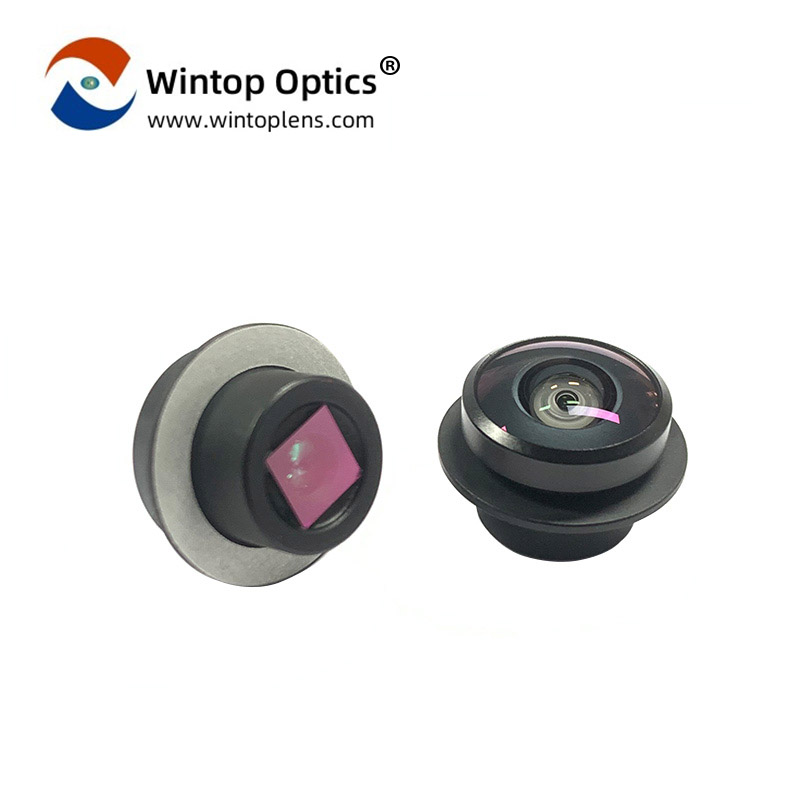

IP69K Hfov 200 degree F2.0 automotive surround view AA lenses YT-7065-J8-A

The Vanguard of Vehicle Panoramic Imaging Lens Solution

High-Resolution Integration:

The YT-7065-J8-A panoramic lens pairs seamlessly with the OX01F10 chip, boasting a 1/4" inch sensor and 3 million clear pixels for exceptional image clarity. With a lens height of 4mm, it captures every detail with precision, providing a crystal-clear view that sets a new standard in panoramic surveillance.

Compact and Powerful Optics:

This wide-angle fisheye lens features an optical focal length of 0.95mm and an optical total length of 13.00±0.3mm, coupled with a back focal length of 2.25mm and a flange back length of 1.46mm. The compact design belies its powerful capability to deliver a panoramic view that encompasses every angle.

Stellar Low-Light Performance:

Equipped with an F1.6 large aperture, the YT-7065-J8-A is a starlight lens that maintains superior image quality even in low-light conditions. Its excellent night vision capabilities make it ideal for round-the-clock surveillance, ensuring that no detail is missed, regardless of the lighting.

Expansive Field of View:

The lens offers an incredibly wide field of view, with a diagonal angle exceeding 200 degrees and a horizontal angle of 195 degrees, complemented by a vertical angle of 151 degrees. This ensures comprehensive coverage, capturing the full scope of your environment.

Extreme Temperature Resilience:

Designed for versatility, the YT-7065-J8-A can withstand storage temperatures ranging from -40℃ to +85℃. With a CRA angle of 10.8 degrees and a relative illuminance of over 38%, it maintains performance and clarity in the most demanding conditions.

Advanced Construction for Ultimate Durability:

Featuring an AA structure, the lens is rated IP69K for waterproof and dustproof capabilities, making it suitable for the harshest environments. The inclusion of a blue glass filter effectively addresses issues with stray light, while the lens provides a transmission rate greater than 90% within the 420-620nm spectral band, ensuring optimal light transmission for clear and vibrant imagery.

The YT-7065-J8-A is a beacon of innovation in panoramic imaging. With its unparalleled field of view, robust construction, and high-resolution capabilities, it's the ultimate choice for those who seek the best in surveillance and panoramic photography. Experience the future of imaging with the YT-7065-J8-A – where every angle is covered.
