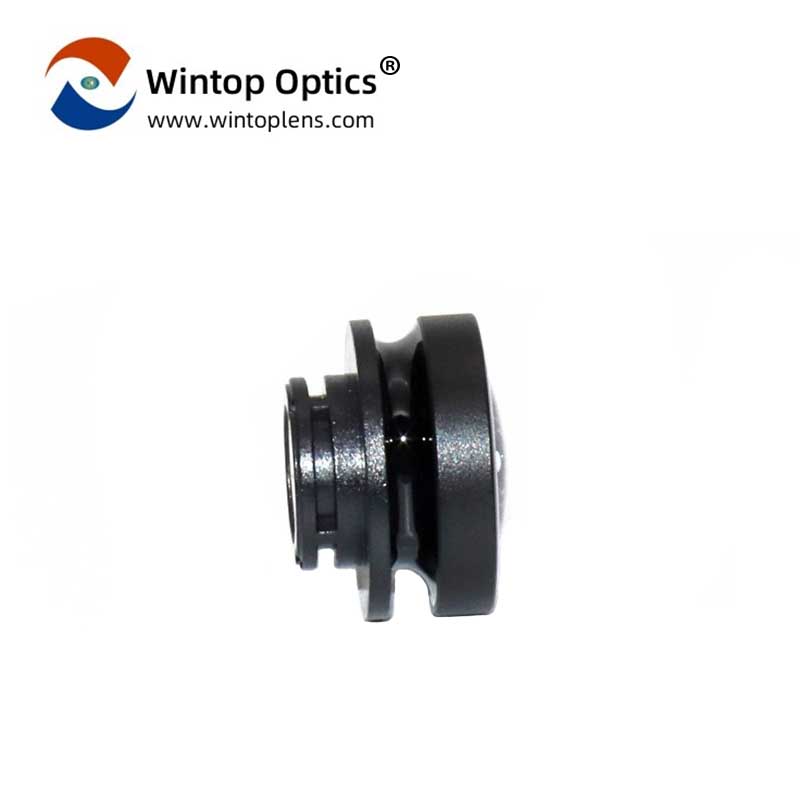

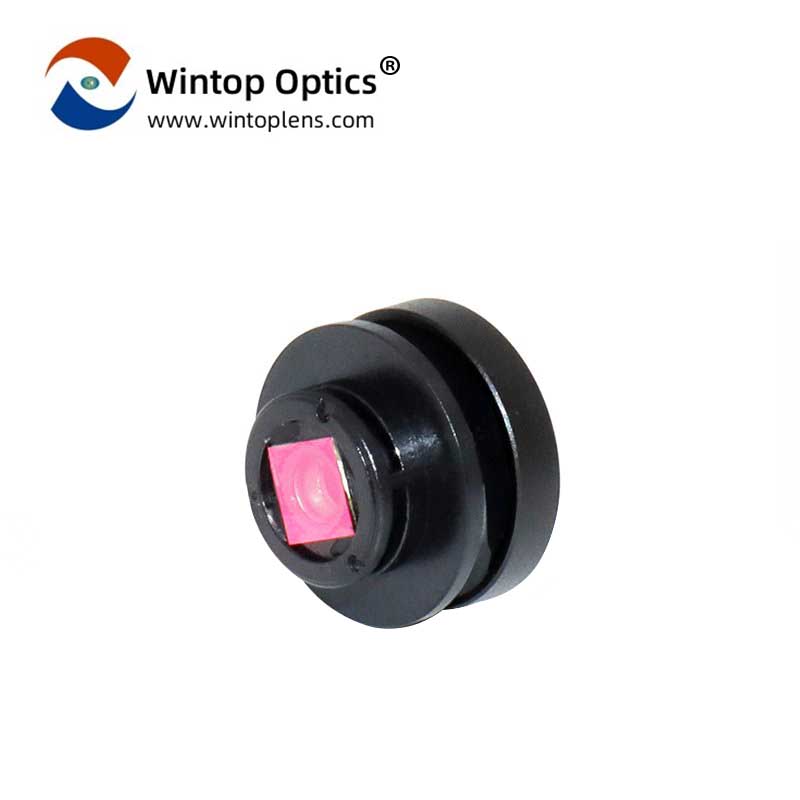

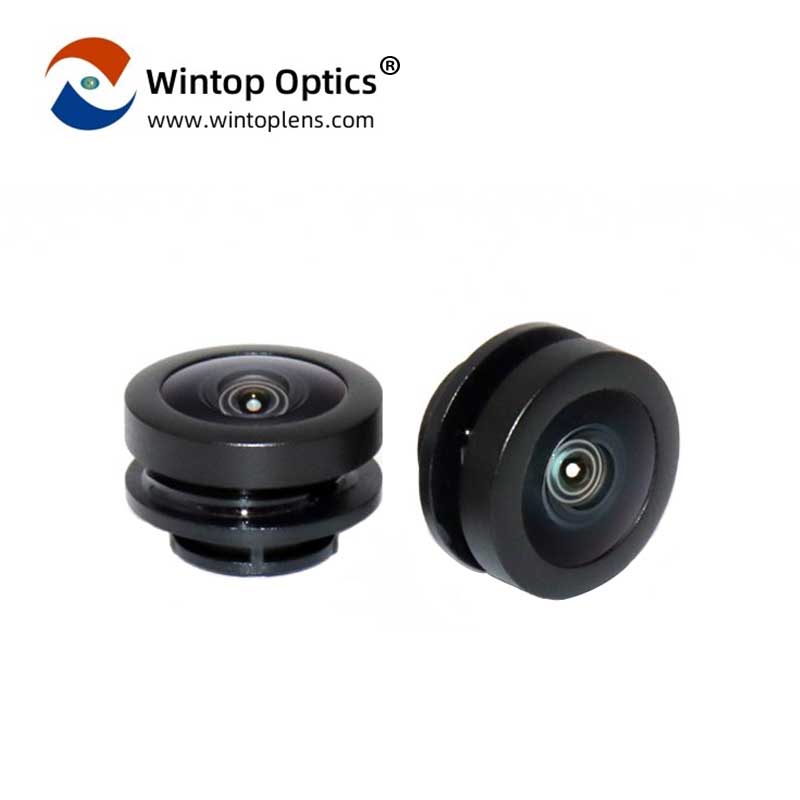

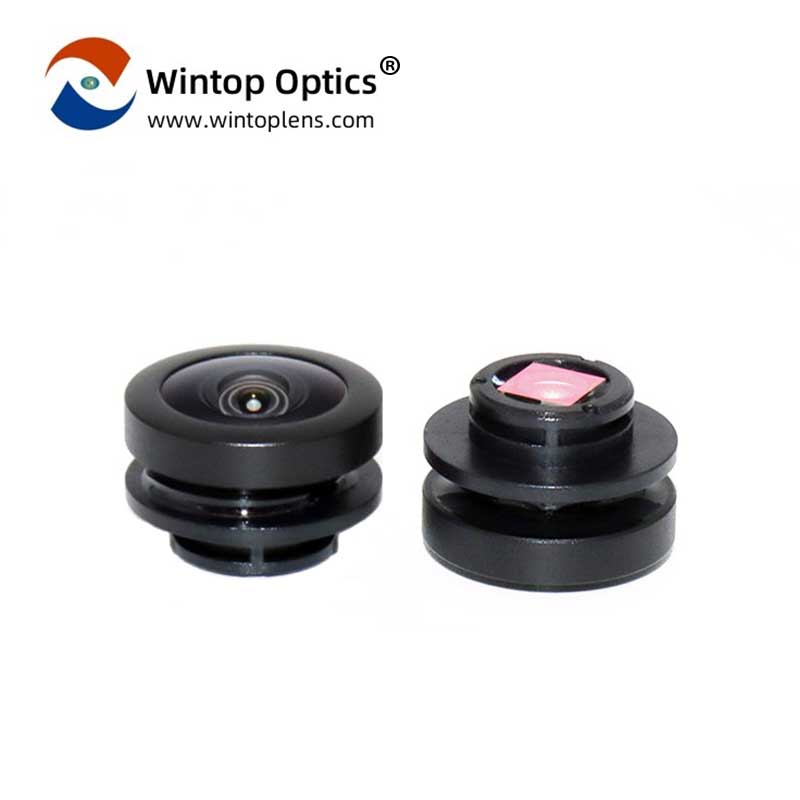

IP69 Night Vision Car Rear View Fish Eye Mirror Camera Lens YT-7045P-D5

  • Lenses Factory Car Camera Lens
  • IP69 Good Night Vision Effect
  • 1/3 Sensor Fish Eye Lens For 360 Surrounding
  • OV6946 Camera Fisheye M12 GC2053
  • Car Rear View Mirror Camera Lens
  • Item No :

    YT-7045P-D5
  • Sensor :

    GC2053
  • F/NO. :

    2.0
  • EFL :

    1.31
  • Optical TTL :

    12.91
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    >200°/125°/>200°
  • Structure :

    2G3P+IR

Revolutionize Your Drive with the YT-7045P-D5-A Rearview Camera Lens

know more about YT-7045P-D5-A Rearview Camera Lens parameters
Img-Circle( mm) ∅4.8
EFL( mm) 1.31
F/NO. 2.0
Optical TTL 12.91
Mechanical TTL 12.91
BACK FOCAL LENGTH 3.44
FLANGE BACK LENGTH 2.69
TV DISTORTION -35%
RELATIVE ILLUMINATION ≥50%
CRA 23.9°
Pixel Size (μm) 2.8um*2.8um
Storage At Temperature -40℃~+85℃
Recent Camera Distance 0.2
Infrared Non-infrared
WAVELENGTH @420~610nm    Tavg≥90%
@650nm?0nm  T=50%
Dust Level IP69
STRUCTURE 2G3P+IR



Night Vision Excellence with F2.0 Aperture


Meet the YT-7045P-D5-A, the rearview camera lens designed for the future of autonomous driving. With an F2.0 aperture, this lens excels in low-light conditions, ensuring that your vehicle's vision is as sharp and clear at night as it is during the day. Experience the peace of mind that comes with superior night vision capabilities.



Precision Engineering for Detailed Clarity


The YT-7045P-D5-A boasts an optical focal length of 1.3mm and an overall length of 12.9mm, engineered to provide detailed and distortion-free clarity. This precision craftsmanship ensures that every pixel is captured with the utmost precision, resulting in a high-resolution image that empowers safe and confident driving.


High-Definition Imaging with GC2053 Sensor


Equipped with the GC2053 sensor, the YT-7045P-D5-A delivers two million clear pixels with a resolution of 1920*1080. This high-definition imaging capability ensures that your vehicle's camera system captures every detail with exceptional clarity, whether you're reversing, parking, or simply monitoring your surroundings.


Ultra-Wide Field of View for Comprehensive Coverage


The YT-7045P-D5-A's ultra-wide field of view, with a diagonal and horizontal angle of 200° and a vertical angle of 125°, ensures that your vehicle's camera system covers every angle. This expansive view significantly reduces blind spots, providing a 360° safety cushion that is perfect for both rearview and surround-view monitoring systems.



Rugged and Reliable with IP69 Rating


As a car-grade lens, the YT-7045P-D5-A is built to withstand the toughest conditions. With an IP69 rating, this lens is waterproof, dustproof, and designed to maintain optimal performance even in the most challenging environments. Trust this lens to deliver reliable service, no matter where your journey takes you.



Innovative Glass-Plastic Hybrid with IR Filter


The YT-7045P-D5-A features an innovative glass-plastic hybrid structure, combined with a 640nm IR filter filter. This design not only enhances light transmission and image clarity but also ensures that the lens is cost-effective without compromising on quality. The result is a lens that offers high performance and value for your vehicle's camera system.



Conclusion: The Pinnacle of Rearview Technology


The YT-7045P-D5-A is not just a rearview camera lens; it's a statement of innovation, quality, and reliability. By choosing this state-of-the-art technology, you're equipping your vehicle with a powerful tool that enhances your driving experience and provides an extra layer of safety. Embrace the future of driving with the YT-7045P-D5-A – your vehicle's new eyes for a safer tomorrow.
