Item No :
YT-5755P-Q1Sensor :
1/2.7" 1/2.8" 1/3"F/NO. :
1.1±10%EFL :
3.30±5%Optical TTL :
22.23±0.3FOV(H/V/D) :

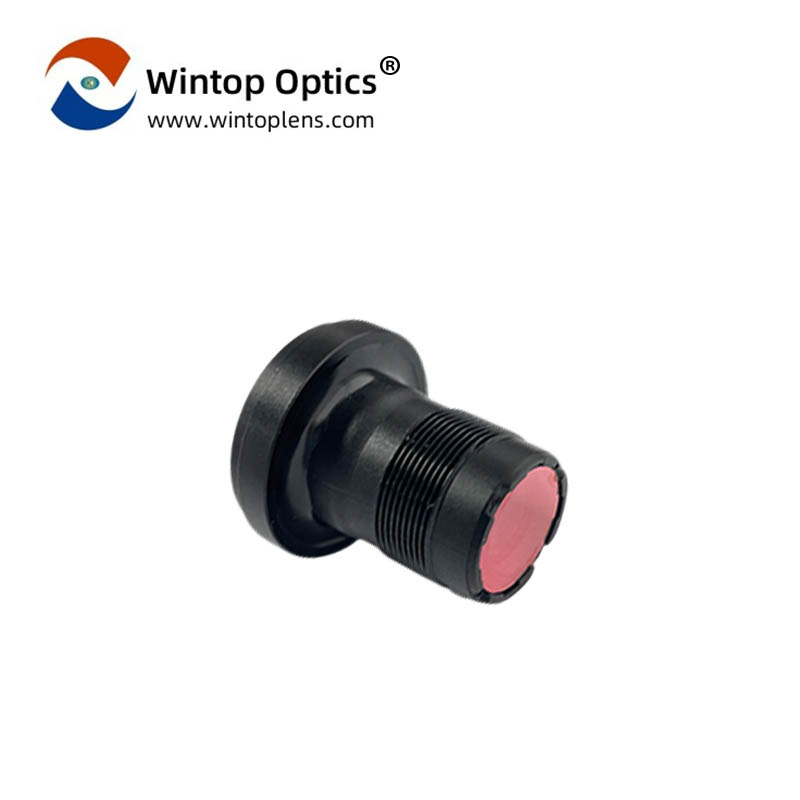

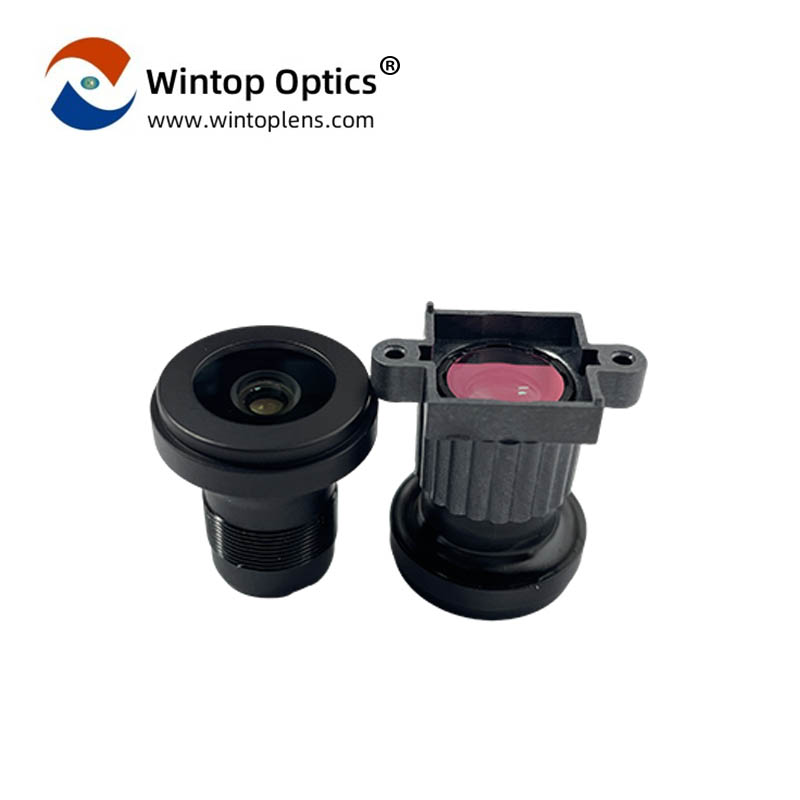

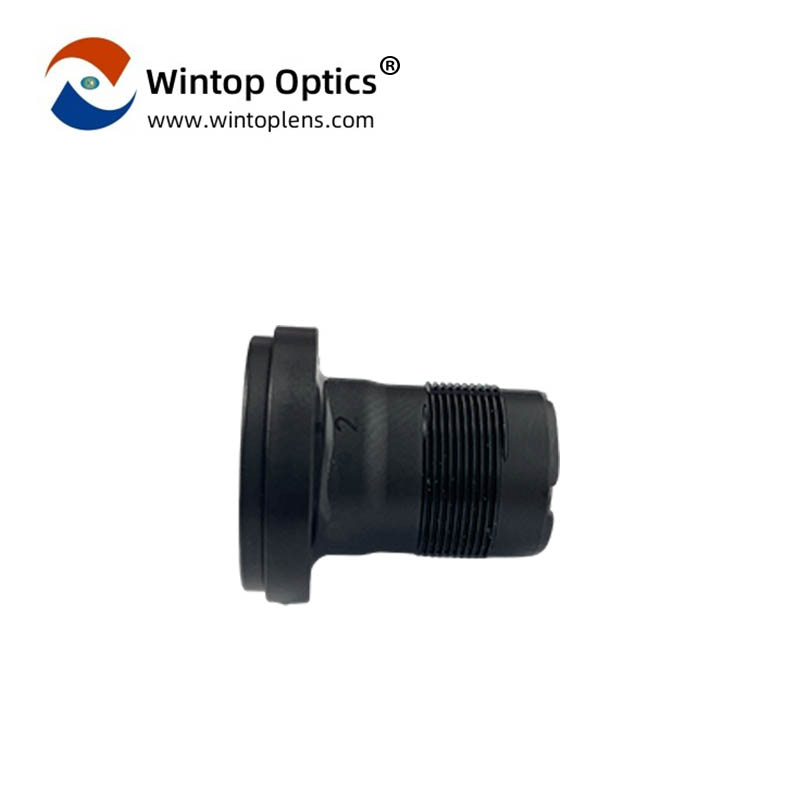

1/2.7"（111°/58°/135°） 1/2.8"（106°/56°/128°） 1/3"（97°/51°/115°）YT-5755P-Q1:F1.1 Large Aperture Automotive Rear View Lens for Backup Camera & Smart Vehicle Vision Systems

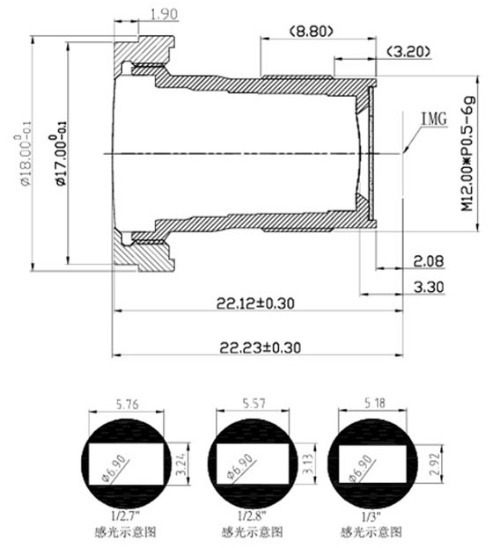

| Know More About YT-5755P-Q1 Automotive Rear View Lens Parameters |
|||||||||
| Max Img-Circle(mm) | ∅6.9 |
||||||||
| EFL(mm) | 3.30±5% |
||||||||
| F/NO. | 1.1±10% |
||||||||
| Optical TTL(mm) | 22.2±0.3 | ||||||||
| Mechanical TTL(mm) | 22.12±0.3 | ||||||||
| Back Focal Length(mm) | 2.08 | ||||||||
| Optical Distortion | 1/2.7" | <-58% | 1/2.8" | <-53% | 1/3" | <-43% | |||
| TV Distortion | 1/2.7" | <-19% | 1/2.8" | <-18% | 1/3" | <-14% | |||
| Relative Illumination | 1/2.7" | 51% | 1/2.8" | 55% | 1/3" | 58% | |||
| CRA | 1/2.7" | 17.1° | 1/2.8" | 16.5° | 1/3" | 15.9° | |||
| FOV(H/V/D) | 1/2.7" | 111°/58°/135° | 1/2.8" | 106°/56°/128° | 1/3" | 97°/51°/115° | |||
| Storage at Temperature | -20℃/+70℃ |
||||||||
| Recent Camera Distance | 0.2M |
||||||||
| Infrared | No |
||||||||
| Wavelength | @430~600nm Tavg≥90% @650nm±10nm T=50% |
||||||||
| Dust Level | IP67 |
||||||||
| Structure | 2G5P+1IR |
||||||||
The YT-5755P-Q1 is a high-performance automotive rear view lens specifically developed for modern vehicle camera systems requiring wider visibility, enhanced low-light performance, and stable imaging quality. Featuring a fast F1.1 large aperture, this car rear view camera lens delivers brighter and clearer images in challenging lighting environments such as underground parking lots, night driving conditions, tunnels, and rainy weather.
Designed with a compact M12 lens structure, the YT-5755P-Q1 is suitable for various intelligent vehicle applications including backup cameras, rear parking assist systems, surround view systems, commercial vehicle monitoring, and AI automotive vision systems. Its optimized optical design supports reliable image capture while improving driving safety and rear-area visibility.
In automotive rear monitoring applications, image clarity under low illumination is critical. The YT-5755P-Q1 adopts an advanced F1.1 large aperture optical design, allowing more light to enter the imaging system and significantly improving night vision performance. Compared with conventional rear view camera optics, this low-light automotive lens provides better brightness, reduced image noise, and clearer object recognition in dim environments.
This makes the lens ideal for:
The high-transmittance optical structure ensures stable imaging quality for both passenger vehicles and commercial transportation applications.
The YT-5755P-Q1 is engineered as a wide angle automotive camera lens with up to 135° diagonal field of view, helping reduce blind spots and improve rear-area awareness. Its carefully optimized low distortion lens design maintains more accurate image geometry, which is especially important for parking guidance systems and intelligent driving assistance platforms.
This wide-angle rear view lens supports:
The combination of wide field coverage and controlled distortion helps improve driver confidence and system reliability.
Automotive camera systems must maintain stable operation under extreme environmental conditions. The YT-5755P-Q1 features an IP67 waterproof and dustproof design, enabling reliable use in outdoor automotive applications exposed to rain, dust, vibration, and temperature changes.
With an operating temperature range from -20°C to +70°C, this automotive-grade optical lens is suitable for long-term vehicle installation and continuous operation. The durable optical and mechanical structure supports stable performance in demanding driving environments including:
To provide greater flexibility for automotive camera integration, the YT-5755P-Q1 supports multiple sensor sizes including 1/2.7", 1/2.8", and 1/3" image sensors. The lens delivers different field-of-view configurations depending on sensor format requirements, making it suitable for a wide range of automotive imaging platforms.
Its compact mechanical design also simplifies integration into modern rear view camera modules and embedded automotive vision systems.
Wintop Optics specializes in the development and manufacturing of high-quality automotive camera lenses, rear view lenses, wide angle M12 lenses, and custom optical solutions for intelligent vehicle applications.
With extensive experience in automotive optics, we provide:
Whether you are developing a rear view camera, parking assist system, or next-generation intelligent driving platform, Wintop Optics can provide reliable optical solutions tailored to your project requirements.
