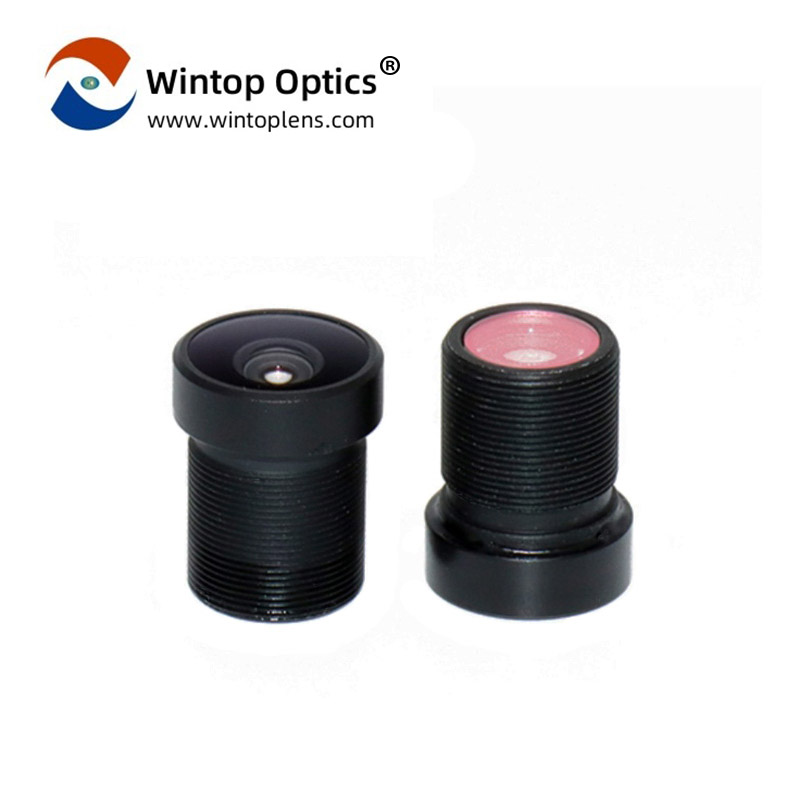

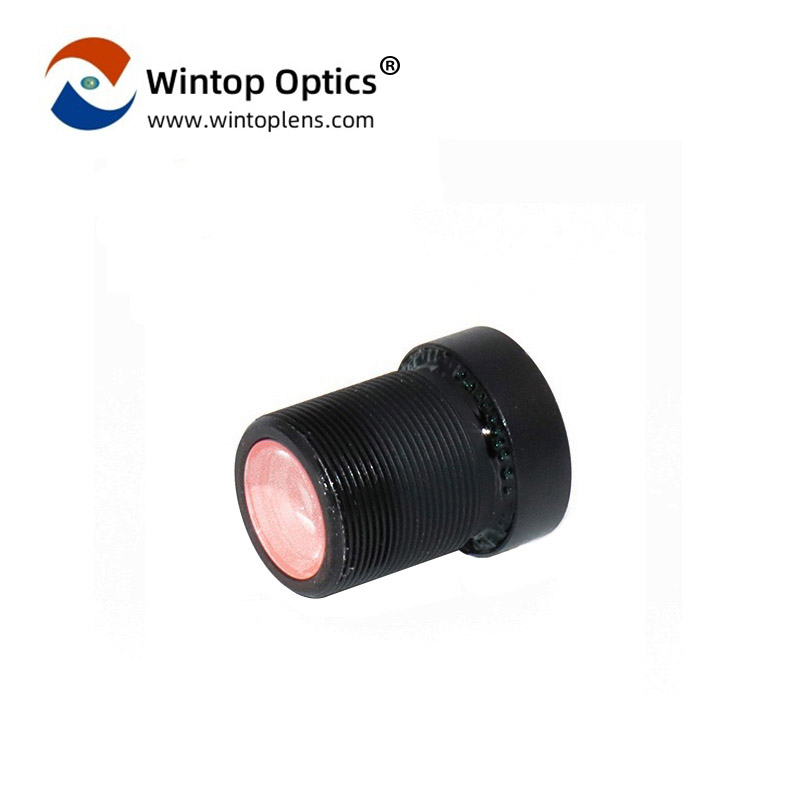

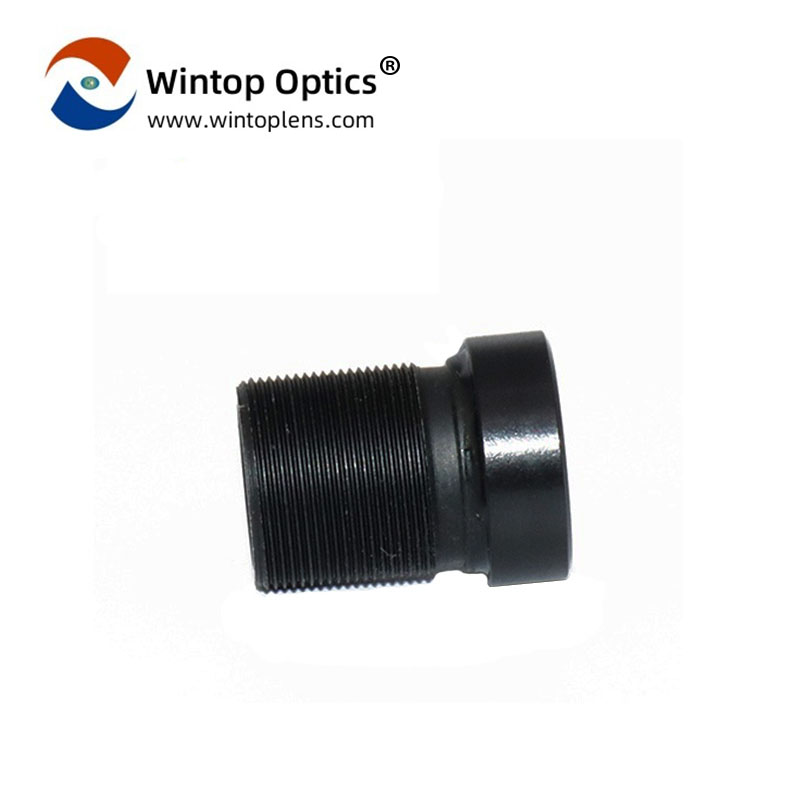

6g 1/2.7 3mm f1.8 Isx031 Sensor driving recorder lens YT-1698-F1

Lenses sample 6g 1/2.7 3mm f1.8 Isx031 Sensor Lens low distortion hd fixed 4M drone camera lens driving recorder lens

  • Item No :

    YT-1698-F1
  • Sensor :

    ISX031
  • F/NO. :

    1.8
  • EFL :

    3.0mm
  • Optical TTL :

    22.11
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    123°/93°/150°
  • Structure :

    6G+1IR



YT-1698-F1: The Multi-Purpose Lens for Aerial Excellence



know more about YT-1698-F1 driving recorder lens parameters
Sensor Circle(mm) 1/2.7''
Focal Length(EFL) 3.0mm
F/NO.(Infinite) 1.8
Optical TTL 22.11
Mechanical TTL 22.11
Back Focal Length 5.60
Flange Back Length 4.44
TV Distortion -12.5%
Relative Illumination >85%
CRA 12°
Wave Length

420~600nm  T≥90%

650±10nm    T=50%

700~1100nm T≤3%

1050nm        T<5%



Embrace the versatility of the YT-1698-F1, a high-performance lens designed for aerial drone photography, mapping, and action camera adventures. With its F1.8 large aperture, this lens excels in low-light conditions, ensuring that your aerial captures are illuminated with remarkable clarity and detail.


Optimized for ISX031 Sensor with Four Million High-Definition Pixels


Crafted to match the ISX031 sensor, the YT-1698-F1 delivers 1937*1553 four-million pixels of high-definition imaging. This exceptional resolution captures the fine details of the terrain below, whether you're mapping vast landscapes or capturing the thrill of high-speed action.

Ultra-Wide Angle for a Panoramic Perspective


The lens's 150° diagonal and 123° horizontal field of view offers an expansive view that captures the full scope of your surroundings. Perfect for panoramic aerial shots, this ultra-wide angle ensures that every detail is captured, from the vastness of the sky to the intricacies of the earth below.


Durable Metal and Glass Construction with IR Filter


The YT-1698-F1 features a robust construction that combines metal housing with an all-glass lens array. This sturdy design is built to withstand the challenges of outdoor use, and the inclusion of a 650nm IR filter enhances image quality by reducing infrared interference, ensuring that your photos and videos are crisp and vibrant.


Standard M12*P0.5 Mount for Universal Compatibility


Equipped with a standard M12*P0.5 mount, the YT-1698-F1 offers seamless integration with a wide range of drones and action cameras. This universal thread ensures a secure and stable connection, providing the flexibility to attach your lens to various platforms with ease.

High Relative Illumination for Consistent Performance


With a relative illumination of over 85%, the YT-1698-F1 maintains consistent brightness across the frame, resulting in evenly lit images that are free from dark corners or uneven exposure. This feature is crucial for capturing high-quality aerial footage that is ready for professional use.

Rigorous Quality Control for Enhanced Reliability


The YT-1698-F1 undergoes multiple quality control checks during its production process, ensuring that each lens meets the highest standards of reliability and performance. This meticulous attention to detail guarantees that you can trust the YT-1698-F1 to deliver exceptional results, time and time again.


In conclusion, the YT-1698-F1 is the ultimate multi-purpose lens for those who demand versatility and excellence in their aerial photography. Its combination of a large aperture, ultra-wide angle, durable construction, and high-quality imaging makes it the perfect choice for professionals and enthusiasts alike. Whether you're soaring above the clouds or racing through the streets, the YT-1698-F1 is your reliable partner in capturing the world from new heights.
