Lens application case 10--Haima

May 30, 2025

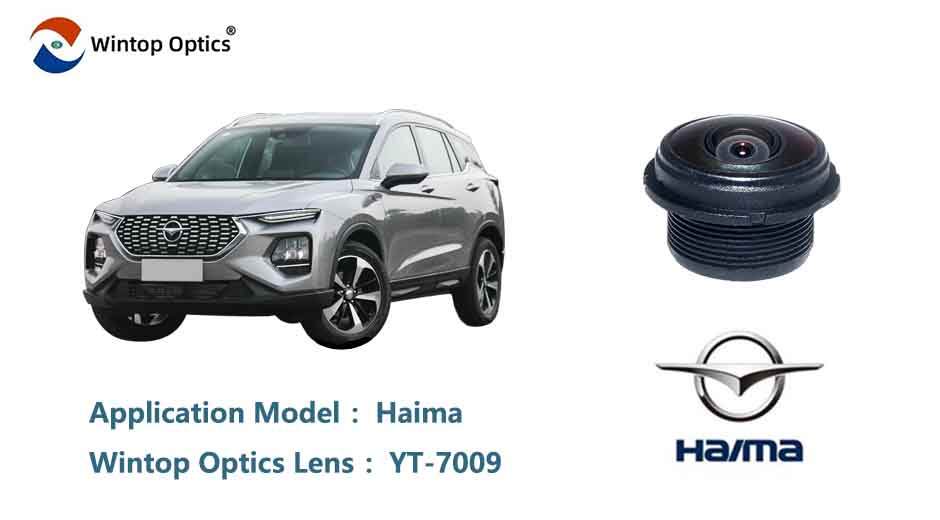

Wintop Optics, a leading domestic automotive optical solutions provider, leveraged its expertise in optical design and precision manufacturing to develop the YT-7009 ultra-wide-angle lens—optimized for next-gen AVM systems. Haima Auto, a user-experience-focused Chinese automaker, selected the YT-7009 as the "eyes" for its new flagship models’ surround-view systems.

Wintop YT-7009 Lens: Technological Highlights & Innovations

The YT-7009 delivers systemic innovations addressing core AVM pain points:

Exceptional Low-Light Performance:
Utilizes high-transmittance nano-coating (>95% light transmission) to suppress stray light. Compatible with large-format, high-sensitivity sensors, delivering clear, low-noise images even at moonlight illumination (<0.1 Lux).
Automotive-Grade Robustness:
- All-Metal Inner Barrel: Enhances mechanical/thermal stability, preventing defocus across -40°C to +85°C.
- IP69K Protection: Withstands high-pressure car washes and harsh weather.
- Vibration Resistance: Passes rigorous mechanical shock/vibration tests for long-term reliability.
Compact & Integration-Friendly:
Space-optimized design facilitates seamless embedding in mirrors, grilles, or tailgates.

*Table: Key Specifications & Advantages of Wintop YT-7009*

Feature	YT-7009 Performance	Pain Point Solved / Value Delivered
FOV	≥200° (Horizontal)	Full coverage around vehicle, eliminating blind zones
Low-Light Capability	>95% transmittance, <0.1 Lux imaging	Clear night/garage visibility; 24/7 safety
Environmental Durability	-40°C~+85°C, IP69K, vibration-resistant	Reliable performance in all climates/terrains
Structure	Compact all-metal inner barrel	Easy integration, space-saving, stable

Results: Enhanced Safety & Brand Value

Haima’s AVM system with YT-7009 lenses has launched successfully, earning positive feedback:

Superior User Experience: Users report "natural stitching with minimal edge distortion" and "clear night mode," boosting confidence in low-light parking and reducing collision risks.
Competitive Edge for Haima: The high-performance hardware-software integration makes Haima’s AVM a standout feature in its price segment, reinforcing its "tech-savvy & safe" brand image.
Domestic Supply Chain Synergy: This project exemplifies successful China-China automotive-tech collaboration. Wintop delivered not just lenses but also co-development agility, supply chain resilience, and cost efficiency.

Future Outlook: Continuous Leadership in Automotive Optics

The successful deployment of Wintop YT-7009 in Haima vehicles marks a breakthrough in performance and reliability for Chinese high-end automotive optics, reducing dependence on international suppliers.

Wintop’s future R&D focus:

Integrated Perception: Higher-resolution, wider-dynamic-range (WDR) lenses for shared ADAS/AVM sensors.
Optical Innovation: Exploring non-axial imaging for L3+ autonomous driving.
Material/Process Upgrades: Lighter, smaller, more robust, and cost-effective solutions.

Wintop Optics is committed to advancing intelligent automotive vision globally. Together with partners like Haima, we enable safer, smarter mobility through optical excellence.
