YT-7603-F1 ：1.34mm F2.0 200° Ultra-Wide Angle M12 Fisheye Lens for Robot Vision and Navigation

YT-7603-F1 Ultra-Wide Fisheye Lens for Robot Vision

The Wintop Optics YT-7603-F1 Ultra-Wide Fisheye Lens is designed for embedded robot vision systems that require extensive scene coverage and reduced visual blind spots. Featuring a 1.34mm focal length, F2.0 large aperture, and a field of view exceeding 200° in both horizontal and diagonal directions, this M12 fisheye lens provides a broad perspective for mobile robots and autonomous vision platforms.

With its M12 × P0.5 threaded mount and 2G4P hybrid optical construction, the YT-7603-F1 is suitable for integration into compact robotic cameras and embedded vision systems. The F2.0 aperture supports image capture in indoor and relatively low-light environments, while its 2MP imaging configuration supports 1920 × 1080 Full HD image acquisition for robotic environmental perception and navigation applications.

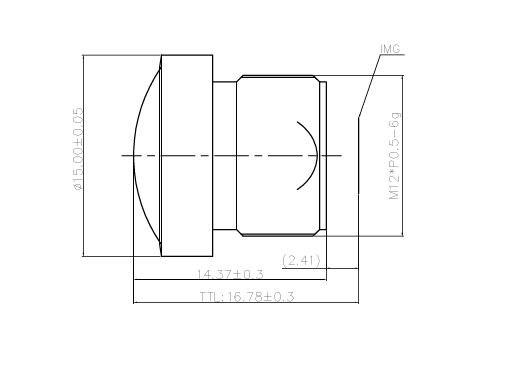

Featuring a compact 16.78mm optical total length, this fisheye lens is a potential solution for robotic camera systems with limited installation space. It supports a 1/2.7-inch image format and a 3μm pixel size. With a specified TV distortion of -48%, the YT-7603-F1 is designed for ultra-wide-angle scene capture rather than applications requiring inherently low geometric distortion.

Key Applications

This robotic vision lens is designed for applications requiring wide-angle environmental perception and compact camera integration.

• AMR & AGV Navigation: Provides wide-area visual coverage for autonomous mobile robots operating in warehouses, factories, and logistics facilities.

• Robot Obstacle Detection: Supplies wide-angle image input for obstacle recognition and collision-avoidance systems.

• Humanoid Robot Perception: Supports environmental observation and movement-related vision tasks.

• Service & Delivery Robots: Enables surrounding-scene monitoring in offices, commercial buildings, and indoor delivery environments.

• Panoramic Robotic Vision: Captures extensive visual information for computer vision and environmental perception algorithms.

• Mobile Robot R&D: Supports embedded camera prototypes and selected autonomous navigation research projects.

• Robotic Lawn Mowers: Can be evaluated for outdoor scene observation, boundary recognition, and obstacle detection, subject to environmental protection and system integration requirements.

  ---

A Compact M12 Fisheye Lens for Embedded Robotic Vision

The YT-7603-F1 combines an ultra-short focal length, ultra-wide field of view, and compact M12 mounting interface in one optical solution. It is well suited for evaluating in robotic vision systems where broad scene coverage and space-efficient integration are important.

For optimal performance, customers should verify lens compatibility with the image sensor, required field of view, working distance, mechanical dimensions, and image-processing algorithms.

Contact Wintop Optics

Looking for a reliable ultra-wide fisheye lens for your robot vision project? Contact Wintop Optics to discuss lens specifications, sensor compatibility, customization options, and bulk orders.

• WhatsApp / WeChat: +86 153 0268 9906

• Email: yorty@yuntal.com

Our team is ready to help you find the right optical solution for your robotic vision application. Contact us today to discuss your project requirements!

FAQs

1. What sensor size does the YT-7603-F1 fisheye lens support?

YT-7603-F1 matches 1/2.7” image sensors, supporting 2MP 1920×1080 resolution with 3μm pixels. Confirm compatibility with your sensor and camera design before use.

2. What is the field of view of the YT-7603-F1?

It features ＞200° horizontal, 127° vertical and ＞200° diagonal FOV. Actual coverage is affected by your sensor selection and optical assembly.

3. Is the F2.0 aperture suitable for low-light robot vision?

The F2.0 large aperture brings higher light intake for stable imaging in low-light indoor environments. Image quality also depends on sensor performance and lighting conditions.

4. Can the YT-7603-F1 be used for visual SLAM and autonomous navigation?

It is available for fisheye-based visual SLAM and robot navigation. Camera calibration and distortion algorithm tuning are required for your perception system.

5.Can Wintop Optics customize robot vision lenses?

Wintop Optics offers custom optical lens development & mass production. Share your sensor, FOV and mechanical requirements, and we will provide customized optical solutions.
