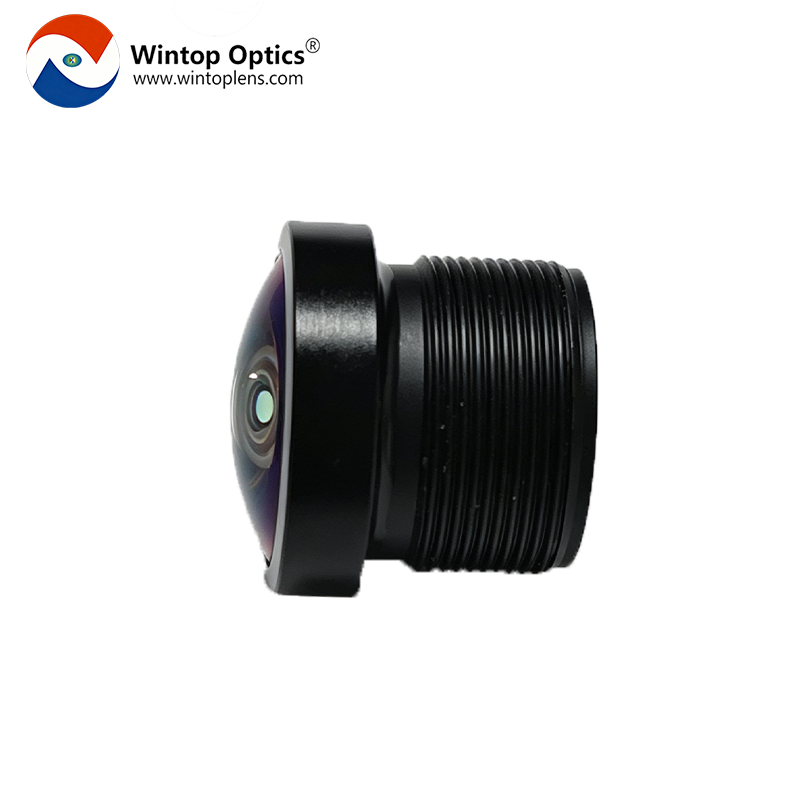

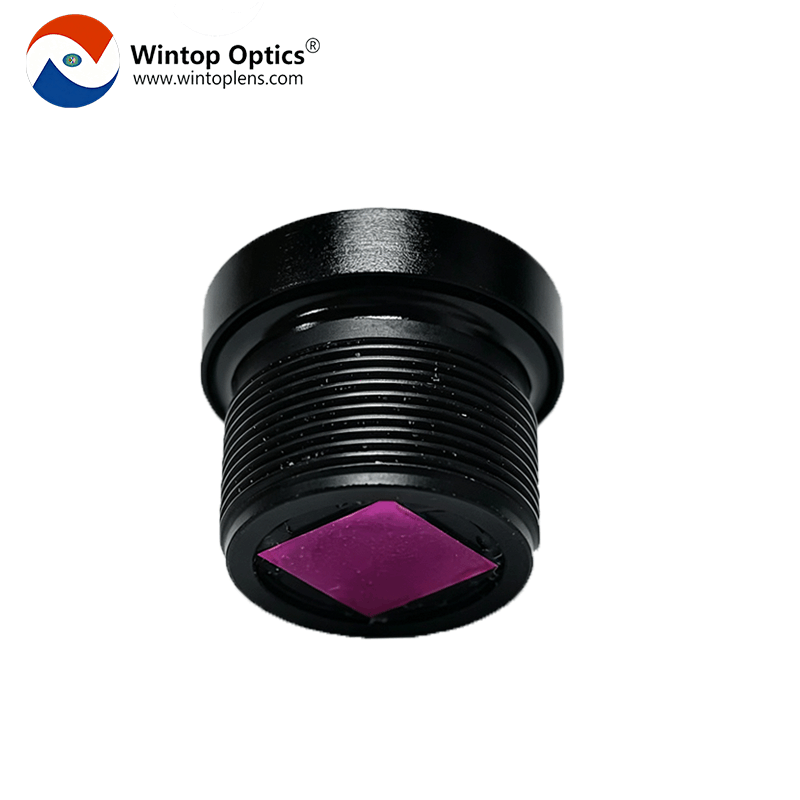

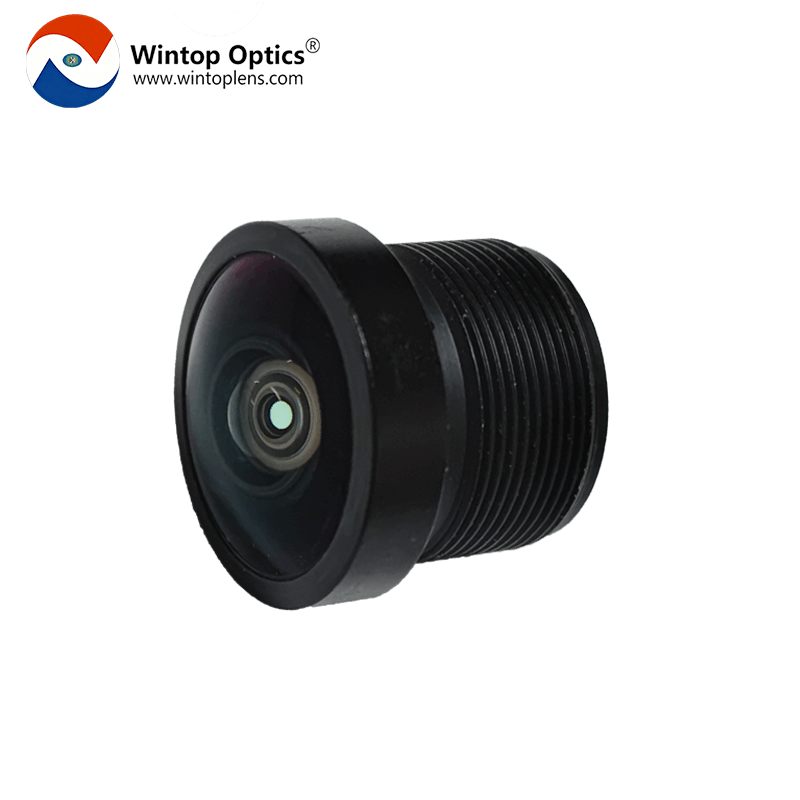

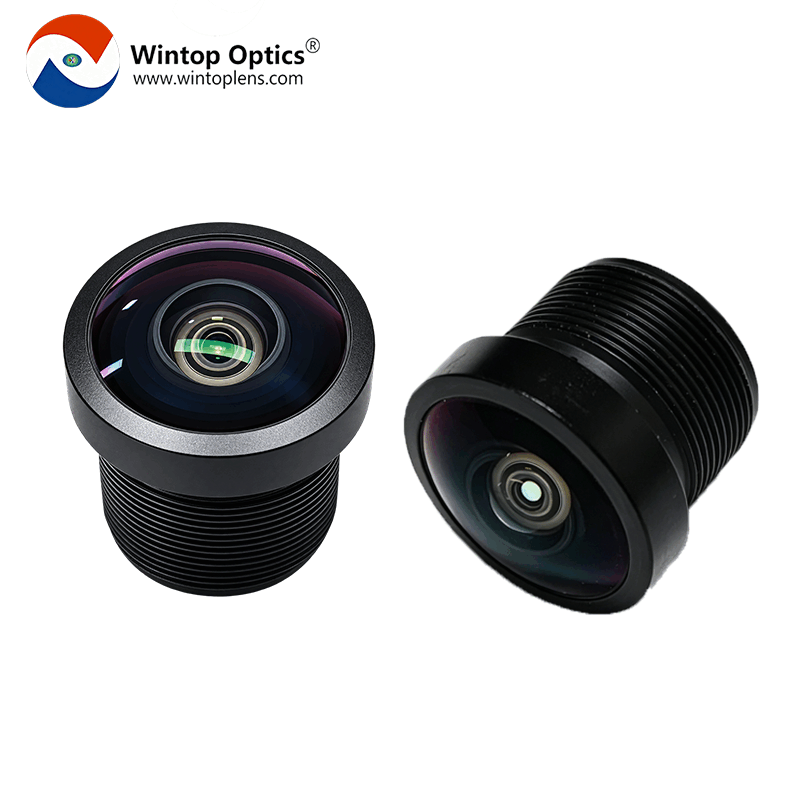

YT-7761-C8：1.85mm 189° FOV M12 Ultra-Wide Fisheye Lens for Collaborative Robot & AGV End-of-Arm Data Acquisition Vision

High-Performance Robotic Vision Lens for Collaborative Robot & AGV Perception

The YT-7761-C8 is a high-performance industrial fisheye lens specially developed for robotic end-of-arm vision systems that demand ultra-wide coverage, excellent low-light performance, and consistent imaging quality. Featuring a fast F2.0 large aperture, this lens delivers brighter and sharper images in tough factory environments such as dim workshops, low-light assembly stations and confined robotic working spaces.

Designed with a compact M12 lens structure, the YT-7761-C8 fits multiple automation applications including robot gripper inspection, collaborative robotic arm visual capture, AGV close-range obstacle avoidance, workpiece recognition and industrial AI perception systems. Its optimized optical design achieves dependable image acquisition to boost automation efficiency and eliminate nearby perception blind zones.

Large Aperture Lens for Stable Low-Light Factory Imaging

In robotic visual inspection tasks, image definition under insufficient lighting is essential. The YT-7761-C8 adopts advanced F2.0 large aperture optical design, increasing light intake for the imaging system and greatly lifting low-light imaging capability. Compared with ordinary industrial M12 lenses, this lens offers higher brightness, lower image noise and clearer target identification in dim manufacturing environments.

This makes the lens ideal for: Robot gripper visual inspection Collaborative robot end effector imaging AGV chassis obstacle detection Workpiece presence & position recognition Industrial robot on-board perception systems.

The high light transmittance optical assembly guarantees steady imaging performance for fixed and moving robotic automation equipment.

Ultra-Wide Fisheye Lens with 189° Diagonal Field of View

The YT-7761-C8 is engineered as an ultra-wide industrial fisheye lens with up to 189° diagonal field of view, effectively removing short-range perception blind spots for robotic equipment. Its large image circle design fully covers the target sensor, enabling one single lens to capture a huge surrounding scene for robot environment scanning.

This ultra-wide fisheye lens supports: Full-scene close-range perception Workpiece capture within a large area Obstacle detection for robotic movement Material & component visual counting End-of-arm environmental awareness.

The combination of ultra-wide field coverage and compact size improves robot perception reliability and algorithm performance.

Rugged Industrial Lens for Harsh Workshop Environments

Industrial robotic vision systems need to sustain stable operation under rigorous working conditions. The YT-7761-C8 features IP69 waterproof and dustproof construction, supporting reliable operation in factory settings with oil mist, dust, high-pressure washing and continuous mechanical vibration.

With a wide operating temperature range, this industrial lens is built for long-term installation and non-stop automated operation. The robust optical and mechanical structure maintains consistent performance in demanding production environments including: Collaborative robots Mobile AGV / AMR platforms Fixed automation inspection stations End-of-arm tool vision modules Intelligent manufacturing perception systems.

Large Image Circle, Optimized for 1/2.6" Image Sensor

To deliver flexible integration for robotic camera modules, the YT-7761-C8 comes with a 14.4mm max image circle, perfectly matching 1/2.6" 1920×1200 3μm high-definition image sensors. The lens provides complete image coverage for this sensor format to meet robotic visual algorithm requirements.

Its miniature mechanical profile simplifies embedding into tight spaces inside robot wrists, grippers and compact onboard camera assemblies.

Wintop Optics – Your Trusted Industrial Lens Manufacturer

Wintop Optics specializes in the development and manufacturing of premium industrial camera lenses, fisheye lenses, wide-angle M12 lenses, and custom optical solutions for robotic & automation vision applications.

With rich experience in industrial optical design, we provide: OEM & ODM customization services Professional optical design support Fast project response and sampling Stable production quality control Custom optical solutions for robot perception systems.

Whether you are developing robot gripper vision, AGV obstacle sensing or next-generation collaborative robot perception platforms, Wintop Optics can provide reliable optical solutions tailored to your project requirements.

FAQs

1. What image sensor is compatible with the YT-7761-C8?
The YT-7761-C8 is designed for 1/2.6" image sensors, including 1920×1200 sensors with 3μm pixels. Compatibility should be confirmed based on the camera module.

2. What are the focal length and aperture of this robot vision lens?
The lens features a 1.85mm EFL and F2.0 aperture, providing an ultra-wide field of view and bright imaging in low-light environments.

3. What is the field of view of the YT-7761-C8?
It provides a 165° horizontal, 108° vertical, and 189° diagonal FOV for broad robotic perception and data acquisition.

4. Can it be used for robot end-of-arm vision?

Yes. Its compact M12 design and 189° ultra-wide FOV suit robot grippers, end-of-arm tools, robotic wrists, and other compact vision applications.

5. Is the YT-7761-C8 suitable for harsh industrial environments?
Yes. With IP69 protection, the lens is designed for demanding environments involving dust, water, oil mist, vibration, and regular cleaning.
