200° Fisheye Robot Vision Lens F2.0 1.67mm for Autonomous Robots YT-7018-E8-A

YT-7018-E8-A : 1.67mm F2.0 200° Ultra-Wide Fisheye Lens for Robot Vision Systems

200° Fisheye Lens for Robotic Vision

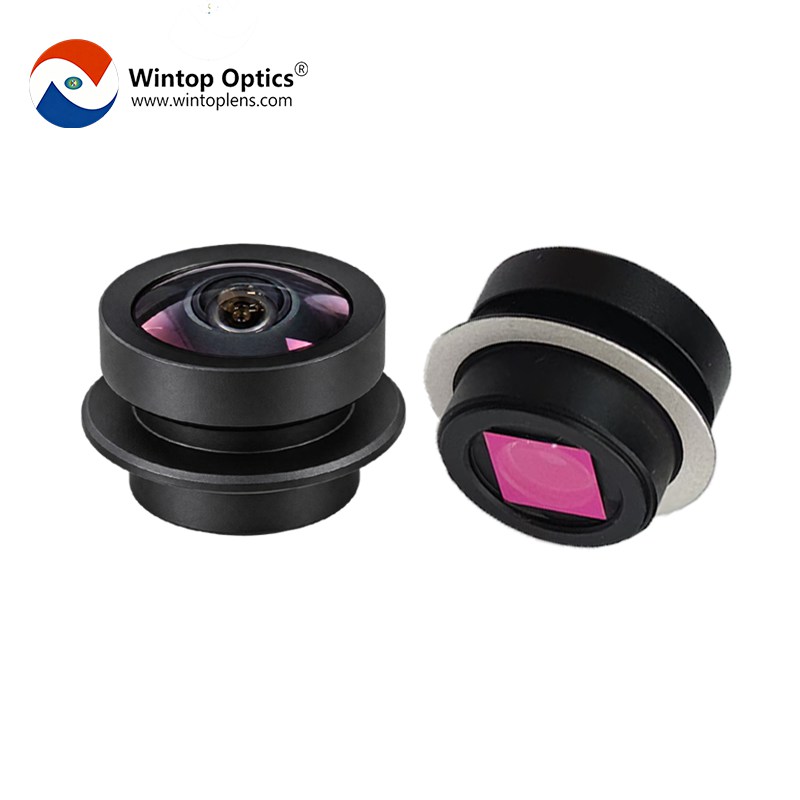

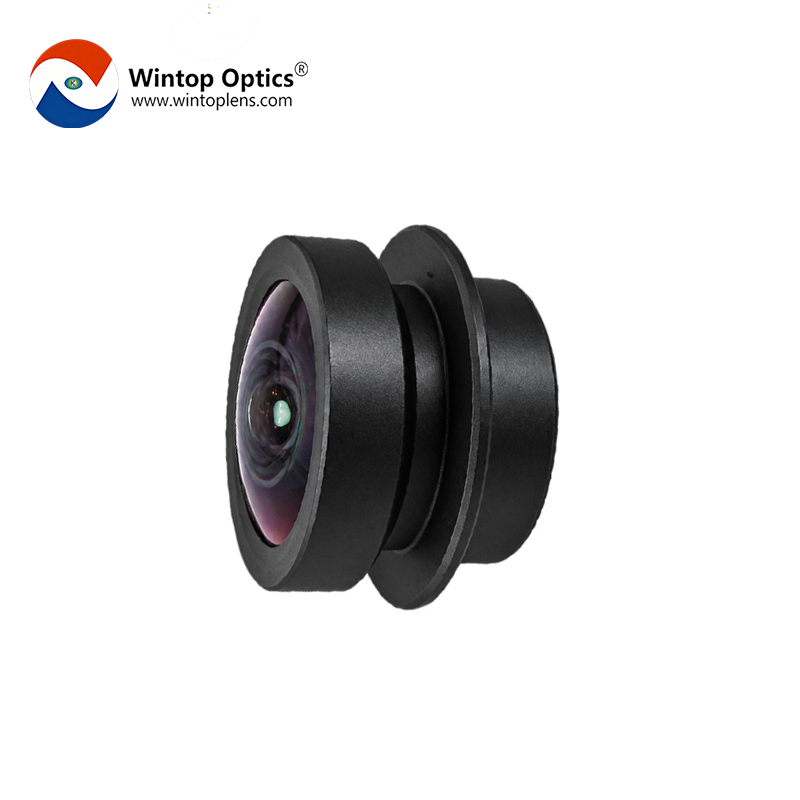

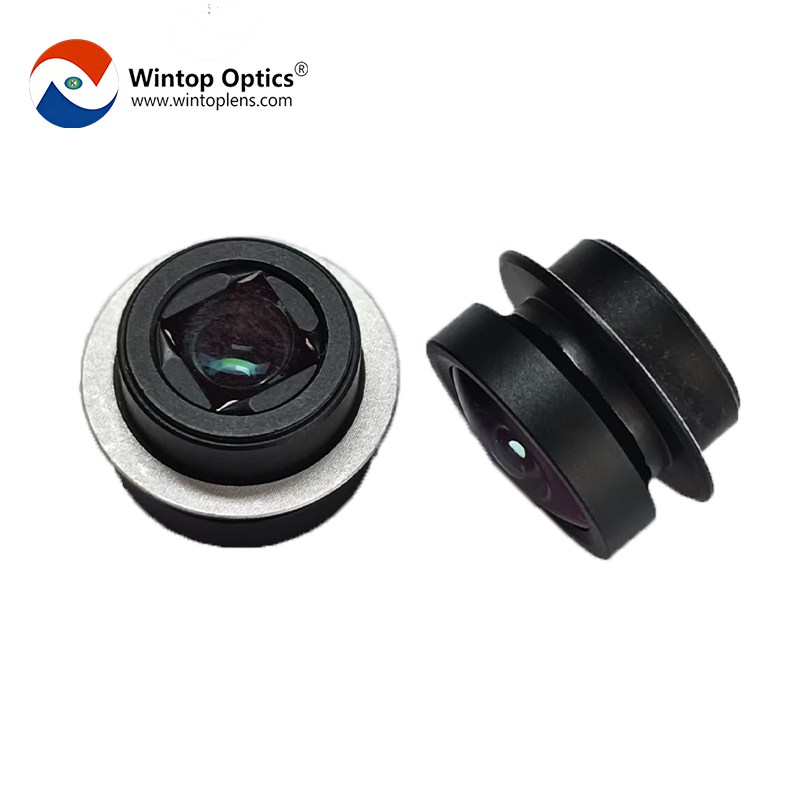

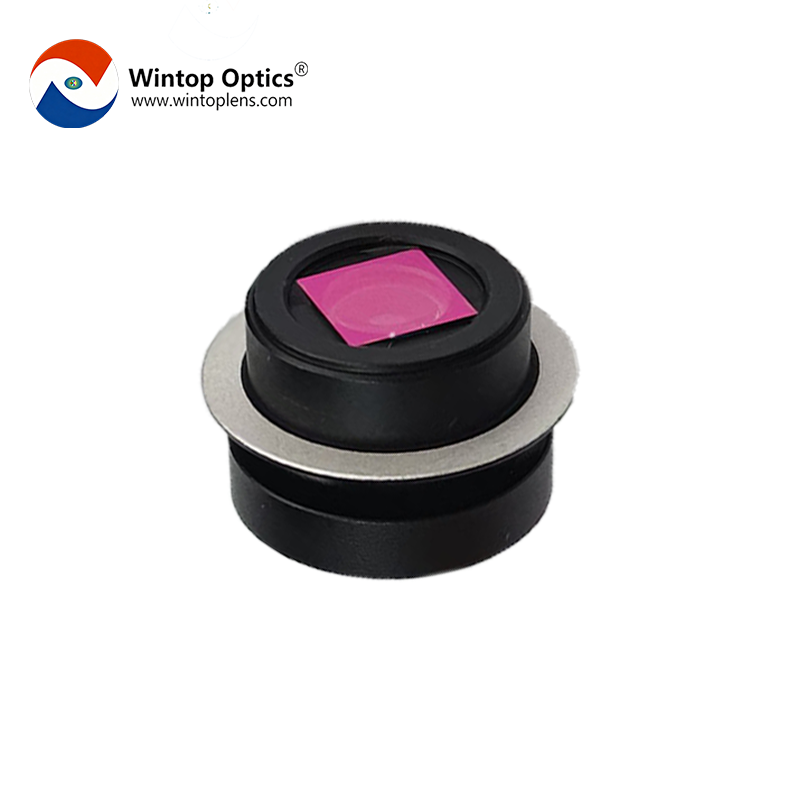

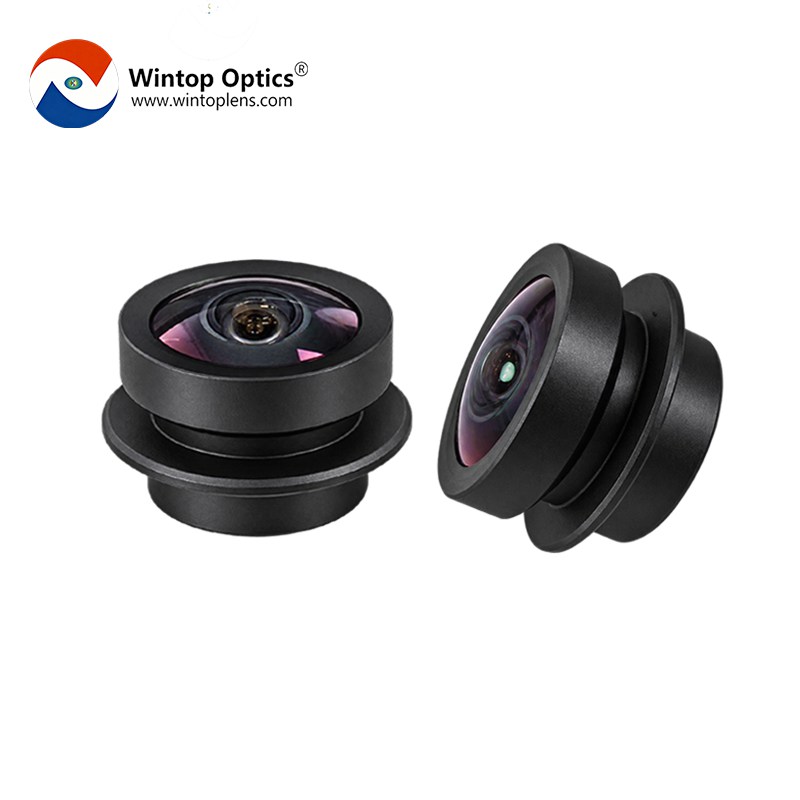

Designed for advanced robotic vision applications, the Wintop Optics YT-7018-E8-A is an ultra-wide-angle fisheye lens that helps robotic systems capture a broader view of their surroundings. With a 1.67mm focal length and a 200° diagonal field of view, it is suitable for applications where wide-area visual coverage is essential for navigation, obstacle detection, and environmental perception.

Ultra-Wide Imaging for Better Environmental Awareness

The 200° diagonal field of view enables the lens to capture an extensive surrounding scene, making it suitable for autonomous mobile robots (AMRs), automated guided vehicles (AGVs), and other robotic platforms that rely on wide-angle visual input. Its fisheye optical design provides broad scene coverage in a compact form factor.

F2.0 Aperture for Low-Light Performance

Featuring an F2.0 aperture, the YT-7018-E8-A allows more light to reach the image sensor, supporting image capture in dimly lit indoor spaces, warehouses, and other challenging lighting environments. This helps provide useful visual information for robotic perception under varying illumination.

IP69 Protection for Demanding Applications

With an IP69-rated design, this robot vision lens is intended for applications requiring a high level of protection against environmental exposure. It is a potential solution for cleaning robots, industrial inspection robots, and other equipment operating in demanding environments. Actual protection performance depends on the complete camera assembly and system integration.

Compact Design for Flexible Integration

The lens features a 1.67mm focal length and a 13mm total track length (TTL), supporting integration into compact robotic camera systems. Designed for use with the SC533HGS image sensor, it supports a sensor resolution of 2592 × 1944 pixels with a 2.2μm pixel size. The CRA is 18°, providing an additional optical parameter for sensor and lens compatibility evaluation.

Applications

The YT-7018-E8-A fisheye lens can be considered for a range of robotic vision applications, including:

• Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs)

• Robot Navigation and Obstacle Detection

• Industrial Inspection and Mobile Inspection Robots

• Autonomous Cleaning Robots

• Service Robots and Smart Robotic Platforms

• Wide-Area Environmental Perception Systems

  ---

A Wide-Angle Optical Solution for Robotics

For robotic camera manufacturers and system integrators, selecting the right robotic vision lens is essential to achieving the required field of view, light-gathering capability, and system integration. The Wintop Optics YT-7018-E8-A combines a 200° diagonal field of view, F2.0 aperture, IP69-rated protection, and a compact optical design to support demanding robotic vision projects.

Contact Wintop Optics to discuss sensor compatibility, optical specifications, and customized lens solutions for your robotic vision applications.

FAQs

1. What is the field of view of the YT-7018-E8-A fisheye lens?

The YT-7018-E8-A features a 200° diagonal field of view (DFOV), with a 192° horizontal field of view (HFOV) and a 143° vertical field of view (VFOV). Its ultra-wide fisheye design helps robotic vision systems capture a broad surrounding scene for environmental perception and obstacle detection.

2. Is the YT-7018-E8-A suitable for low-light robotic vision applications?

Yes. The F2.0 aperture allows more light to reach the image sensor, supporting image capture in indoor and low-light environments. Actual low-light performance also depends on sensor sensitivity, exposure settings, and system configuration.

3. What does the IP69 rating mean for this robot vision lens?

The IP69 rating indicates a high level of protection against dust and high-pressure, high-temperature water jets under specified test conditions. It is suitable for consideration in demanding robotic applications, but the protection level of the complete camera system depends on the assembled housing, seals, and installation.

4. Which image sensor is the YT-7018-E8-A designed for?

The YT-7018-E8-A is designed for use with the SC533HGS image sensor, which has a resolution of 2592 × 1944 pixels and a 2.2μm pixel size. Customers should confirm the sensor format, image circle, mounting interface, and optical compatibility before integration.

5. What robotic applications can use the YT-7018-E8-A lens?

This 200° fisheye robot vision lens can be considered for autonomous mobile robots (AMRs), automated guided vehicles (AGVs), cleaning robots, service robots, and industrial inspection robots. Its ultra-wide field of view supports applications requiring broad environmental coverage, navigation, and obstacle detection.
