Item No :
YT-6072-H1F/NO. :
1.6EFL :
1.36Optical TTL :
13.92Thread Size :
M12*P0.5FOV(H/V/D) :
>200°/130°/>200°Structure :
3G3P+IRThe Pinnacle of Wide-Angle Imaging for Unmatched Surveillance and Panoramic Clarity
| know more about YT-6072-H1 Wide-Angle Lens parameters |
|
| EFL (mm) | 1.36 |
| F/NO. | 1.6 |
| Optical TTL | 13.92 |
| Mechanical TTL | 13.92 |
| BACK FOCAL LENGTH | 2.42 |
| FLANGE BACK LENGTH | 1.42 |
| OPTICAL DISTORTION | -43% |
| Relative lllumination |
≥65% |
| CRA | 10° |
| Pixel Size(μm) |
3.0*3.0 |
| Storage At Temperature |
-20℃～ +70℃ |
| Recent Camera Distance |
0.2M |
| Infrared |
No |
| WAVELENGTH |
@410~610±10nm Tavg≥90% T=50% @650±10nm |
| Water Level |
IP67 |
| STRUCTURE |
3G3P+IR |
Exceptional Low-Light Performance
The YT-6072-H1 features an ultra-wide-angle lens with a stellar F1.6 large aperture, designed to excel in low-light environments. This "starlight" lens ensures that imaging quality remains outstanding even when darkness falls, making it the perfect solution for surveillance and monitoring in conditions where light is limited.
Optimal Optical Configuration
With an optical focal length of 1.36mm and an optical total length of 13.9mm, the YT-6072-H1 is engineered for precision and clarity. This configuration allows for a compact design while delivering a panoramic view that captures every detail with remarkable accuracy.
High-Definition Resolution
The YT-6072-H1 is paired with a 1/2.7-inch (1920*1080) chip, boasting two million clear pixels for high-definition imaging. The lens height of 4.6mm ensures that every pixel is accounted for, providing detailed and lifelike visuals that are perfect for surveillance and recording applications.
Ultra-Wide Field of View
Embrace the expansiveness of the YT-6072-H1's wide-angle lens, which offers a diagonal angle and horizontal angle exceeding 200 degrees, and a vertical angle of 130 degrees. This unparalleled field of view ensures that every corner is covered, leaving no room for blind spots in your surveillance or recording needs.
Robust Operating Range
The YT-6072-H1 is built to endure, with a storage temperature range of -20℃ to +70℃, and a CRA angle of 10 degrees. This durability ensures that the lens maintains its performance in a variety of conditions, from the coldest climates to the hottest environments.
Industry-Standard Design and Construction

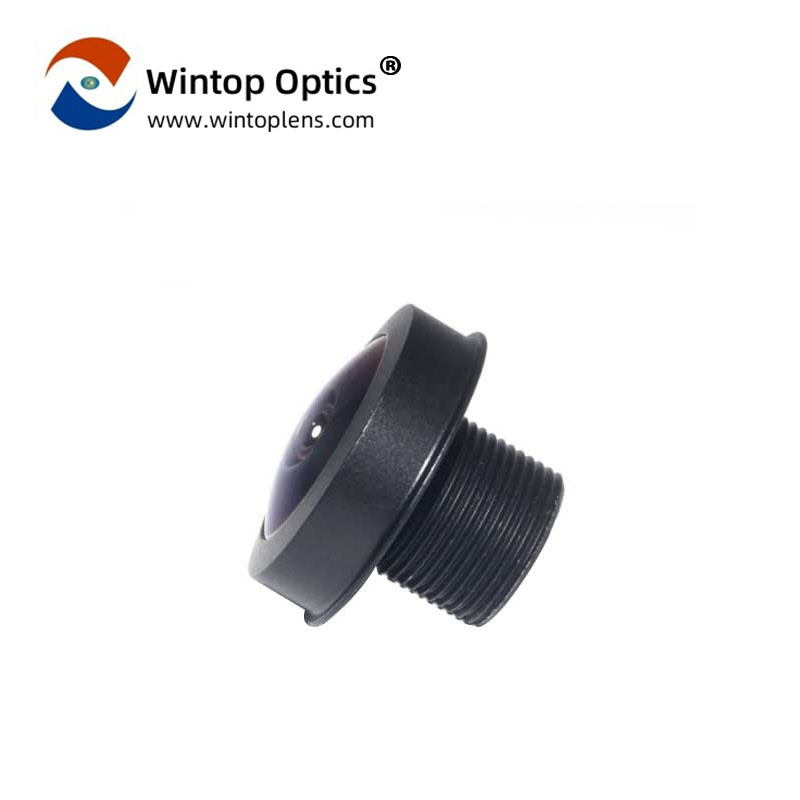

Equipped with a standard M12*P0.5 thread, the YT-6072-H1 is designed for easy integration into existing systems. Its IP67 rating guarantees waterproof and dustproof capabilities, making it suitable for outdoor and industrial applications. The hybrid glass-plastic lens structure offers the best of both worlds, combining the clarity of glass with the durability of plastic for long-lasting performance.
The YT-6072-H1 is not just a wide-angle lens; it's a testament to technological advancement and reliability. Whether you're looking to enhance security, capture breathtaking landscapes, or monitor large areas, the YT-6072-H1 is the clear choice for those who demand the best in imaging technology. Experience the panoramic clarity and robust performance that sets the YT-6072-H1 apart from the rest.
FAQ
Q1: Is this lens suitable for night surveillance?
Yes. The F1.6 large aperture is designed to provide higher light intake than smaller-aperture lenses, making it suitable for low-light surveillance applications.
Q2: What interface does the lens use?
The lens uses a standard M12×P0.5 threaded interface, making it suitable for compatible M12 camera modules and board cameras.
Q3: Is the lens waterproof?
The YT-6072-H1 is specified with an IP67-rated design. For a complete IP67 camera system, the lens, camera housing, sealing structure, and assembly process should all be properly designed and tested together.
Q4: What applications is this lens mainly designed for?
The YT-6072-H1 is particularly suitable for:
Q5: How can I check whether this lens is compatible with my camera module?
Please provide your image sensor model, sensor size, pixel size, required FOV, lens mounting interface, and available mechanical space. WINTOP can evaluate optical compatibility and recommend a suitable lens.
Request a Sample or Optical Solution
Looking for a F1.6 ultra-wide-angle M12 lens for your CCTV or smart security camera?
Send us your sensor model, FOV requirement, camera dimensions, and application.
WINTOP OPTICS can provide standard lens options as well as customized optical solutions for camera manufacturers and system integrators.
Contact us for samples, technical evaluation, and OEM/ODM lens customization.
