M12 camera lenses

  What Is an M12 Lens? An M12 lens, also known as an S-Mount lens, is a compact optical lens that features a standard M12 × 0.5 threaded mount. Thanks to its lightweight design, small size, and cost-effective integration, the M12 lens has become one of the most widely used optical components in modern embedded vision systems. Unlike traditional C-mount or CS-mount lenses, M12 lenses are designed for compact cameras and embedded devices where space is limited. They are commonly paired with CMOS image sensors and are available in a wide range of focal lengths, fields of view, and aperture options to meet different imaging requirements. Today, M12 lenses are widely used in applications such as robot vision, smart home cameras, automotive cameras, baby monitors, smart doorbells, drones, industrial automation, and intelligent transportation systems. Why Are M12 Lenses So Popular? The popularity of the M12 camera lens comes from its excellent balance between optical performance, compact size, and design flexibility. Compared with larger industrial lenses, M12 lenses offer several important advantages: Compact and lightweight design for embedded cameras Wide selection of focal lengths from ultra-wide-angle to telephoto Compatibility with various CMOS sensors Cost-effective solution for mass production Easy integration into compact electronic devices Available with low-distortion and large-aperture optical designs As AI vision technology continues to expand, manufacturers increasingly choose M12 camera lenses for applications that require reliable image quality without increasing product size. Common Applications of M12 Camera Lenses Thanks to their versatility, M12 camera lenses are used across many intelligent vision systems. Smart Home Baby monitor cameras Smart doorbells Indoor security cameras Pet monitoring cameras Robotics & Automation Robot vision lens solutions AMR and AGV navigation Binocular recognition systems Pick-and-place robotic arms Machine vision guidance Automotive ADAS cameras Surround-view systems Driver monitoring systems Rear-view cameras Intelligent Transportation License plate recognition (LPR) Traffic monitoring Smart parking systems Consumer Electronics AI cameras Drones Smart devices Video conferencing equipment Choosing the correct robot vision lens is especially important for robotic systems because image quality directly affects positioning accuracy, object recognition, and navigation performance. How to Choose the Right M12 Lens Selecting the ideal M12 lens depends on the specific application rather than simply choosing the highest resolution. Key factors to evaluate include: Sensor compatibility Focal length Field of View (FOV) Aperture (F-number) TV distortion Working distance Relative illumination Mechanical dimensions Environmental requirements For example, a baby monitor typically benefits from a wide-angle lens with a large aperture to provide broad coverage and reliable low-light imaging, while a robot vision lens often prioritizes low distortion and accurate optical performance for precise positioning. Working with an experienced optical manufacturer can significantly reduce development time and ensure the lens is optimized for your camera module and application. Why Choose Wintop Optics? At Wintop Optics, we specialize in designing and manufacturing high-quality M12 lenses for a wide range of intelligent vision applications. From smart home products and automotive cameras to robotics and industrial automation, our engineering team develops customized optical solutions that meet the unique requirements of each project. Beyond our product portfolio, Wintop Optics provides comprehensive support throughout the development process, including optical design consultation, rapid prototype development, camera module matching, performance optimization, and reliable mass production. Our experienced engineering team works closely with customers to shorten development cycles while maintaining consistent quality and dependable delivery. Whether you need a standard M12 camera lens or a fully customized robot vision lens, Wintop Optics is committed to helping you build smarter, more reliable vision systems. Contact Wintop Optics today to discuss your next optical project and discover how our customized lens solutions can bring your vision products to life. FAQ 1. What is an M12 lens used for? An M12 lens is widely used in embedded cameras, smart home devices, robot vision systems, automotive cameras, drones, industrial automation, and intelligent transportation applications. 2. What is the difference between an M12 lens and a C-mount lens? An M12 lens uses an M12 × 0.5 threaded mount and is much smaller than a C-mount lens. M12 lenses are ideal for compact embedded devices, while C-mount lenses are typically used in high-end industrial machine vision systems. 3. Can an M12 lens be used for robot vision? Yes. Many robot vision lens solutions are based on the M12 mount because of their compact size, wide-angle options, and compatibility with embedded vision cameras used in robots, AMRs, and robotic arms. 4. How do I choose the right M12 camera lens? Consider your sensor size, focal length, field of view, working distance, aperture, distortion requirements, and lighting conditions. Working with an experienced optical manufacturer can help ensure the lens matches your specific application. 5. Does Wintop Optics provide customized M12 lens solutions? Yes. Wintop Optics offers customized M12 lens design, optical optimization, prototype support, camera module integration, and mass production services for applications including smart home, robotics, automotive, AI vision, and industrial imaging.

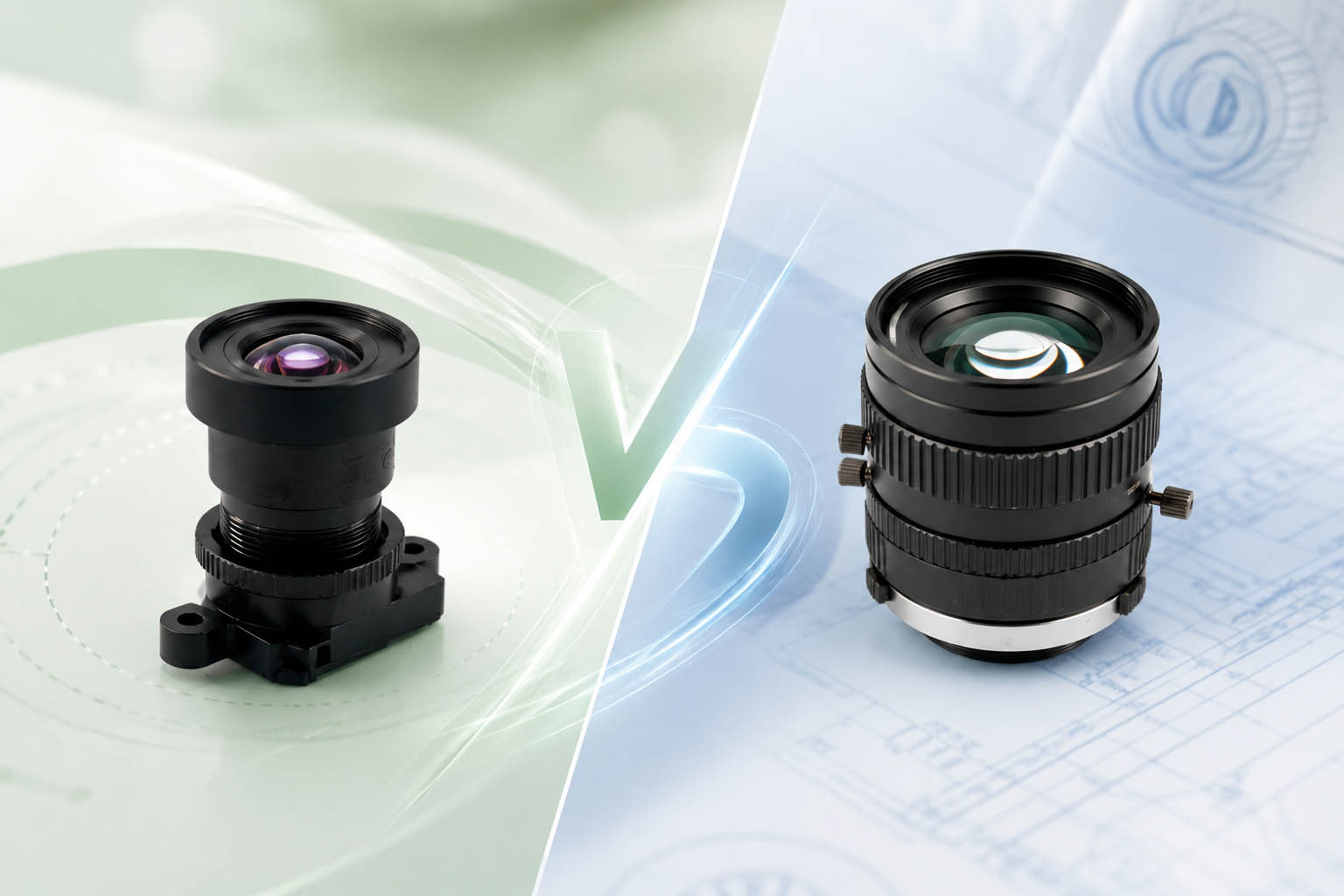

M12 Lens vs CS Mount Lens: Understanding the Basics When selecting a camera lens for an embedded vision or surveillance system, one of the most common questions is M12 Lens vs CS Mount Lens: which one is the better choice? Both lens types are widely used in machine vision and security applications, but they are designed for different camera architectures and performance requirements. An M12 lens, also known as an S-Mount lens, features an M12 × 0.5 threaded mount and is ideal for compact camera modules. In contrast, a CS mount lens uses a 1-inch thread with a 12.5 mm flange focal distance, making it suitable for larger image sensors and professional security cameras. Understanding these structural differences is the first step toward selecting the right optical solution. Key Differences Between M12 Lenses and CS Mount Lenses Although both lens types capture high-quality images, they are optimized for different applications. M12 Lens Compact and lightweight design Ideal for embedded vision devices Lower manufacturing cost Wide range of focal lengths and viewing angles Perfect for high-volume consumer electronics CS Mount Lens Larger optical structure Better suited for larger image sensors Interchangeable lens system Higher compatibility with professional CCTV cameras Greater flexibility for long focal length applications For products where space, weight, and cost are critical, the M12 camera lens is often the preferred solution. On the other hand, if the application requires interchangeable optics or larger sensors, a CS mount lens may provide additional flexibility. Which Applications Use M12 Lenses and CS Mount Lenses? Choosing between an M12 lens and a CS mount lens largely depends on the final application. Typical M12 Lens Applications Smart home cameras Baby monitors Smart doorbells Robot vision systems AMR and AGV navigation AI cameras Automotive ADAS cameras Drone cameras Embedded vision devices Typical CS Mount Lens Applications Professional CCTV systems Traffic surveillance Industrial inspection equipment Video conferencing cameras Laboratory imaging systems Because of their compact size and excellent optical performance, M12 camera lenses have become the standard choice for modern AI vision products, while CS mount lenses remain popular in applications requiring interchangeable optics and larger imaging formats. How to Choose the Right Lens for Your Project There is no universal "better" lens—only the lens that best matches your application. If your product requires a compact design, lightweight construction, and seamless integration into embedded devices, an M12 lens is usually the ideal choice. It provides excellent imaging performance while helping reduce overall product size and manufacturing costs. If your project demands larger sensors, interchangeable optics, or long-distance monitoring, a CS mount lens may be the better option. When comparing M12 Lens vs CS Mount Lens, engineers should evaluate: Camera sensor size Field of view (FOV) Working distance Lens dimensions Optical distortion Low-light performance Mechanical integration Cost and production volume Selecting the right optical solution at the beginning of a project can improve image quality, shorten development time, and reduce overall system costs. Why Choose Wintop Optics for Your Optical Solutions? At Wintop Optics, we specialize in the research, development, and manufacturing of high-performance M12 camera lenses for intelligent vision systems. Our products are widely used in robotics, automotive cameras, smart home devices, AI vision, industrial automation, and embedded imaging applications. Beyond delivering reliable optical products, Wintop Optics supports customers throughout the entire development process. Our experienced engineering team provides optical design consultation, camera module matching, prototype development, performance optimization, and stable mass production. We also offer responsive technical support, flexible customization, and dependable global delivery to help customers accelerate product development and reduce project risk. Whether you are developing a new M12 camera lens solution or evaluating M12 Lens vs CS Mount Lens for your next project, Wintop Optics is ready to provide the expertise and customized optical solutions you need. Contact Wintop Optics today to discuss your project and discover the right lens solution for your intelligent vision system. FAQ 1. What is the main difference between an M12 lens and a CS mount lens? An M12 lens uses an M12 × 0.5 threaded mount and is designed for compact embedded cameras, while a CS mount lens has a larger threaded mount and is typically used with larger sensors and professional surveillance cameras. 2. Which is better, an M12 lens or a CS mount lens? Neither is universally better. An M12 lens is ideal for compact AI vision products and embedded systems, whereas a CS mount lens is better suited for applications requiring interchangeable optics or larger image sensors. 3. Can an M12 camera lens be used for robot vision? Yes. Many robot vision systems, AMRs, AGVs, and AI cameras use M12 camera lenses because they offer compact size, wide viewing angles, and excellent compatibility with embedded camera modules. 4. Are CS mount lenses interchangeable? Yes. One of the biggest advantages of a CS mount lens is that it can be easily replaced with another compatible CS mount lens to meet different focal length or application requirements. 5. Does Wintop Optics provide customized M12 lens solutions? Yes. Wintop Optics offers customized M12 optical solutions, including lens design, optical optimization, prototype support, camera module integration, engineering consultation, and reliable mass production for customers worldwide.
